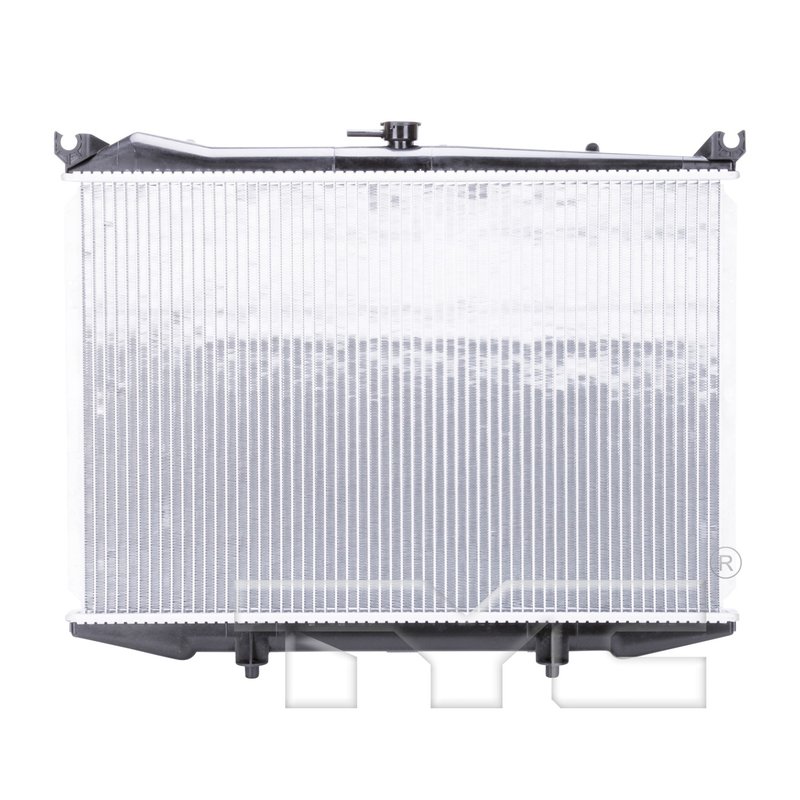

TYC 314 Radiator

Overview of the TYC Radiator 314 for Nissan Vehicles

The TYC Radiator part number 314 is engineered for reliable cooling performance in Nissan D21, Pathfinder, and Pickup models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation and transmission temperature management.

• Core material constructed from aluminum for effective heat dissipation
• Includes a concentric transmission oil cooler for enhanced transmission cooling
• Downflow flow configuration with 1.02-inch core thickness
• Core dimensions: 25.04 inches height, 16.93 inches length
• Hose clamp inlet and outlet connections with 1.38-inch diameter
• Single-row tube design with 57 total tubes and 73 fins per 4 inches
• Compatible with Nissan D21, Pathfinder, and Pickup models

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. This product line emphasizes durable materials and precise fitment, ensuring compatibility with specific vehicle models such as the Nissan D21, Pathfinder, and Pickup. The TYC Radiator 314 exemplifies this approach by integrating a concentric transmission oil cooler and maintaining a robust aluminum core design.

Technical Specifications and Features

This radiator features a 1.99 by 26.54-inch top and bottom header, supporting a sturdy frame for the cooling core. The core itself measures 25.04 inches in height, 16.93 inches in length, and 1.02 inches in thickness, providing ample surface area for heat exchange. The fin count is 73 per 4 inches with a fin wave height of 0.35 inches and a pitch of 2.8, optimizing airflow and cooling efficiency. The downflow configuration directs coolant flow from top to bottom, compatible with the original equipment setup on Nissan D21, Pathfinder, and Pickup vehicles. Both inlet and outlet connections use hose clamps with a diameter of 1.38 inches, facilitating straightforward installation.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Nissan D21, Pathfinder, and Pickup
• Improves transmission cooling with integrated concentric oil cooler
• Addresses overheating issues caused by inefficient or clogged radiators
• Restores proper coolant flow and engine temperature regulation
• Compatible alternative for vehicles requiring part number 2077

Installation Notes and Tips

Ensure the radiator connections match the hose clamp type with 1.38-inch diameter for both inlet and outlet. Verify the downflow configuration aligns with the vehicle’s cooling system layout. Properly secure the radiator to avoid leaks and maintain optimal coolant flow. It is recommended to inspect and replace any worn hoses or clamps during installation to ensure a secure fit.

Quality Assurance and Warranty

The TYC Radiator 314 is manufactured to meet industry standards for durability and performance. Constructed with an aluminum core and integrated transmission oil cooler, it provides reliable cooling for Nissan D21, Pathfinder, and Pickup models. Warranty details should be confirmed with the distributor or retailer, as they may vary by region.
