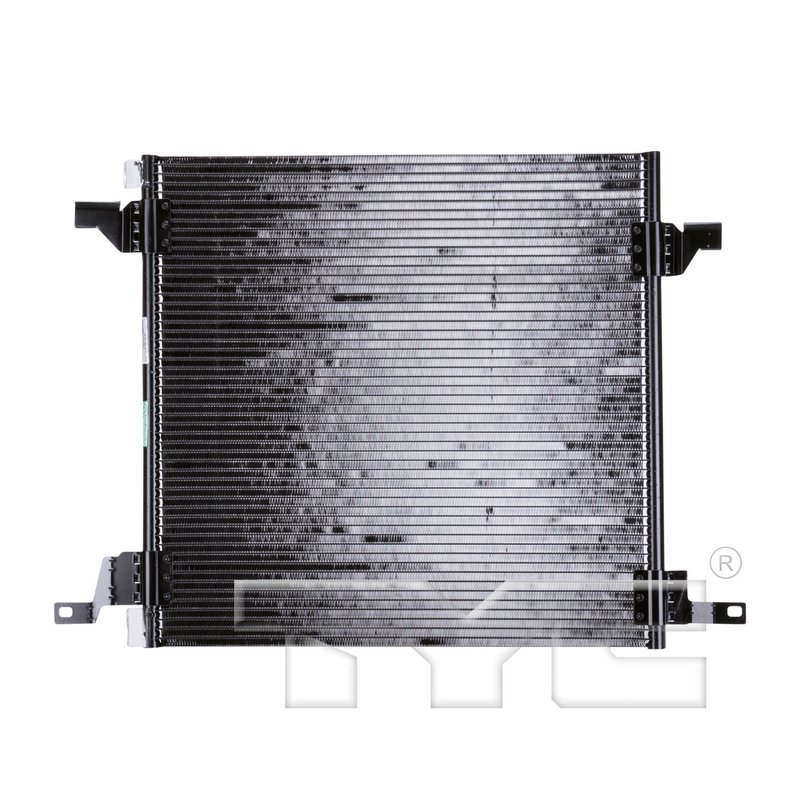

TYC 3360 A/C Condenser

TYC 3360 A/C Condenser for Mercedes-Benz ML-Class

TYC 3360 is a parallel flow A/C condenser built for Mercedes-Benz ML-Class applications that use block fittings and the listed OE-style condenser layout. It is a direct-fit HVAC replacement for restoring refrigerant heat exchange performance in the 1998-2005 Mercedes-Benz ML320, ML430, ML500, and ML350 platform coverage.

Key Features

• Parallel Flow Condenser (PFC) configuration for efficient refrigerant cooling
• Core size: 22 1/8" x 20 7/8" x 5/8"
• Core height: 22.13 in; core length: 20.88 in; core thickness: 0.63 in
• Block fitting inlet and outlet connections
• OE-style fitment for Mercedes-Benz ML320, ML430, ML500, and ML350 applications
• TYC part number 3360 for catalog and cross-reference use

Product Details

This TYC 3360 A/C condenser is designed around the listed core dimensions and parallel flow construction to match the factory-style condenser layout used on select Mercedes-Benz ML-Class vehicles. The block fitting inlet and outlet help maintain the correct connection style for the vehicle’s air conditioning plumbing, while the compact core thickness supports proper packaging in the front-end HVAC stack. This part cross-references Mercedes-Benz 163 830 01 70 for the same application.

Vehicle Fitment

• Fits 2003-2005 Mercedes-Benz ML350, N/A, Configuration: Parallel Flow Condenser (PFC) - A/C Condenser
• Fits 2002-2005 Mercedes-Benz ML500, N/A, Configuration: Parallel Flow Condenser (PFC) - A/C Condenser
• Fits 1998-2003 Mercedes-Benz ML320, N/A, Configuration: Parallel Flow Condenser (PFC) - A/C Condenser
• Fits 1998-2001 Mercedes-Benz ML430, N/A, Configuration: Parallel Flow Condenser (PFC) - A/C Condenser

What It Helps Address

• Weak A/C cooling caused by a leaking or restricted condenser
• Refrigerant loss from corrosion or impact damage
• Reduced heat transfer from a damaged condenser core
• Air conditioning performance issues on Mercedes-Benz ML320, ML430, ML500, and ML350 models

Installation Notes and Tips

Verify the vehicle uses the listed parallel flow condenser layout and block fitting connections before installation. Compare the core dimensions and mounting points against the original unit to confirm proper alignment in the front HVAC assembly. After installation, evacuate and recharge the system according to factory service procedures and inspect for leaks at all connections.

Quality Assurance

TYC manufactures replacement HVAC components to OE-style specifications for fit and function. Part number 3360 is cataloged against multiple aftermarket and OE cross-references, including Mercedes-Benz 163 830 01 70, for application matching.
