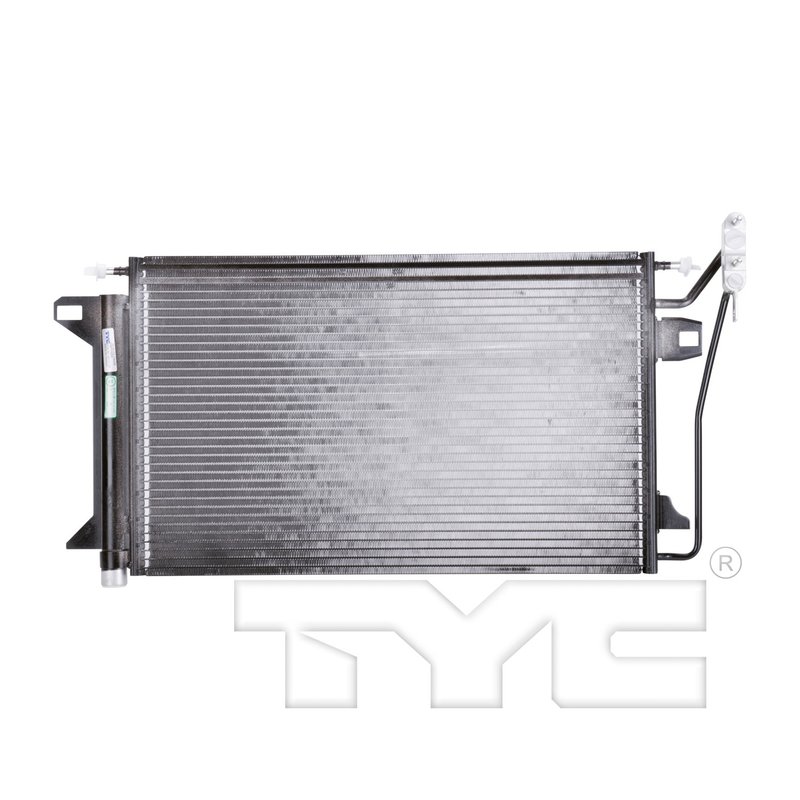

TYC 3390 A/C Condenser

Overview of TYC 3390 A/C Condenser for Ford Fusion and Lincoln MKZ

The TYC 3390 A/C condenser is designed specifically for select Ford, Lincoln, and Mercury models, including the Fusion, Milan, MKZ, and Zephyr. This parallel flow condenser integrates a built-in oil cooler and receiver/dryer to support efficient air conditioning system performance.

• Parallel flow configuration for optimized heat exchange
• Built-in oil cooler to maintain compressor lubrication
• Integrated receiver/dryer for moisture and debris removal
• Core dimensions: 14.6 inches height, 24 inches length, 0.63 inches thickness
• Inlet diameter of 0.46 inches with block/spring lock fitting
• Outlet diameter of 0.34 inches with block/spring lock fitting

Detailed Product Description

The TYC 3390 A/C condenser features a parallel flow design that enhances refrigerant cooling efficiency by allowing multiple refrigerant channels to flow simultaneously. This design improves heat dissipation, which is critical for maintaining optimal air conditioning performance in vehicles such as the Ford Fusion, Lincoln MKZ, Mercury Milan, and Zephyr. The condenser includes a built-in oil cooler, which helps regulate compressor oil temperature, extending compressor life and ensuring consistent lubrication. Additionally, the integrated receiver/dryer removes moisture and contaminants from the refrigerant, protecting the A/C system from corrosion and blockages.

With core dimensions of 14.6 inches in height, 24 inches in length, and 0.63 inches in thickness, this condenser fits precisely within the HVAC system of the specified vehicles. The inlet and outlet fittings use a block/spring lock design, with diameters of 0.46 inches and 0.34 inches respectively, ensuring secure and leak-free connections.

Common Applications and Issues Addressed

• Replacement for damaged or leaking A/C condensers in Ford Fusion, Lincoln MKZ, Mercury Milan, and Zephyr
• Restores proper refrigerant flow and cooling efficiency
• Prevents compressor damage by maintaining oil cooling
• Eliminates moisture and debris buildup in the A/C system
• Improves overall air conditioning system reliability and performance

Installation Notes and Tips

When installing the TYC 3390 A/C condenser, ensure the vehicle’s A/C system is fully evacuated and depressurized before removal of the old condenser. Verify that the block/spring lock fittings on the inlet and outlet match the vehicle’s lines for a proper seal. Inspect and replace any worn O-rings or seals to prevent leaks. After installation, recharge the A/C system with the correct refrigerant type and quantity as specified by the vehicle manufacturer.

Quality Assurance and Warranty

TYC parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The 3390 A/C condenser undergoes rigorous quality control to ensure fitment accuracy and functional integrity. Please refer to TYC’s warranty policy for specific coverage details.
