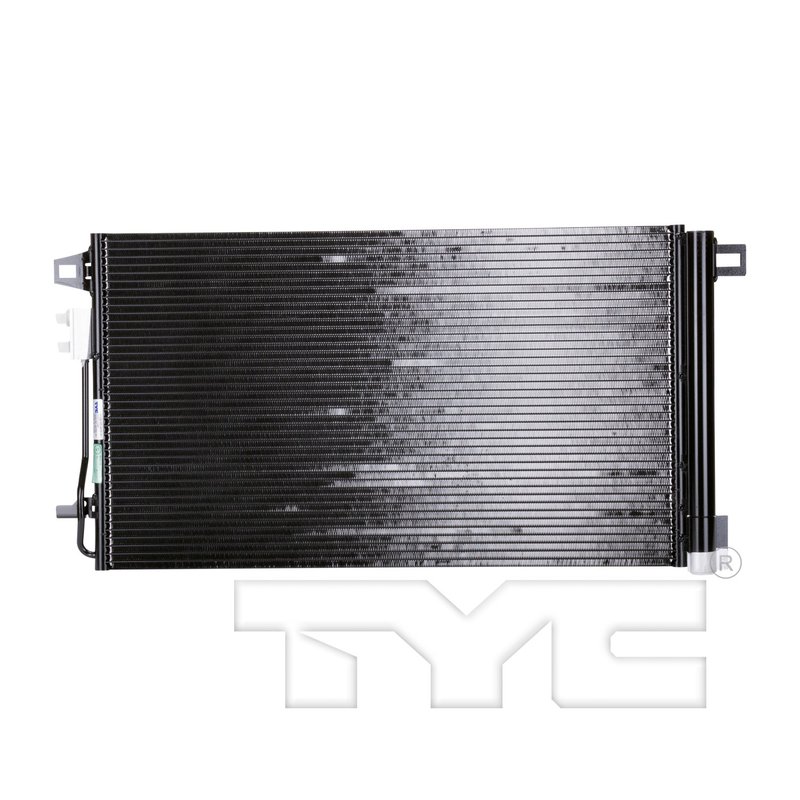

TYC 3649 A/C Condenser

Overview of TYC A/C Condenser 3649 for Buick, Chevrolet, GMC, Saturn

The TYC A/C Condenser part number 3649 is designed specifically for select Buick, Chevrolet, GMC, and Saturn models. Engineered with a parallel flow configuration and a built-in receiver/dryer, this condenser supports efficient cooling performance for vehicles like the Acadia, Enclave, Outlook, and Traverse.

• Parallel flow configuration for optimized heat dissipation
• Built-in receiver/dryer to maintain system cleanliness and moisture control
• Core dimensions: 16.54 inches height, 29.06 inches length, 0.63 inches thickness
• Inlet diameter of 0.46 inches with block fitting design
• Outlet diameter of 0.34 inches with block fitting design

Detailed Product Description

This TYC A/C Condenser 3649 features a parallel flow design that enhances refrigerant flow and heat exchange efficiency. The integrated receiver/dryer helps to filter contaminants and remove moisture from the A/C system, which is critical for maintaining optimal air conditioning performance. The condenser core measures 16.54 inches in height, 29.06 inches in length, and 0.63 inches in thickness, providing a robust surface area for effective cooling.

Both the inlet and outlet fittings utilize a block design, with diameters of 0.46 inches and 0.34 inches respectively, ensuring secure and precise connections within the HVAC system. This condenser is compatible with multiple GM vehicles, including the Buick Enclave and Chevrolet Traverse, making it a reliable replacement part for maintaining factory specifications.

Common Applications and Issues Addressed

• Replacement for damaged or leaking A/C condensers in Buick Acadia and GMC Acadia Limited
• Restores proper refrigerant flow and cooling efficiency in Chevrolet Outlook and Saturn models
• Eliminates moisture and contaminants from the A/C system with built-in receiver/dryer
• Prevents overheating and compressor damage caused by inefficient heat exchange
• Addresses reduced cooling performance due to clogged or corroded condensers

Installation Notes and Tips

When installing the TYC A/C Condenser 3649, ensure the system is fully evacuated and flushed to remove any debris or old refrigerant oil. Verify that the block fitting connections for both inlet and outlet are properly sealed to prevent leaks. It is recommended to replace the receiver/dryer if it is not integrated or if the system has been open for an extended period. Proper torque specifications should be followed to avoid damage to the condenser or fittings.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM standards for fit, form, and function. The part number 3649 undergoes rigorous quality control to ensure durability and reliable performance in compatible Buick, Chevrolet, GMC, and Saturn vehicles. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
