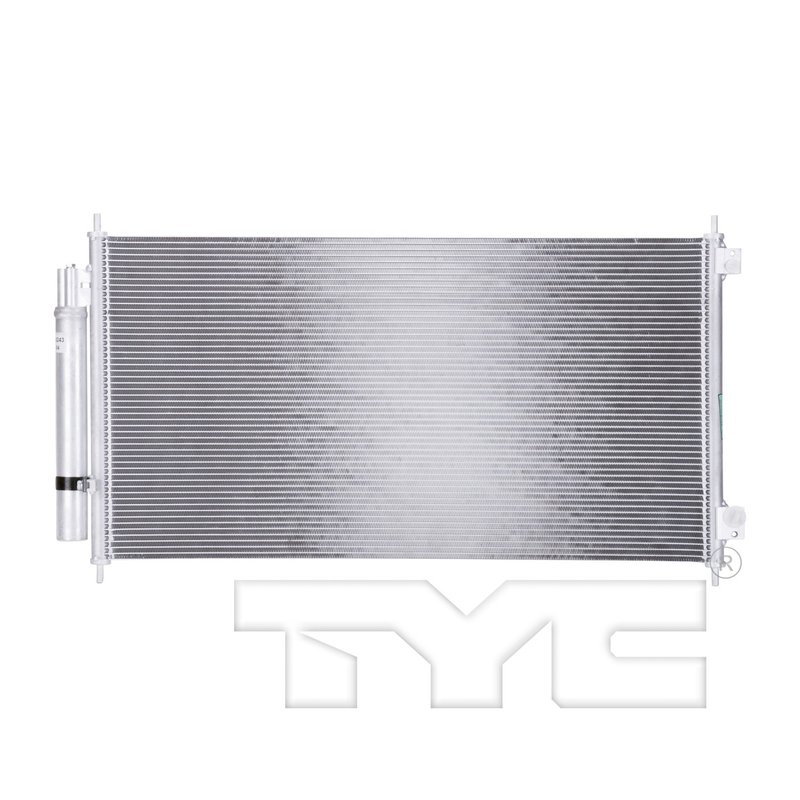

TYC 3669 A/C Condenser

Overview of TYC A/C Condenser for Honda Accord and Crosstour

The TYC A/C Condenser part number 3669 is designed specifically for Honda Accord, Accord Crosstour, and Crosstour models. Featuring a parallel flow configuration and built-in receiver/dryer, this condenser supports efficient air conditioning system performance.

• Parallel flow configuration for optimized cooling efficiency
• Built-in receiver/dryer to maintain system cleanliness and moisture control
• Core dimensions: 14 inches height, 27.3 inches length, 0.63 inches thickness
• Inlet diameter of 0.61 inches with block fitting design
• Outlet diameter of 0.4 inches with block fitting design
• Compatible with Honda Accord, Accord Crosstour, and Crosstour models

Detailed Product Description

The TYC 3669 A/C Condenser is engineered with a parallel flow design that enhances heat dissipation and improves overall air conditioning system efficiency. Its built-in receiver/dryer helps to filter contaminants and remove moisture from the refrigerant, protecting the system from corrosion and damage. The condenser core measures 14 inches in height, 27.3 inches in length, and 0.63 inches in thickness, providing a robust surface area for effective cooling. Both the inlet and outlet fittings use a block design, with diameters of 0.61 inches and 0.4 inches respectively, ensuring secure and leak-free connections within the HVAC system.

Common Applications and Issues Addressed

• Replacement for faulty or leaking A/C condensers in Honda Accord and Crosstour models
• Resolves reduced cooling performance due to clogged or damaged condenser cores
• Addresses refrigerant leaks caused by corrosion or physical damage
• Helps restore proper refrigerant flow and pressure in the A/C system
• Prevents moisture contamination with the integrated receiver/dryer

Installation Notes and Tips

• Ensure compatibility with Honda Accord, Accord Crosstour, and Crosstour before installation
• Inspect and replace any damaged fittings or hoses during installation
• Properly evacuate and recharge the A/C system following condenser replacement
• Check for leaks and system pressure to confirm correct installation
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty Information

TYC A/C condensers undergo rigorous quality control to meet OEM standards for fit, form, and function. The part number 3669 is manufactured to provide reliable performance and durability in Honda Accord and Crosstour vehicles. Warranty coverage details should be confirmed with the distributor or installer, as terms may vary.
