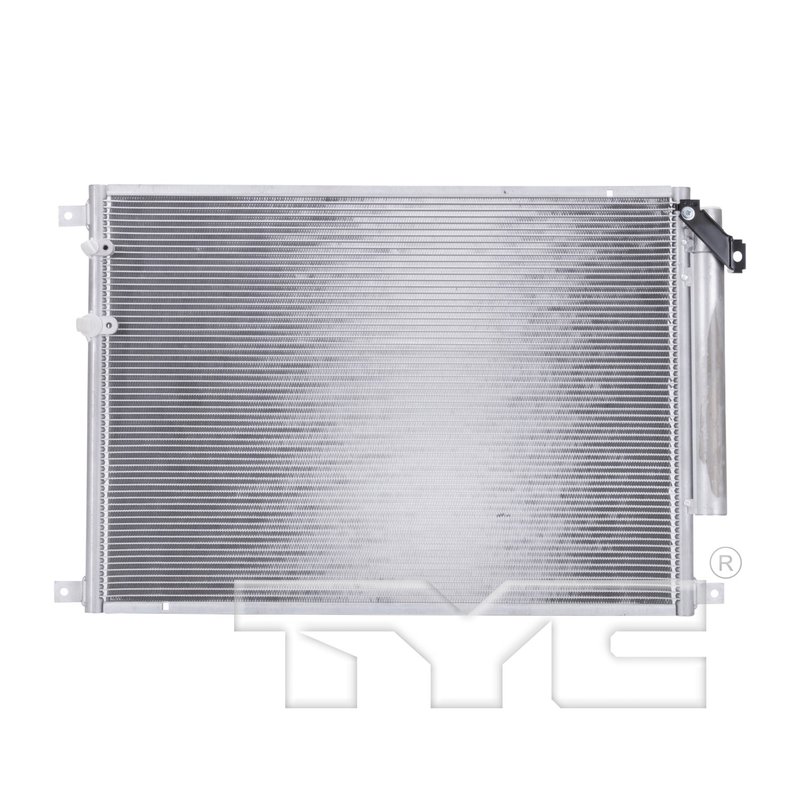

TYC 3688 A/C Condenser

Reliable A/C Condenser for Cadillac CTS

The TYC 3688 A/C condenser is designed specifically for Cadillac CTS models, providing efficient cooling performance with a parallel flow condenser configuration. This unit includes a receiver/drier to help maintain optimal system operation.

Key Features of TYC 3688 A/C Condenser

• Parallel flow condenser (PFC) design for improved heat dissipation
• Includes receiver/drier for moisture and debris control
• Core dimensions: 24 5/8" height x 17 1/2" length x 5/8" thickness
• Core height of 24.63 inches and length of 17.50 inches
• Fin height measures 6mm for effective airflow
• Inlet diameter of 15mm and outlet diameter of 10mm for precise fitment

Detailed Product Description

The TYC 3688 A/C condenser is engineered to meet the cooling demands of Cadillac CTS vehicles. Featuring a parallel flow condenser configuration, it enhances refrigerant flow and heat exchange efficiency. The included receiver/drier helps to filter out moisture and contaminants, protecting the A/C system components. With core dimensions of 24 5/8" by 17 1/2" and a thickness of 5/8", this condenser fits precisely within the HVAC system of the Cadillac CTS. The fin height of 6mm supports optimal airflow, while the inlet and outlet sizes (15mm and 10mm respectively) ensure compatibility with factory A/C lines.

Common Applications and Issues Addressed

• Replacement for leaking or damaged A/C condensers in Cadillac CTS
• Restores proper refrigerant flow and cooling efficiency
• Eliminates reduced airflow caused by clogged or corroded condenser fins
• Prevents moisture contamination with integrated receiver/drier
• Helps resolve A/C system overheating and inconsistent cabin cooling

Installation Notes and Tips

Ensure the vehicle is properly depressurized before removing the old condenser. Verify the inlet and outlet hose diameters match the 15mm and 10mm sizes of this condenser. Handle the condenser carefully to avoid damaging the fins. It is recommended to replace the receiver/drier along with the condenser to maintain system integrity. After installation, evacuate and recharge the A/C system according to manufacturer specifications.

Quality Assurance and Warranty

TYC parts are manufactured to meet or exceed OEM standards for fit and function. The TYC 3688 A/C condenser undergoes rigorous quality control to ensure durability and reliable performance in Cadillac CTS vehicles. Warranty coverage details should be confirmed with the distributor or retailer at the time of purchase.
