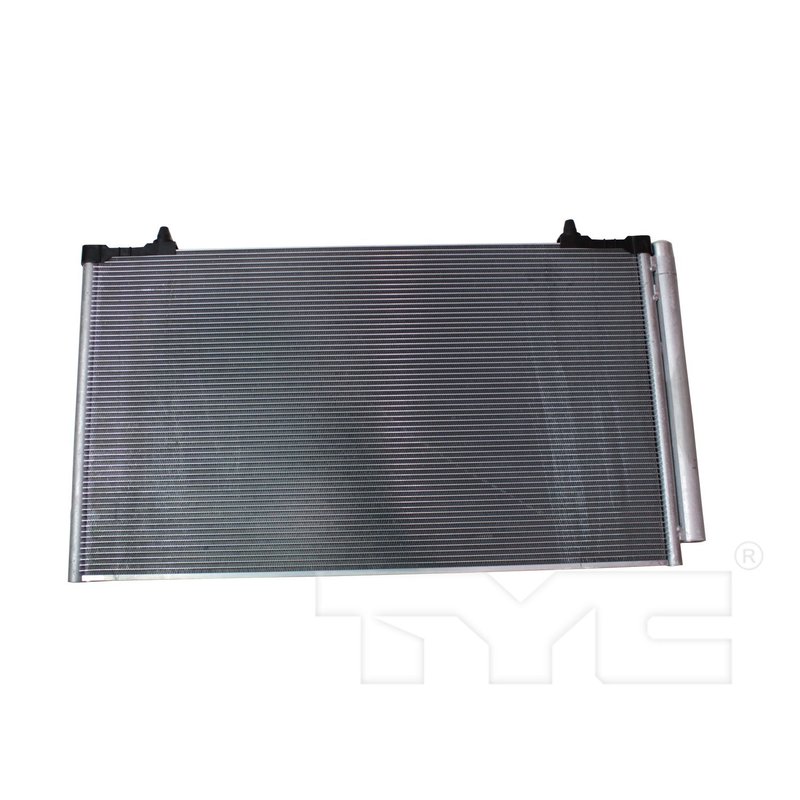

TYC 3869 A/C Condenser

Overview of TYC A/C Condenser 3869 for Lexus RX350 and Toyota Sienna

The TYC A/C Condenser part number 3869 is designed specifically for select Lexus and Toyota models, including the RX350 and Sienna. This condenser features a parallel flow configuration and includes a built-in receiver/dryer to support efficient air conditioning system performance.

• Parallel flow configuration for optimized refrigerant flow
• Built-in receiver/dryer for enhanced system reliability
• Core dimensions: 16.65 inches height, 29.3 inches length, 0.63 inches thickness
• Inlet diameter of 0.61 inches with block fitting design
• Outlet diameter of 0.4 inches with block fitting design
• Compatible with Lexus RX350 and Toyota Sienna models

Detailed Product Description

The TYC A/C Condenser 3869 is engineered to meet the specific cooling requirements of the Lexus RX350 and Toyota Sienna. Its parallel flow design improves heat dissipation by allowing refrigerant to flow through multiple parallel channels, which enhances cooling efficiency and reduces pressure drop. The integrated receiver/dryer helps maintain system integrity by filtering moisture and contaminants, preventing damage to the A/C components.

With core dimensions of 16.65 inches in height, 29.3 inches in length, and 0.63 inches in thickness, this condenser fits precisely within the designated space of the vehicle’s HVAC system. The inlet and outlet fittings use a block design, with diameters of 0.61 inches and 0.4 inches respectively, ensuring secure and leak-free connections to the refrigerant lines.

Common Applications and Issues Addressed

• Replacement for leaking or damaged A/C condensers in Lexus RX350 and Toyota Sienna
• Restores proper refrigerant flow and cooling efficiency
• Eliminates issues related to moisture contamination with built-in receiver/dryer
• Helps resolve overheating of the A/C system due to inefficient heat exchange
• Prevents compressor damage caused by refrigerant contamination or pressure loss

Installation Notes and Tips

When installing the TYC A/C Condenser 3869, ensure the vehicle is compatible with this part number and model fitment. Proper evacuation and recharging of the A/C system are necessary to maintain optimal performance. Inspect all fittings and seals for leaks during installation, and verify that the block fitting design matches the vehicle’s refrigerant line connections. Professional installation is recommended to ensure system integrity and safety.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM specifications for fit, form, and function. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
