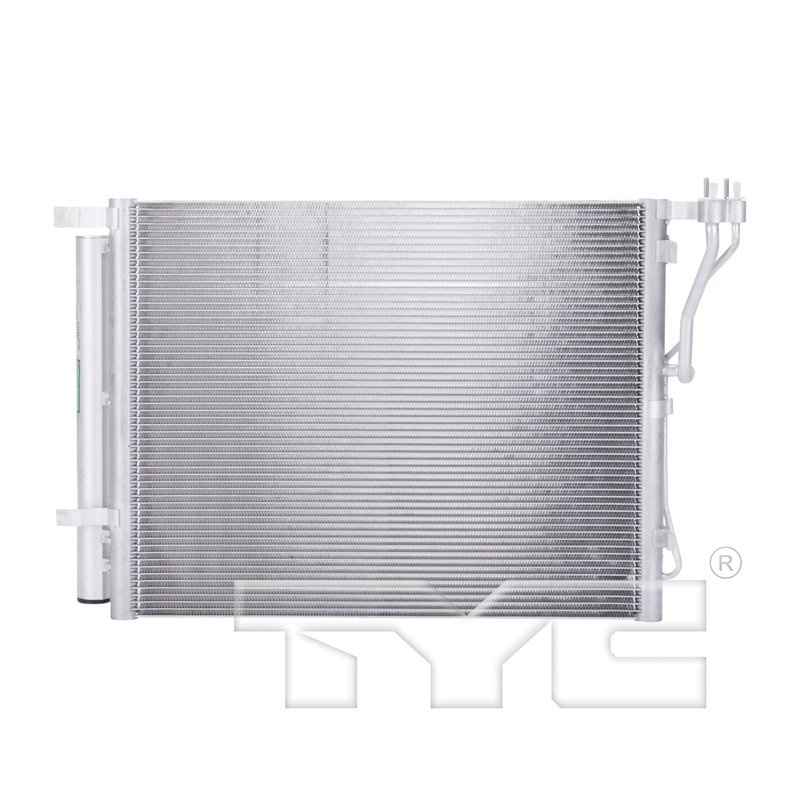

TYC 3985 A/C Condenser

Overview of TYC 3985 A/C Condenser for Hyundai and Kia

The TYC 3985 A/C condenser is designed specifically for Hyundai Optima and Sonata models, providing reliable cooling performance. Featuring a parallel flow condenser configuration, this part ensures efficient heat exchange to maintain optimal air conditioning function.

• Parallel flow condenser (PFC) design for improved cooling efficiency
• Core dimensions: 20.50 inches height x 15.38 inches length x 0.88 inches thickness
• Inlet size: 1/2 inch diameter
• Outlet size: 5/16 inch diameter
• Compatible with Hyundai Optima and Sonata, as well as select Kia models

Detailed Specifications and Features

The TYC 3985 A/C condenser features a core size of 20 1/2" x 15 3/8" x 7/8", optimized for parallel flow operation. This configuration allows refrigerant to flow through multiple parallel channels, enhancing heat dissipation and improving overall air conditioning system efficiency. The inlet and outlet sizes of 1/2 inch and 5/16 inch diameter respectively ensure proper refrigerant flow and system compatibility. These precise dimensions make the condenser a direct replacement for factory-installed units in Hyundai Optima and Sonata vehicles, as well as compatible Kia models.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in Hyundai Optima and Sonata
• Addresses reduced cooling performance due to clogged or damaged condenser cores
• Solves refrigerant leaks caused by corrosion or physical damage
• Restores proper refrigerant flow and pressure in the A/C system
• Prevents overheating of the air conditioning system components

Installation Notes and Tips

Installation of the TYC 3985 A/C condenser should be performed by a qualified technician familiar with Hyundai and Kia air conditioning systems. Ensure the system is fully evacuated and recharged with the correct refrigerant type and amount after installation. Inspect and replace any worn or damaged O-rings and seals to prevent leaks. Verify that the inlet and outlet connections match the specified diameters for a secure fit.

Quality Assurance and Warranty Information

TYC parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The 3985 A/C condenser undergoes rigorous quality control testing to maintain consistent standards. Warranty coverage details should be confirmed with the distributor or installer, as terms may vary.
