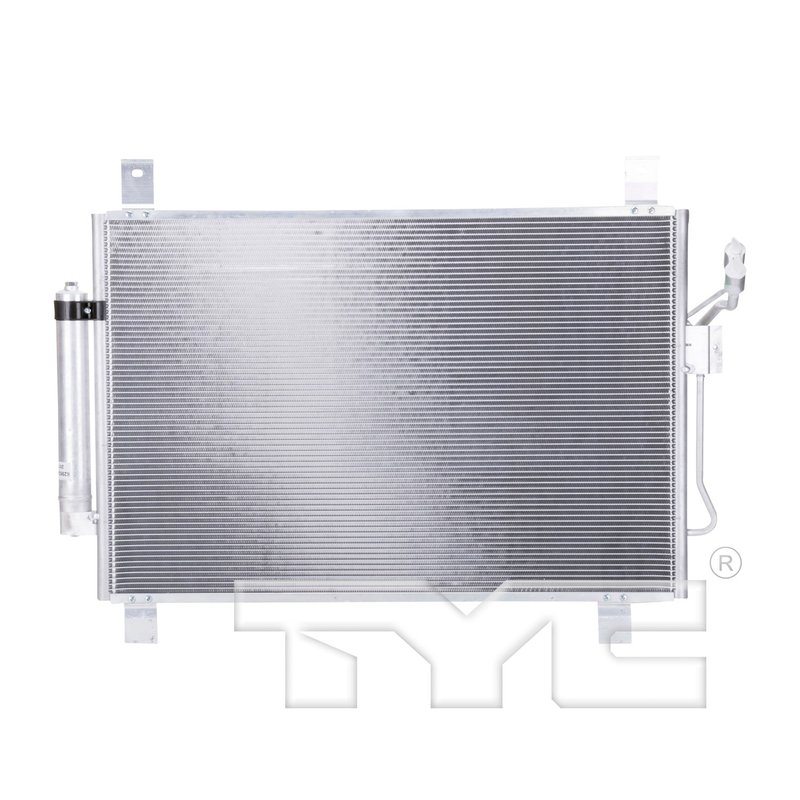

TYC 4201 A/C Condenser - Front

Overview of TYC A/C Condenser 4201 for Infiniti and Nissan

The TYC A/C Condenser part number 4201 is designed specifically for select Infiniti and Nissan models, including the JX35, Pathfinder, and QX60. This parallel flow condenser (PFC) includes a receiver/drier and is engineered to meet the cooling demands of your vehicle's HVAC system.

• Parallel flow condenser configuration for efficient heat exchange
• Includes receiver/drier for moisture and debris removal
• Core dimensions: 28 3/16" height x 18 7/8" length x 5/8" thickness
• Fin height of 5mm for optimized airflow
• Inlet size: 5/8" diameter; outlet size: 3/8" diameter

Technical Details and Specifications

The TYC 4201 A/C condenser features a parallel flow design that enhances refrigerant flow and heat dissipation, improving overall air conditioning performance. The core measures 28.19 inches in height and 18.88 inches in length, with a thickness of 0.63 inches, providing a robust surface area for effective cooling. The included receiver/drier helps maintain system integrity by filtering moisture and contaminants. The fin height of 5mm supports efficient airflow through the condenser, while the inlet and outlet sizes (5/8" and 3/8" diameter respectively) ensure compatibility with the vehicle's existing A/C lines.

Compatible Vehicles and Applications

This A/C condenser is compatible with the following vehicles:

• Infiniti JX35
• Infiniti QX60
• Nissan Pathfinder

Part number 4201 is designed to replace the factory condenser in these models, restoring proper air conditioning function and system reliability.

Common Issues Addressed by TYC A/C Condenser 4201

• Reduced cooling efficiency due to condenser leaks or blockages
• Moisture contamination causing system corrosion or freeze-ups
• Damaged or clogged condenser fins reducing airflow
• Failure of the receiver/drier leading to refrigerant contamination
• Overheating of the A/C system under heavy load or high ambient temperatures

Installation Notes and Tips

When installing the TYC 4201 A/C condenser, ensure the system is properly evacuated and recharged by a certified technician. Verify that the inlet and outlet connections (5/8" and 3/8" diameter) match the vehicle’s A/C lines. Inspect and replace any worn or damaged hoses and seals to prevent leaks. Properly mount the condenser to avoid vibration and damage during operation.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM specifications for fit, form, and function. The part number 4201 undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, TYC typically offers a limited warranty covering defects in materials and workmanship.
