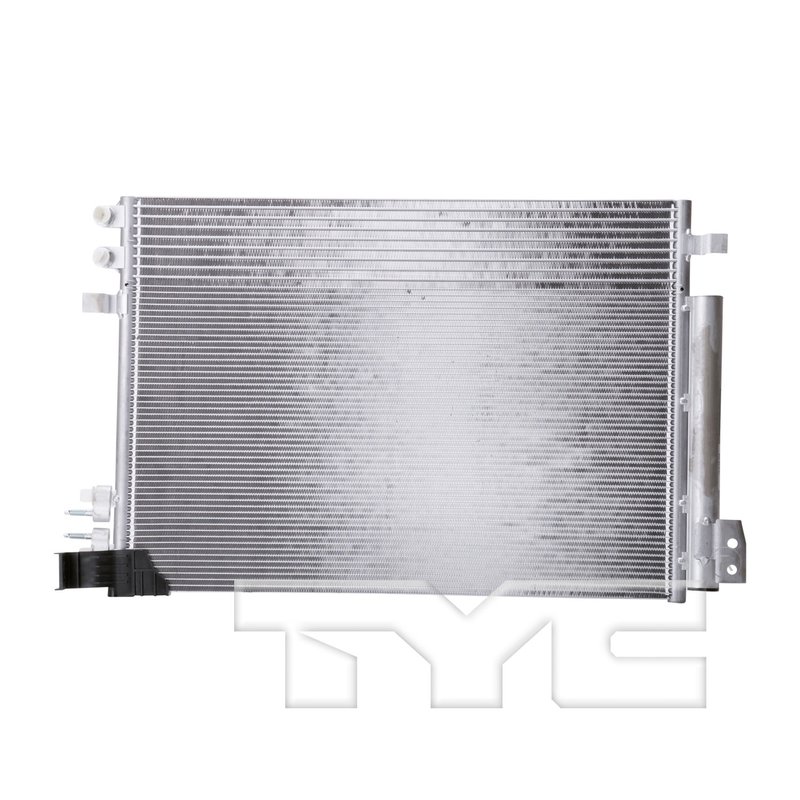

TYC 4224 A/C Condenser

Overview of TYC A/C Condenser 4224 for Cadillac and Chevrolet

The TYC A/C Condenser part number 4224 is designed specifically for select Cadillac and Chevrolet models, including the ATS, Camaro, and CTS. This parallel flow condenser (PFC) features a receiver/drier included for enhanced system performance and reliability.

• Parallel flow condenser configuration for efficient cooling
• Core dimensions: 24 1/2" height x 17" length x 5/8" thickness
• Core thickness of 0.63 inches with 5mm fin height
• Inlet and outlet diameter of 7/16 inches
• Includes receiver/drier for moisture and debris control
• Compatible with 2013-2019 Cadillac ATS, 2014-2019 Cadillac CTS, and 2016-2021 Chevrolet Camaro models

Detailed Product Description

The TYC 4224 A/C condenser is engineered with a parallel flow condenser (PFC) design, which improves heat dissipation and airflow efficiency compared to traditional tube-and-fin condensers. Its core size of 24 1/2" by 17" by 5/8" provides ample surface area to cool refrigerant effectively. The 5mm fin height and 0.63-inch core thickness contribute to optimal thermal exchange, ensuring your vehicle's air conditioning system maintains proper operating temperatures.

This condenser includes a receiver/drier component, which is essential for removing moisture and contaminants from the refrigerant, helping to protect the A/C system from corrosion and damage. The inlet and outlet ports both measure 7/16 inches in diameter, matching OEM specifications for a direct fit installation.

Compatible Vehicles and Applications

• 2013-2019 Cadillac ATS with heavy-duty cooling and thermal expansion valve (TOC)
• 2014-2019 Cadillac CTS with heavy-duty cooling and TOC
• 2016-2021 Chevrolet Camaro with standard duty cooling and TOC

Common Issues Addressed by This A/C Condenser

• Reduced cooling efficiency due to clogged or damaged condenser fins
• Leaks or refrigerant loss from cracked or corroded condenser core
• Moisture contamination causing system corrosion or compressor failure
• Overheating of the A/C system under heavy-duty conditions
• Incompatibility or improper fit with OEM components

Installation Notes and Tips

Ensure the vehicle’s A/C system is properly evacuated and recharged by a certified technician after condenser replacement. Verify that the inlet and outlet connections match the 7/16-inch diameter fittings on the condenser. Inspect the receiver/drier for any signs of damage or contamination before installation. Follow manufacturer torque specifications and safety procedures during installation.

Quality Assurance and Warranty

TYC parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 4224 A/C condenser undergoes rigorous quality control to ensure durability and performance. Warranty coverage details should be confirmed with the distributor or retailer at the time of purchase.
