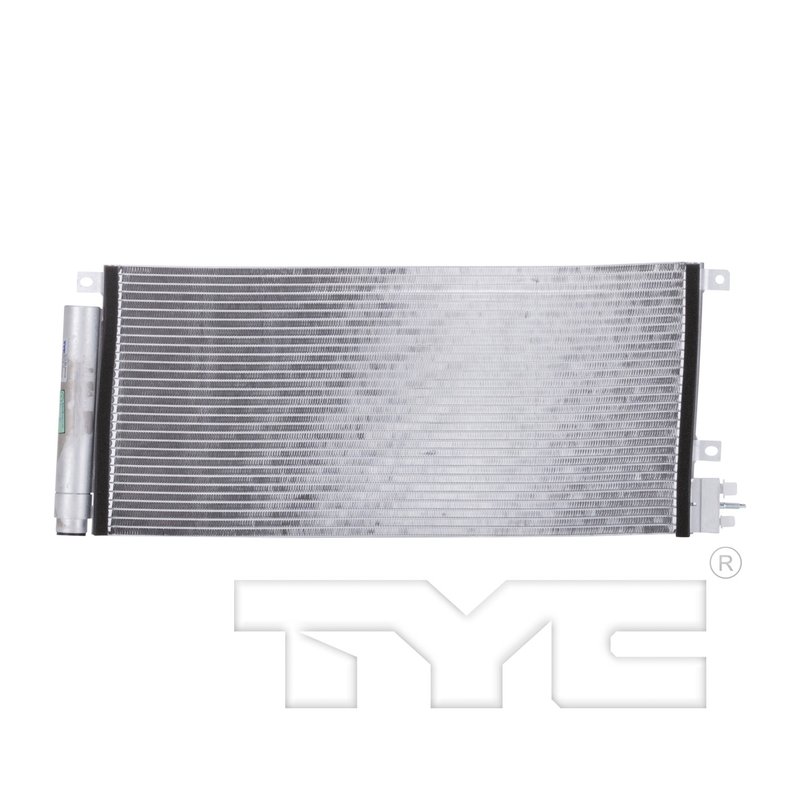

TYC 4252 A/C Condenser

Overview of TYC A/C Condenser 4252 for Buick Encore and Chevrolet Trax

The TYC A/C Condenser part number 4252 is designed specifically for select Buick Encore and Chevrolet Trax models. This parallel flow condenser ensures efficient heat exchange to maintain optimal air conditioning performance in your vehicle.

• Parallel flow condenser (PFC) configuration for improved cooling efficiency
• Core dimensions: 27 1/8 inches height x 12 1/8 inches length x 11/16 inches thickness
• Core thickness of 0.69 inches for durability and performance
• Inlet size: 12mm and outlet size: 9mm for precise fitment
• Compatible with Buick Encore and Chevrolet Trax models

Detailed Product Description and Specifications

The TYC A/C Condenser 4252 features a parallel flow condenser design, which enhances the heat dissipation process by allowing refrigerant to flow through multiple parallel channels. This design improves the efficiency of the air conditioning system in your Buick Encore or Chevrolet Trax. The core size measures 27 1/8 inches in height, 12 1/8 inches in length, and 11/16 inches in thickness, providing a robust surface area for effective cooling. The core thickness of 0.69 inches contributes to the condenser's structural integrity and heat transfer capabilities. The inlet and outlet sizes are 12mm and 9mm respectively, ensuring a secure and proper connection to the vehicle’s HVAC system.

Common Applications and Issues Addressed

• Replaces faulty or leaking A/C condensers in Buick Encore and Chevrolet Trax
• Resolves reduced cooling performance due to clogged or damaged condenser cores
• Addresses refrigerant leaks caused by corrosion or physical damage
• Improves overall air conditioning system efficiency and reliability
• Prevents overheating of the A/C system components

Installation Notes and Tips

When installing the TYC A/C Condenser 4252, ensure the vehicle is properly depressurized and the refrigerant is safely recovered. Verify the inlet and outlet hose sizes (12mm inlet, 9mm outlet) match the vehicle’s connections. Inspect and replace any worn or damaged O-rings and seals to prevent leaks. Properly flush the A/C system to remove debris before installation. Tighten all fittings to manufacturer specifications to maintain system integrity.

Quality Assurance and Warranty Information

TYC manufactures the A/C Condenser 4252 to meet or exceed OEM specifications for fit, form, and function. This part undergoes rigorous quality control to ensure durability and reliable performance in Buick Encore and Chevrolet Trax vehicles. Warranty coverage details should be confirmed at the time of purchase, as they may vary by distributor or region.
