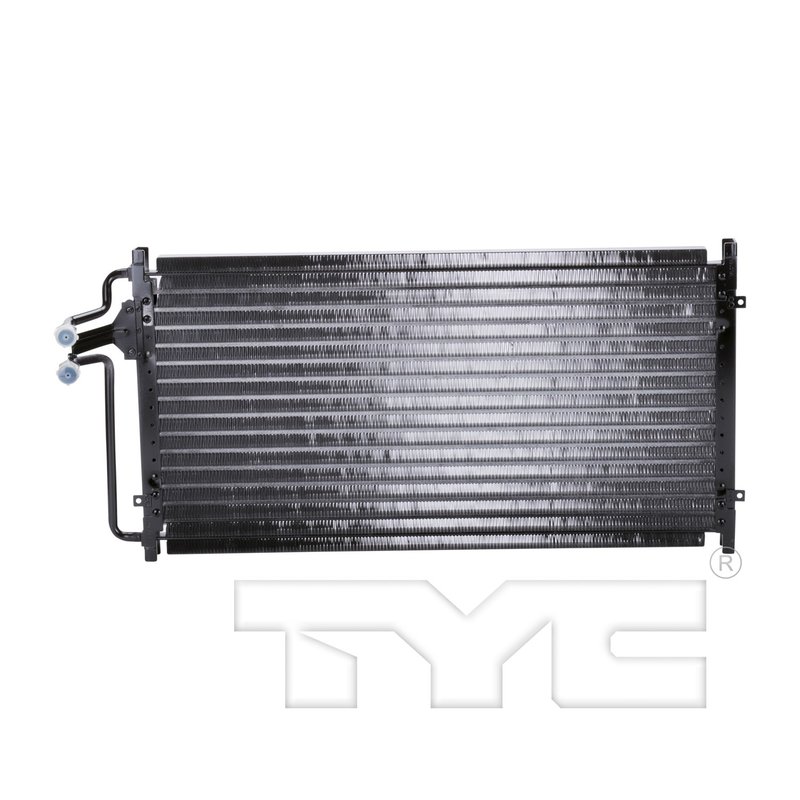

TYC 4560 A/C Condenser

Overview of TYC A/C Condenser 4560 for Chevrolet and GMC Models

The TYC A/C Condenser part number 4560 is designed specifically for select Chevrolet, GMC, Isuzu, and Oldsmobile vehicles. This serpentine configuration condenser provides reliable cooling performance for models such as the Chevrolet Blazer, GMC Envoy, and Isuzu Hombre.

• Serpentine core configuration for efficient heat dissipation
• Core dimensions: 13.94 inches height, 27.4 inches length, 1.02 inches thickness
• Threaded inlet and outlet fittings with M20*p1.5 diameter
• No built-in oil cooler or receiver/dryer included
• Compatible with Chevrolet Blazer, GMC Envoy, Isuzu Hombre, Oldsmobile Bravada, and related models

Detailed Product Description and Specifications

The TYC 4560 A/C condenser features a serpentine core design that maximizes surface area for effective heat exchange, helping maintain optimal air conditioning performance. Its core measures 13.94 inches in height, 27.4 inches in length, and 1.02 inches in thickness, providing a balance between cooling capacity and fitment. Both the inlet and outlet ports use threaded fittings sized M20*p1.5, ensuring secure and leak-free connections within the vehicle's HVAC system. This condenser does not include a built-in oil cooler or receiver/dryer, so it is intended for systems where these components are separate.

Compatible Vehicles and Applications

This A/C condenser is compatible with a range of vehicles including Chevrolet Blazer, GMC Envoy, Envoy XL, Envoy XUV, Isuzu Hombre, Oldsmobile Bravada, GMC Jimmy, Chevrolet S10, and GMC Sonoma. It is designed to meet the specific cooling requirements of these models, making it a suitable replacement part for maintaining factory-level air conditioning performance.

Common Issues Addressed by TYC A/C Condenser 4560

• Reduced cooling efficiency due to clogged or damaged condenser fins
• Leaks in the condenser causing refrigerant loss
• Overheating of the A/C system during operation
• Corrosion or physical damage from road debris
• Incompatibility or failure of previous aftermarket condensers

Installation Notes and Tips

• Ensure the vehicle’s A/C system is properly evacuated before removal
• Check and replace the receiver/dryer or accumulator as needed since this condenser does not include one
• Inspect all fittings and hoses for wear or damage during installation
• Use proper torque specifications for threaded M20*p1.5 inlet and outlet fittings
• Test the system for leaks and proper pressure after installation

Quality Assurance and Warranty Information

TYC parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The 4560 A/C condenser undergoes rigorous quality control to ensure fitment accuracy and material integrity. Warranty coverage details should be confirmed with the distributor or retailer, as terms may vary.
