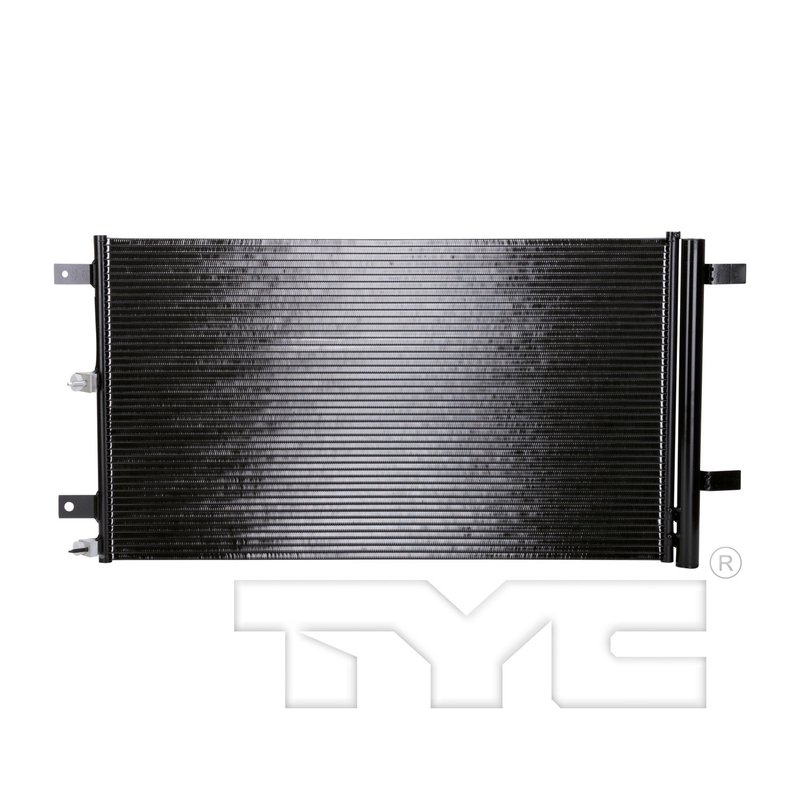

TYC 4689 A/C Condenser - Front

Overview of TYC A/C Condenser 4689 for Ford and Lincoln Vehicles

The TYC A/C Condenser part number 4689 is designed specifically for Ford Expedition, F-150, and Lincoln Navigator models. This parallel flow condenser features a built-in receiver/dryer and precise dimensions to ensure optimal cooling performance in your vehicle's HVAC system.

• Parallel flow configuration for efficient heat exchange
• Built-in receiver/dryer to maintain system cleanliness and moisture control
• Core dimensions: 18.2 inches height, 32.6 inches length, 0.63 inches thickness
• Inlet diameter of 0.89 inches with block fitting design
• Outlet diameter of 0.724 inches with block fitting design
• Compatible with Ford Expedition, Ford F-150, and Lincoln Navigator

Detailed Product Description

The TYC 4689 A/C condenser is engineered with a parallel flow configuration, which enhances refrigerant flow and heat dissipation efficiency. Its core measures 18.2 inches in height, 32.6 inches in length, and 0.63 inches in thickness, providing a substantial surface area for effective cooling. The condenser includes a built-in receiver/dryer, which helps to filter contaminants and remove moisture from the refrigerant, protecting the A/C system components and improving longevity.

Both the inlet and outlet fittings utilize a block design, with diameters of 0.89 inches and 0.724 inches respectively, ensuring a secure and leak-resistant connection to the vehicle’s A/C lines. This condenser is tailored for use in Ford Expedition, Ford F-150, and Lincoln Navigator models, making it a direct replacement part that meets OEM specifications.

Common Applications and Issues Addressed

• Replacement for damaged or leaking A/C condensers in Ford Expedition, F-150, and Lincoln Navigator
• Restores proper refrigerant flow and heat exchange efficiency
• Eliminates A/C system moisture and contamination with built-in receiver/dryer
• Resolves insufficient cooling or overheating issues in vehicle HVAC systems
• Prevents compressor damage caused by refrigerant contamination or moisture

Installation Notes and Tips

• Ensure system is fully evacuated and depressurized before removal
• Verify inlet and outlet fitting compatibility with vehicle A/C lines
• Replace or inspect O-rings and seals during installation to prevent leaks
• Recharge the A/C system with the correct refrigerant type and amount after installation
• Test system operation for proper cooling performance and leak-free connections

Quality Assurance and Warranty

TYC A/C condensers are manufactured to meet or exceed OEM standards for fit, form, and function. Part number 4689 undergoes rigorous quality control to ensure durability and reliable performance in Ford Expedition, F-150, and Lincoln Navigator vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
