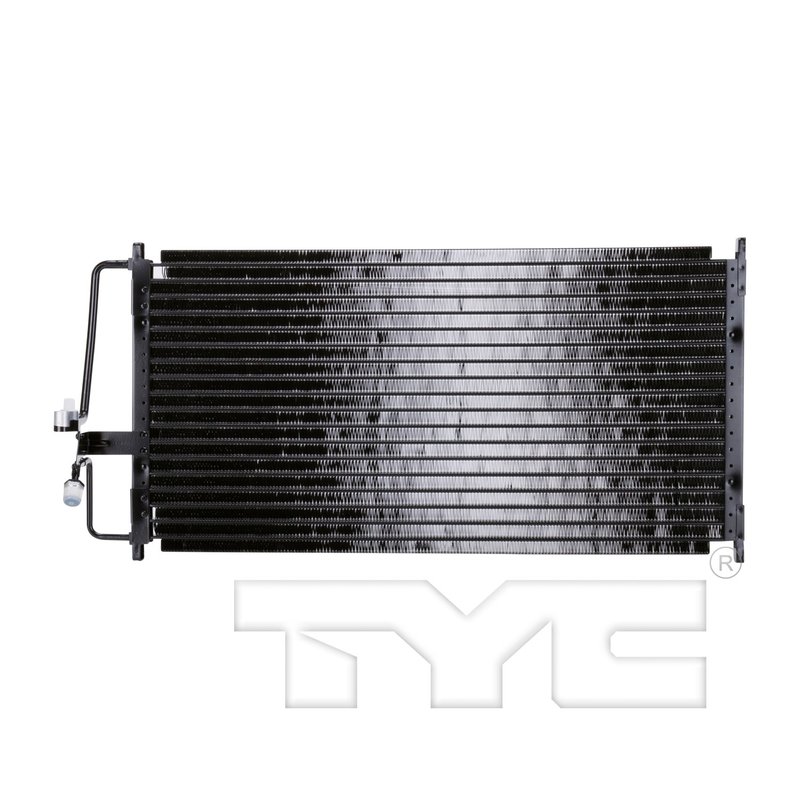

TYC 4806 A/C Condenser - Front

TYC 4806 A/C Condenser Overview

TYC 4806 is an A/C condenser for select Buick, Chevrolet, Oldsmobile, and Pontiac applications. It uses a serpentine core layout and measures 30 3/4 in. x 16 in. x 1 1/4 in., with an M20 x P 1.5 inlet and a 7/16 block fitting outlet.

This condenser is listed for vehicles such as the Buick Century and Regal, Chevrolet Impala and Monte Carlo, and Pontiac Grand Prix. It also cross-references ACDelco 15-62101 for the same application.

Key Features

• Part number: TYC 4806
• Serpentine configuration for the listed HVAC applications
• Core size: 30 3/4 in. x 16 in. x 1 1/4 in.
• Core height: 30.75 in.; core length: 16.00 in.; core thickness: 1.25 in.
• Inlet size: M20 x P 1.5
• Outlet size: 7/16 block fitting
• Remarks: also fits 4789

Detailed Description

TYC 4806 is an A/C condenser built for direct-fit replacement in select GM passenger cars and minivans with the specified serpentine layout. The condenser core dimensions, inlet, and outlet specifications are provided to match the listed factory-style HVAC connections, making it a practical choice when replacing a leaking, damaged, or restricted condenser on a Buick Century, Buick Regal, Chevrolet Impala, Chevrolet Monte Carlo, Pontiac Grand Prix, Oldsmobile Intrigue, Oldsmobile Silhouette, Pontiac Montana, or Pontiac Trans Sport.

Compatible fitment includes 1997-2005 Buick Century, 1997-2004 Buick Regal, 2000-2003 Chevrolet Impala, 2000-2003 Chevrolet Monte Carlo, 1997-2003 Pontiac Grand Prix, 1998-2002 Oldsmobile Intrigue, 1997-2000 Oldsmobile Silhouette, front, w/o Aux A/C, 1999-2000 Pontiac Montana, front, w/o Aux A/C, and 1997-1999 Pontiac Trans Sport, front, w/o Aux A/C. This part number is also referenced as TYC 4806 in interchange listings for related aftermarket and OE cross-reference searches.

What It Helps Address

• Refrigerant loss from a leaking condenser core
• Reduced A/C performance from restricted airflow through the condenser
• Physical damage to condenser fins or tubes
• Improper fitment when replacing the original serpentine-style condenser
• Connection mismatch at the inlet or outlet fittings

Installation Notes and Tips

Verify the condenser core dimensions, inlet size, outlet fitting, and vehicle configuration before installation. This listing includes front-position applications for Silhouette, Montana, and Trans Sport models only when equipped without auxiliary A/C. Confirm the existing condenser layout matches the serpentine configuration and note that the product remarks state it also fits 4789.

Quality Assurance

TYC is a recognized aftermarket brand with broad OE-style replacement coverage. Use the confirmed fitment data and connection specifications above to verify application match before installation.
