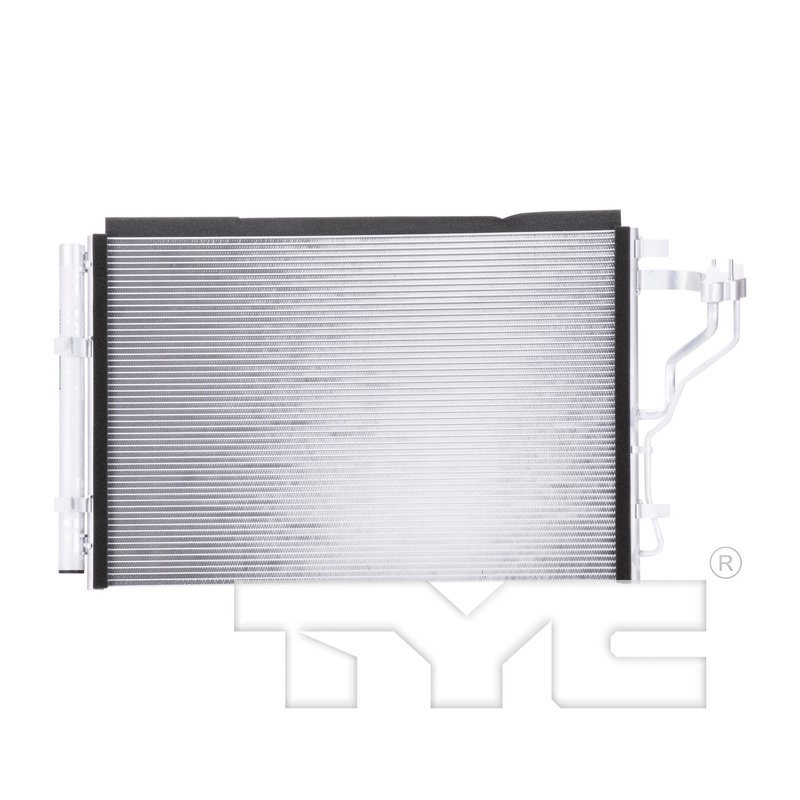

TYC 4959 A/C Condenser
| Brand | TYC 4959 |
|---|---|
| Configuration | Parallel flow condenser (pfc) |
| Components Included | Receiver/drier |
| Core Height (in) | 23.94 |
| Core Length (in) | 15.14 |
| Core Size | 23.94 x 15.14 x 0.63 |
| Core Thickness (in) | 0.63 |
| Fin Height | 5mm |
| Inlet Size | 13mm |
| Outlet Size | 8.45mm |
| Fits | Hyundai · 3 vehicles |
Parallel flow design. Promotes efficient refrigerant flow through the condenser.
Receiver/drier included. Adds a key component in one convenient assembly.
Compact condenser size. Measures 23.94 x 15.14 x 0.63 inches.
Cross-references Hyundai 97606-A5000, OSC 4959 and Partslink HY3030161 for the same application. See all 4.
TYC 4959 A/C Condenser for Hyundai Elantra GT
Restore A/C system performance with this TYC 4959 A/C condenser for the Hyundai Elantra GT. It is a parallel flow condenser with an integrated receiver/drier, built to match the listed OE-style application for 2013-2015 Hyundai Elantra GT models.
Key Features
- Parallel Flow Condenser (PFC) configuration for efficient refrigerant heat transfer
- Receiver/drier included in the condenser assembly
- Core size: 23.94 x 15.14 x 0.63 in.
- Core height: 23.94 in.; core length: 15.14 in.; core thickness: 0.63 in.
- Fin height: 5 mm
- Inlet size: 13 mm; outlet size: 8.45 mm
- Direct-fit application for select Hyundai Elantra GT vehicles
Detailed Description
TYC 4959 is an A/C condenser engineered for the 2013-2015 Hyundai Elantra GT, with fitment listed for 2014-2015 models and for 2013 vehicles built from 01/18/2013. The parallel flow design supports refrigerant cooling efficiency, while the included receiver/drier addresses moisture control within the A/C circuit. This part cross-references Hyundai 97606-A5000 for the same application.
Use TYC 4959 when replacing a leaking, damaged, or restricted condenser on a Hyundai Elantra GT. It also cross-references Partslink HY3030161 and is listed under OSC 4959 and Reach Cooling 31-4959.
What This Part Helps Resolve
- A/C refrigerant loss from a damaged condenser core
- Reduced cooling output from restricted airflow through the condenser
- Moisture contamination concerns in the A/C system with a failed receiver/drier
- Heat exchange issues that affect cabin air temperature
- Fitment concerns when replacing the original Hyundai Elantra GT condenser
Installation Notes and Tips
Verify the vehicle build date before ordering for 2013 Hyundai Elantra GT applications, since fitment begins from 01/18/2013. Confirm inlet and outlet sizes, mounting points, and line connections against the original unit before installation. After replacement, evacuate and recharge the A/C system according to factory service procedures and inspect for leaks.
Quality Assurance
TYC manufactures OE-style replacement climate control components with application-specific fitment data for the listed Hyundai Elantra GT models. Part number 4959 is cataloged to match the specified condenser configuration and dimensions for accurate replacement selection.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Hyundai | Elantra GT | Hatchback | 2.0L | L4 | N/A | A/C Condenser with Receiver/Drier. |
| 2014 | Hyundai | Elantra GT | Hatchback | 2.0L | L4 | N/A | A/C Condenser with Receiver/Drier. |
| 2013 | Hyundai | Elantra GT | Hatchback | 1.8L | L4 | N/A | From 01/18/2013; Configuration: Parallel Flow Condenser (PFC); Components Included: Receiver/Drier |
