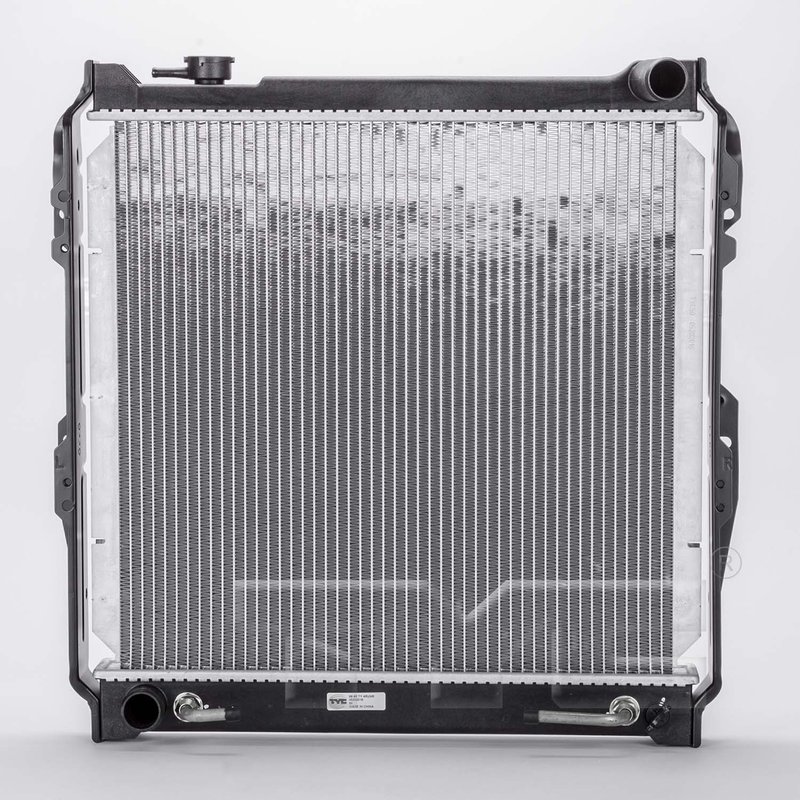

TYC 50 Radiator

Overview of the TYC Radiator Part Number 50

The TYC Radiator 50 is engineered for reliable cooling performance in Toyota 4Runner and Pickup models. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core Material: Durable aluminum for effective heat dissipation
• Transmission Oil Cooler: Included with concentric oil cooler design
• Core Dimensions: 18.82 inches height, 18.5 inches length, 1.26 inches thickness
• Flow Configuration: Downflow for optimized coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.38-inch and 1.40-inch diameters
• Fin Count: 64 fins every 4 inches with 0.31-inch fin wave height
• Fitment: Compatible with Toyota 4Runner and Pickup models

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet OEM specifications. This line includes radiators with integrated transmission oil coolers, such as the concentric oil cooler featured in part number 50, providing a combined solution for engine and transmission cooling needs in select Toyota vehicles.

Detailed Product Description

This TYC Radiator (part number 50) features a single-row aluminum core measuring 18.82 inches in height and 18.5 inches in length, with a thickness of 1.26 inches. The radiator includes 64 fins every 4 inches and a total of 48 fin rows, enhancing heat exchange efficiency. The downflow design ensures coolant flows from top to bottom, improving thermal management. Both inlet and outlet connections use hose clamps with diameters of 1.38 inches and 1.40 inches respectively, facilitating secure hose attachment. The integrated concentric transmission oil cooler uses tube fittings with 0.39-inch diameters for inlet and outlet, supporting transmission fluid cooling without the need for a separate cooler.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Toyota 4Runner and Pickup vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Solves transmission fluid overheating with built-in concentric oil cooler
• Restores proper coolant flow and pressure in downflow cooling systems
• Eliminates coolant leaks from damaged or corroded radiator cores

Installation Notes and Tips

• Ensure compatibility with Toyota 4Runner and Pickup models before installation
• Inspect and replace all hose clamps to prevent leaks
• Flush the cooling system prior to installation to remove debris
• Check transmission oil cooler connections for secure tube fittings
• Follow vehicle manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

TYC Radiator part number 50 is manufactured to meet or exceed OEM standards, using high-quality aluminum core materials and precise construction. The integrated concentric transmission oil cooler is designed for durability and reliable performance. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
