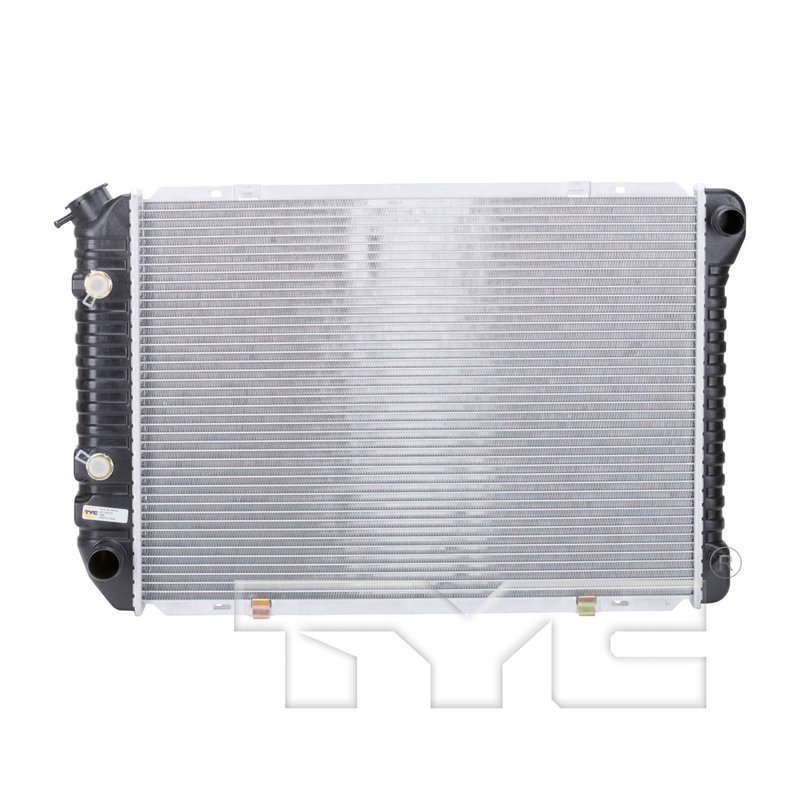

TYC 556 Radiator

Overview of the TYC Radiator 556 for Ford, Lincoln, and Mercury

The TYC Radiator part number 556 is engineered to provide reliable cooling performance for select Ford, Lincoln, and Mercury vehicles. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management in models like the Mustang, Thunderbird, Continental, Cougar, and Mark VII.

• Durable aluminum core construction for effective heat dissipation
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1.26-inch core thickness and 17.64-inch core height
• Hose clamp inlet and outlet connections with 1.26-inch inlet and 1.50-inch outlet diameters
• Compatible with Ford Mustang, Lincoln Continental, Mercury Cougar, Mark VII, and Thunderbird

Detailed Features and Specifications

The TYC Radiator 556 features a single-row aluminum core measuring 24.49 inches in length and 17.64 inches in height, with a thickness of 1.26 inches. It incorporates a crossflow flow configuration that optimizes coolant circulation. The radiator includes a concentric transmission oil cooler, which is integrated to maintain transmission fluid temperatures, but does not include an engine oil cooler. The fin count is 68 every 4 inches, with a fin wave height of 0.31 inches and a fin wave pitch of 3, contributing to efficient heat exchange. The radiator has 44 tubes total, with 10 tubes every 4 inches, each measuring 32 by 2 inches. Both inlet and outlet connections use hose clamps, with diameters of 1.26 inches and 1.50 inches respectively. The top and bottom headers measure 2.15 by 18.92 inches and 2.62 by 18.92 inches respectively.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling solutions with quality materials and precise fitment. Radiators in this line are designed to meet or exceed OEM specifications, featuring aluminum cores and integrated components such as transmission oil coolers where applicable. The TYC Radiator 556 exemplifies this approach by combining durable construction with vehicle-specific compatibility for Ford, Lincoln, and Mercury models.

Common Applications and Problem Solving

• Replaces leaking or damaged radiators in Ford Mustang, Lincoln Continental, Mercury Cougar, Mark VII, and Thunderbird
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating with the included concentric oil cooler
• Fixes coolant leaks from corroded or cracked radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use proper hose clamps for inlet and outlet connections sized at 1.26 and 1.50 inches
• Drain coolant and transmission fluid as necessary before removal
• Inspect and replace any worn hoses or clamps during installation
• Bleed the cooling system thoroughly after installation to prevent air pockets

Quality Assurance and Warranty

TYC Radiator 556 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are tested for reliability under normal operating conditions. While specific warranty details may vary, TYC products typically include a limited warranty covering defects in materials and workmanship to ensure customer confidence in the replacement radiator.
