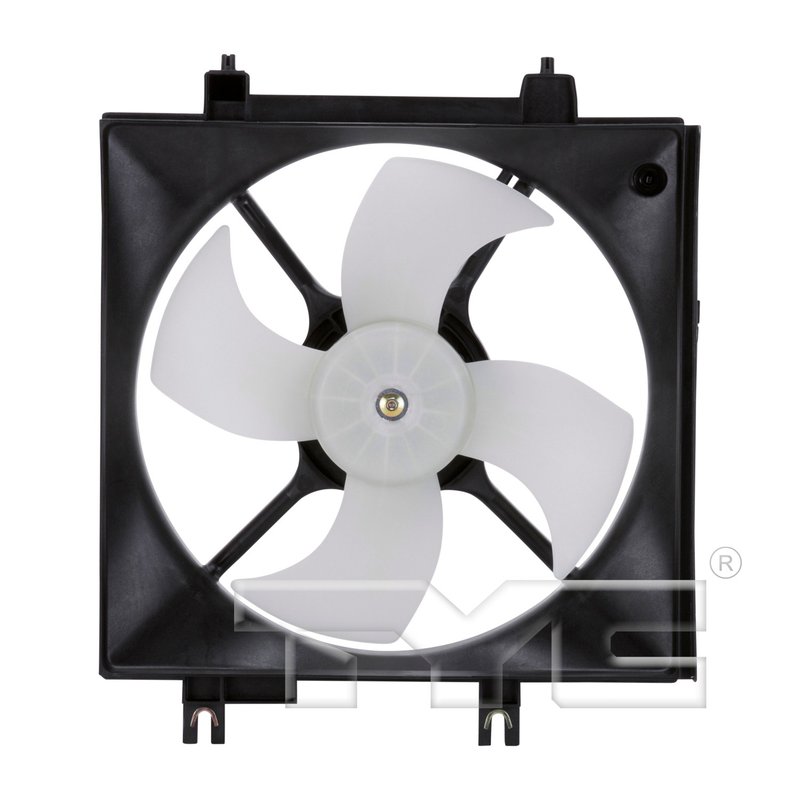

TYC 611070 A/C Condenser Fan Assembly

TYC 611070 A/C Condenser Fan Assembly

Restore condenser airflow with this TYC A/C condenser fan assembly, part number 611070. It is built for direct fitment on select Subaru Legacy and Subaru Outback models and uses a single-fan configuration with an integrated shroud for a clean OE-style replacement.

Compatible with 2005-2014 Subaru Legacy and 2005-2014 Subaru Outback applications that use the matching condenser fan setup, this assembly is designed around the original mounting and connector layout. The TYC 611070 also cross-references Dorman 620-830 for the same application.

Key Features

• A/C condenser fan assembly for HVAC cooling system service
• Single fan design with shroud included
• Shroud material: PP+GF
• Fan blade material: PP+GF
• 1 female connector with 2 terminals
• Direct replacement for select Subaru Legacy and Subaru Outback fitments
• Cross-reference: Dorman 620-830

Detailed Description

This TYC condenser fan assembly is built for vehicles that require a single electric fan mounted to the A/C condenser side of the cooling package. The PP+GF shroud and fan blade construction supports consistent airflow management while maintaining the original-style configuration. For Subaru Legacy and Subaru Outback owners searching for a TYC 611070 condenser fan assembly, this part provides a fitment-specific replacement that aligns with the listed connector and mounting details.

Use this assembly when servicing the condenser fan on 2005-2014 Subaru Legacy or 2005-2014 Subaru Outback models with the matching setup. The part number 611070 is also referenced in OE and aftermarket catalogs for the same application.

What It Helps Solve

• Weak or inoperative condenser fan operation
• Reduced airflow across the A/C condenser
• Air conditioning performance loss at idle or low speed
• Overheating of the condenser fan circuit due to a failed motor or damaged assembly
• Noise or vibration from a worn fan assembly

Installation Notes and Tips

Verify connector style, terminal count, and shroud layout against the original unit before installation. This assembly uses one female connector with two terminals and includes the shroud as part of the unit. Confirm the vehicle is a 2005-2014 Subaru Legacy or 2005-2014 Subaru Outback with the matching condenser fan configuration and the opposite-side reference 601070.

Quality Assurance

TYC manufactures replacement cooling components to OE-style specifications for fit and function. This part number 611070 is cataloged for direct application matching and is supported by cross-reference listings for the same vehicle use.
