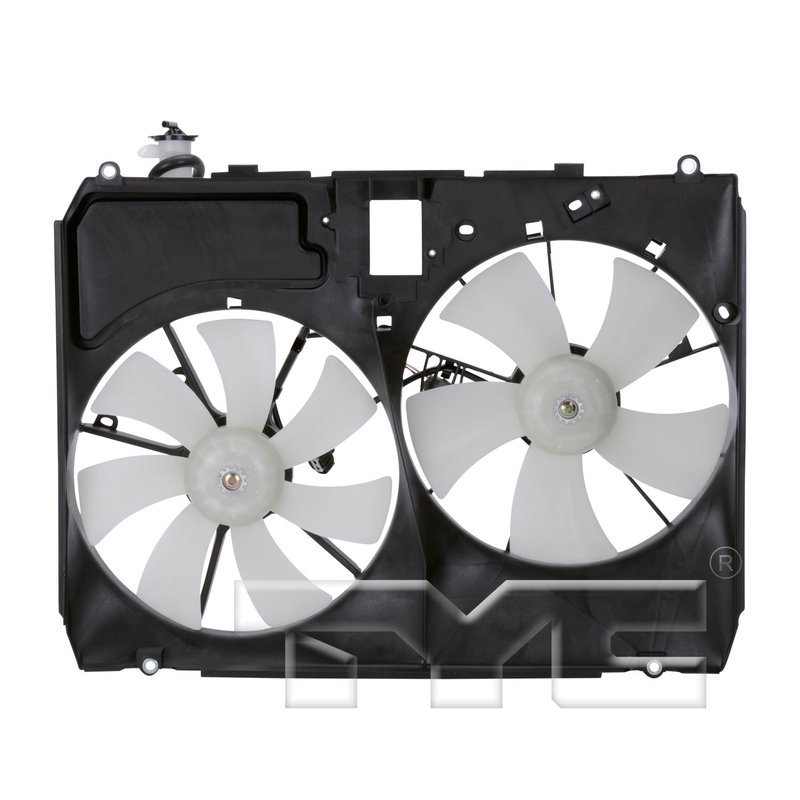

TYC 620970 Dual Radiator and Condenser Fan Assembly
| Brand | TYC 620970 |
|---|---|
| Configuration | Radiator and Condenser Cooling Fan Assembly |
| Connector Quantity | 2 |
| Connector Terminal Quantity | 4 |
| Connector Type | female |
| Fan Blade Material | PP+GF |
| Fan Type | Dual |
| Package Contents | Radiator & Condenser Fan Assembly |
| Shroud Included | Yes |
| Shroud Material | PP+GF |
| Fits | Toyota · 2 vehicles |
Dual-fan assembly. Provides radiator and condenser cooling in one unit.
Shroud included. Helps direct airflow through the cooling assembly.
PP+GF construction. Uses reinforced polypropylene for the shroud and fan blades.
Cross-references DEPO 312-55025-000, Dorman 620-553 and Four Seasons 76040 for the same application. See all 11.
Radiator and Condenser Fan Assembly for Toyota Sienna
This TYC dual radiator and condenser fan assembly is a direct-fit cooling component for select 2004-2005 Toyota Sienna models. Built with a shroud included and dual-fan configuration, it supports airflow across both the radiator and condenser for proper engine and A/C heat management.
- Brand: TYC
- Part number: 620970
- Configuration: radiator and condenser cooling fan assembly
- Dual fan design for combined engine and A/C cooling airflow
- Shroud included for a complete assembly layout
- Shroud material: PP+GF
- Fan blade material: PP+GF
- Connector quantity: 2
- Connector type: female
- Connector terminal quantity: 4
Fitment and Cross References
Compatible with 2004-2005 Toyota Sienna, N/A, w/o Tow Pkg; Configuration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual. This part cross-references Dorman 620-553 and Four Seasons 76040 for the same application.
Use TYC 620970 when replacing a worn or inoperative radiator and condenser fan assembly on a Toyota Sienna. The dual-fan layout helps maintain airflow through the cooling stack, while the included shroud supports proper air movement across the radiator and condenser. TYC 620970 is also referenced by OE and aftermarket numbers including Toyota 16361-0A140 and TYC TY66039A.
Common Problems This Part Can Address
- Engine temperature rising in stop-and-go driving
- Weak or inconsistent airflow through the radiator and condenser
- A/C performance loss at idle or low vehicle speed
- Fan motor or blade assembly failure
- Cooling system noise caused by a damaged fan assembly
Installation Notes and Tips
Verify connector style, terminal count, and vehicle configuration before installation. This assembly uses two female connectors with four terminals each and is specified for Toyota Sienna applications without the tow package. Confirm that the shroud and mounting points match the original setup before transfer or replacement.
Quality Assurance
TYC manufactures replacement cooling components for OE-style fit and function, and this assembly is built to match the listed application requirements for 2004-2005 Toyota Sienna models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Sienna | N/A | w/o Tow Pkg; Configuration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual |
| 2004 | Toyota | Sienna | N/A | w/o Tow Pkg; Configuration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual |
