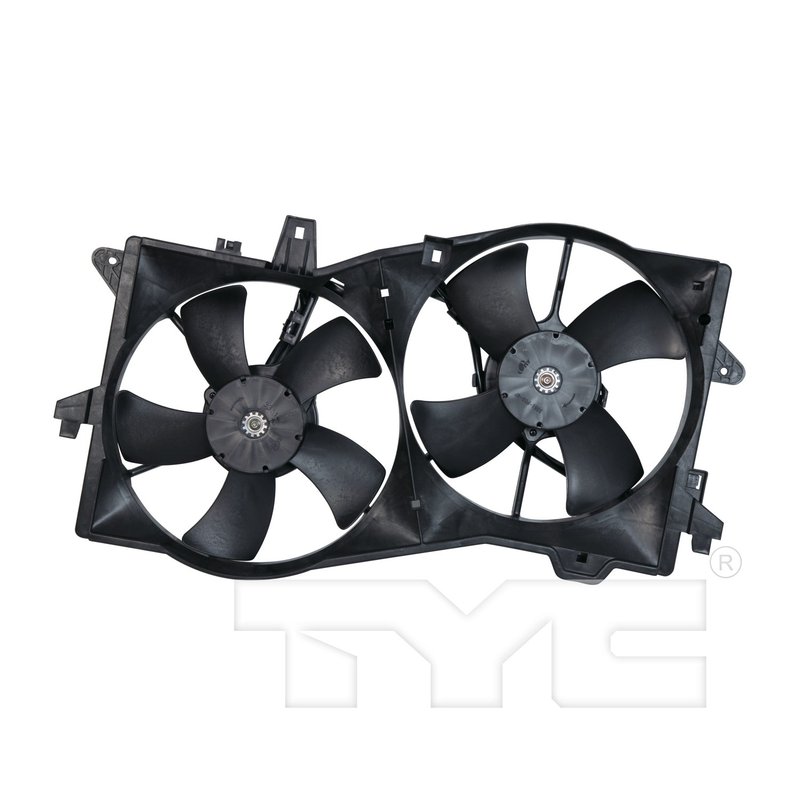

TYC 621090 Dual Radiator and Condenser Fan Assembly

Overview of TYC Dual Radiator and Condenser Fan Assembly

The TYC 621090 dual radiator and condenser fan assembly is designed specifically for Mazda MPV models. This assembly includes both the radiator and condenser fans integrated into a single unit, providing efficient cooling performance for your vehicle's engine and air conditioning system.

• Configuration: Radiator and condenser cooling fan assembly
• Shroud included for proper airflow management
• Shroud material: Durable PP+GF (polypropylene with glass fiber)
• Fan type: Dual fan blades for enhanced cooling
• Connector quantity: 2 connectors (4 male + 2 female terminals)
• Fan blade material: PA+GF (polyamide with glass fiber) for strength and durability
• Connector terminal quantity: 6 terminals total
• Package contents: Complete radiator and condenser fan assembly

Detailed Product Description

The TYC 621090 fan assembly is engineered to meet the cooling demands of the Mazda MPV. Featuring a dual fan design, this assembly efficiently manages heat dissipation from both the radiator and condenser. The included shroud, made from PP+GF, ensures optimal airflow direction and protection for the fan blades, which are constructed from PA+GF for enhanced durability and resistance to heat and wear. The assembly connects via two connectors with a total of six terminals (4 male and 2 female), ensuring secure and reliable electrical connections.

Applications and Problem Solving

This dual radiator and condenser fan assembly is used to maintain proper engine temperature and air conditioning efficiency in Mazda MPV vehicles. It addresses several common issues, including:

• Overheating caused by insufficient radiator cooling
• Reduced air conditioning performance due to condenser fan failure
• Electrical connection problems with worn or damaged fan connectors
• Fan blade damage or wear leading to inefficient cooling
• Shroud damage affecting airflow and fan protection

Installation Notes and Tips

When installing the TYC 621090 fan assembly on a Mazda MPV, ensure the following:

• Disconnect the battery before beginning installation to prevent electrical hazards
• Verify connector types and terminal counts match your vehicle’s wiring harness
• Inspect the mounting points and shroud for proper alignment to avoid vibration or noise
• Check for any coolant or refrigerant leaks before and after installation
• Test fan operation after installation to confirm proper electrical connection and function

Quality Assurance and Warranty

TYC manufactures this dual radiator and condenser fan assembly to meet or exceed OEM specifications for fit, form, and function. The materials used, including PP+GF for the shroud and PA+GF for the fan blades, provide durability and resistance to heat and mechanical stress. While specific warranty details may vary, TYC typically offers a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
