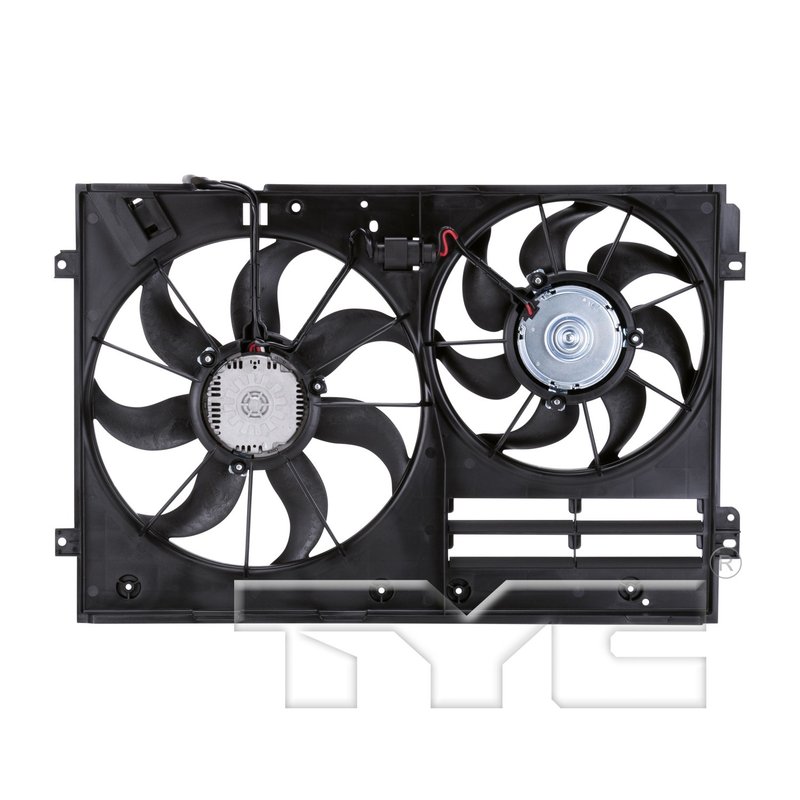

TYC 622820 Dual Radiator and Condenser Fan Assembly

Overview of TYC Dual Radiator and Condenser Fan Assembly

The TYC 622820 dual radiator and condenser fan assembly is designed specifically for Volkswagen Jetta models. This assembly includes both the radiator and condenser fans integrated into one unit, providing efficient cooling performance for your vehicle's engine and air conditioning system.

• Includes shroud made from durable PA+GF material
• Dual fan type for enhanced cooling efficiency
• Single male connector with 4 terminals for reliable electrical connection
• Fan blades constructed from PA+GF for strength and longevity
• Comes with an integrated fan control module for optimized operation
• Complete radiator and condenser fan assembly package

Detailed Product Description

The TYC 622820 fan assembly is engineered to meet the cooling demands of Volkswagen Jetta vehicles. Featuring a dual fan design, it combines the radiator and condenser fans into one compact unit, improving airflow and heat dissipation. The included shroud, made from PA+GF (polyamide with glass fiber), ensures structural integrity and directs airflow efficiently through the cooling system. The fan blades are also constructed from the same durable PA+GF material, providing resistance to heat and wear over time.

This assembly includes a single male connector with four terminals, ensuring a secure and stable electrical connection to the vehicle’s wiring harness. Additionally, the fan control module is integrated within the assembly, allowing for precise control of fan speed based on engine temperature and air conditioning demands. This part is a direct replacement designed to maintain factory specifications and performance.

Compatible Vehicles and Applications

This dual radiator and condenser fan assembly is compatible with Volkswagen Jetta models. It is intended for use in cooling the engine radiator and the air conditioning condenser, helping to maintain optimal operating temperatures and prevent overheating.

• Resolves engine overheating issues caused by faulty or inefficient cooling fans
• Restores proper air conditioning condenser cooling for improved A/C performance
• Eliminates fan noise or vibration from worn or damaged fan blades
• Replaces assemblies with electrical connector or control module failures
• Addresses reduced airflow due to damaged or missing shroud components

Installation Notes and Tips

Installation of the TYC 622820 fan assembly should be performed by a qualified technician or experienced DIYer familiar with Volkswagen Jetta cooling systems. Ensure the vehicle is powered off and cooled down before beginning work. Disconnect the battery to prevent electrical shorts. Carefully remove the old fan assembly, noting the location of the electrical connector and mounting points. When installing the new assembly, verify the connector terminals align properly and the shroud fits securely to avoid airflow leaks. Test the fan operation after installation to confirm proper function.

Quality Assurance and Warranty

TYC manufactures this dual radiator and condenser fan assembly to meet or exceed OEM standards for fit, form, and function. The use of PA+GF materials for the shroud and fan blades ensures durability under high-temperature conditions. The included fan control module is tested for reliable performance. This part number 622820 is backed by TYC’s limited warranty against defects in materials and workmanship, providing confidence in its long-term reliability for Volkswagen Jetta owners.
