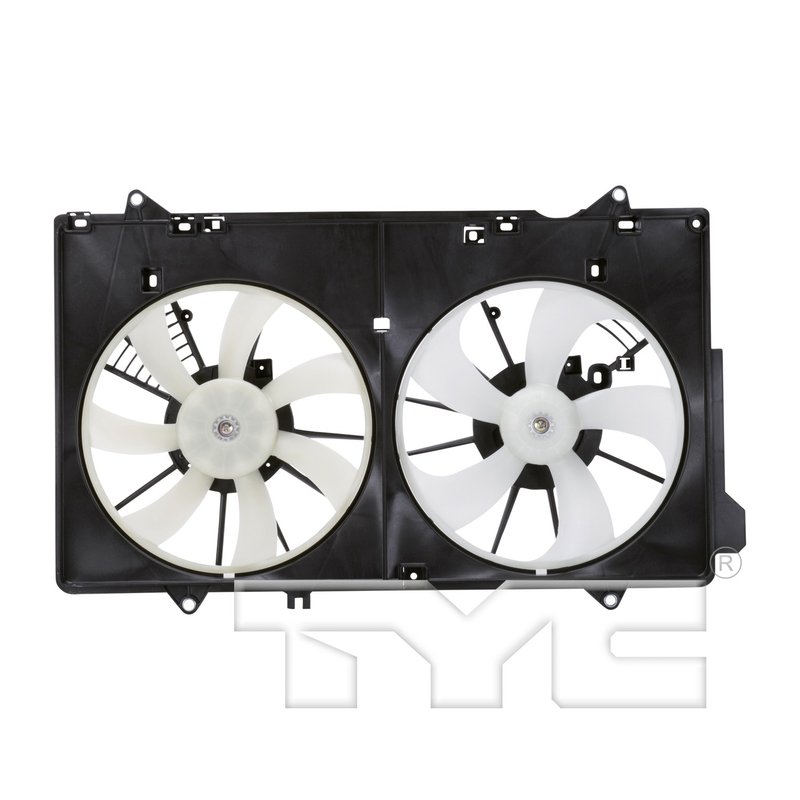

TYC 623010 Dual Radiator and Condenser Fan Assembly
OE Quality 60-Day Returns
TYC

TYC 623010 Dual Radiator and Condenser Fan Assembly

Brand TYC 623010
Configuration Radiator and Condenser Cooling Fan Assembly
Connector Quantity 2
Connector Terminal Quantity 4
Connector Type Male
Fan Blade Material PA+GF
Fan Type Dual
Shroud Included Yes
Shroud Material PA+GF
Fits Mazda · 4 vehicles

Dual fan assembly. Provides radiator and condenser cooling in one unit.

Shroud included. Helps direct airflow through the assembly.

PA+GF construction. Uses reinforced material for the shroud and fan blades.

Cross-references Mazda PE01-15-140, Mazda PE01-15-150 and Mazda PE01-15-210 for the same application. See all 7.

$135.26Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $135.26
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Dual Radiator and Condenser Fan Assembly options

Dual Cooling Fan Assembly for Mazda CX-5

TYC 623010 is a dual radiator and condenser fan assembly built for 2013-2016 Mazda CX-5 applications. It combines radiator and condenser airflow management in one OE-style replacement unit for direct-fit service on the listed vehicle range.

  • Radiator and condenser cooling fan assembly configuration
  • Dual fan design for combined cooling system airflow
  • Shroud included for proper fan housing coverage
  • Shroud material: PA+GF
  • Fan blade material: PA+GF
  • 2 male connectors with 4 terminals total
  • Cross-reference: Partslink MA3115152

Fitment Details

Fits 2013-2016 Mazda CX-5, N/A. This application is listed with a radiator and condenser cooling fan assembly configuration and dual fan type. TYC 623010 is also referenced by Mazda OE part numbers and TYC MZ66042A for the same application.

What This Fan Assembly Helps Address

  • Overheating caused by weak or failed cooling fan operation
  • Insufficient airflow across the radiator at idle or low speed
  • Reduced condenser airflow that can affect A/C performance
  • Noisy, damaged, or worn fan assembly components
  • Cooling system performance issues on a Mazda CX-5

Installation Notes and Tips

Verify connector style, terminal count, and shroud configuration against the original unit before installation. Confirm the vehicle is a 2013-2016 Mazda CX-5 and match the existing radiator and condenser cooling fan assembly layout to ensure proper fitment. Inspect surrounding cooling system components for damage or contamination during replacement.

Quality Assurance

TYC manufactures replacement cooling components for OE-style fit and function. Part number 623010 is built to match the listed application details for 2013-2016 Mazda CX-5 service.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2016MazdaCX-5N/AConfiguration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual
2015MazdaCX-5N/AConfiguration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual
2014MazdaCX-5N/AConfiguration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual
2013MazdaCX-5N/AConfiguration: Radiator and Condenser Cooling Fan Assembly; Fan Type: Dual
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mazda — PE01-15-140Mazda — PE01-15-150Mazda — PE01-15-210Mazda — PE02-15-140Mazda — PE02-15-150Partslink — MA3115152TYC — MZ66042A
