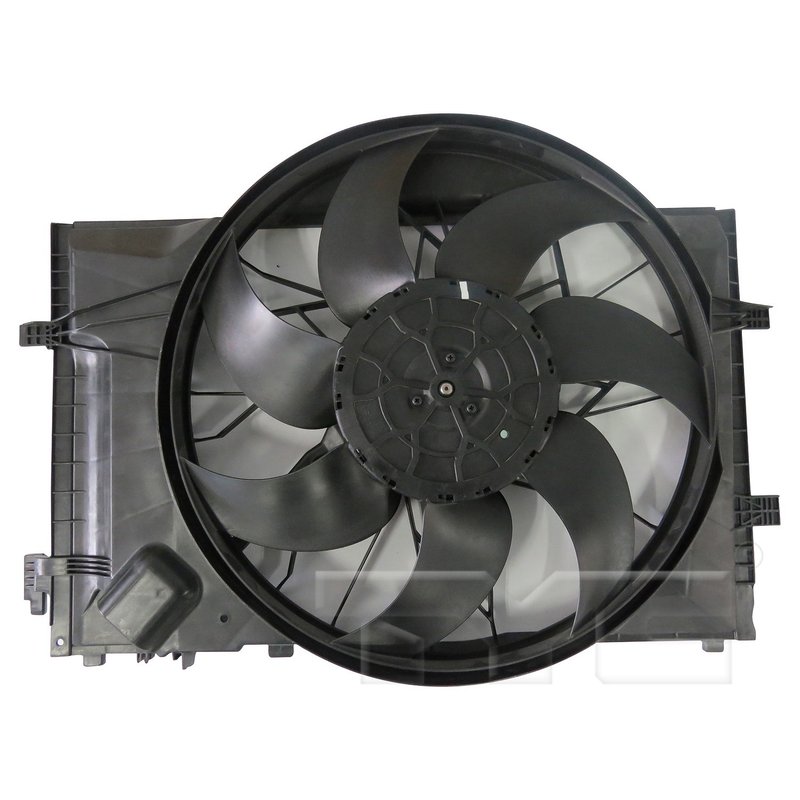

TYC 623280 Dual Radiator and Condenser Fan Assembly

Overview of TYC Dual Radiator and Condenser Fan Assembly

The TYC 623280 dual radiator and condenser fan assembly is designed for select Mercedes-Benz models, including the C32 AMG, C55 AMG, C200, C230, C240, C280, C320, C350, and CLK320. This single fan unit features durable materials and a brushless motor to ensure reliable cooling performance.

• Shroud and fan blade constructed from PA+GF (polyamide with glass fiber) for enhanced strength and heat resistance
• Single fan type optimized for efficient airflow
• Equipped with one male connector featuring four terminals for secure electrical connection
• Includes a brushless motor for quieter operation and longer service life

Detailed Product Description

The TYC 623280 fan assembly integrates a single fan blade and shroud made from PA+GF, a composite material known for its durability and thermal stability. This construction helps maintain structural integrity under high engine temperatures. The assembly includes a brushless motor, which reduces wear and noise compared to traditional brushed motors, contributing to consistent cooling system performance. The electrical connector is a male type with four terminals, ensuring compatibility with the factory wiring harness on compatible Mercedes-Benz vehicles.

Compatible Mercedes-Benz Models and Applications

This dual radiator and condenser fan assembly is compatible with a range of Mercedes-Benz vehicles, specifically the C32 AMG, C55 AMG, C200, C230, C240, C280, C320, C350, and CLK320 models. It is designed to replace the original cooling fan assembly to maintain proper engine temperature and air conditioning condenser efficiency.

• Overheating issues due to faulty or worn fan assemblies
• Reduced air conditioning performance from inadequate condenser cooling
• Unusual noises or vibrations caused by damaged fan blades or motor
• Electrical connection problems affecting fan operation

Installation Notes and Tips

When installing the TYC 623280 fan assembly, ensure the electrical connector matches the vehicle’s wiring harness for a secure fit. Verify that the shroud aligns properly with the radiator and condenser to avoid interference. It is recommended to inspect the cooling system for leaks or damage during installation. Proper torque specifications should be followed to prevent damage to mounting points.

Quality Assurance and Warranty

TYC manufactures this fan assembly to meet or exceed OEM standards for fit, form, and function. The use of PA+GF materials and a brushless motor contributes to durability and reliable operation. While specific warranty details may vary, TYC typically offers coverage against defects in materials and workmanship. Consult product documentation for exact warranty terms.
