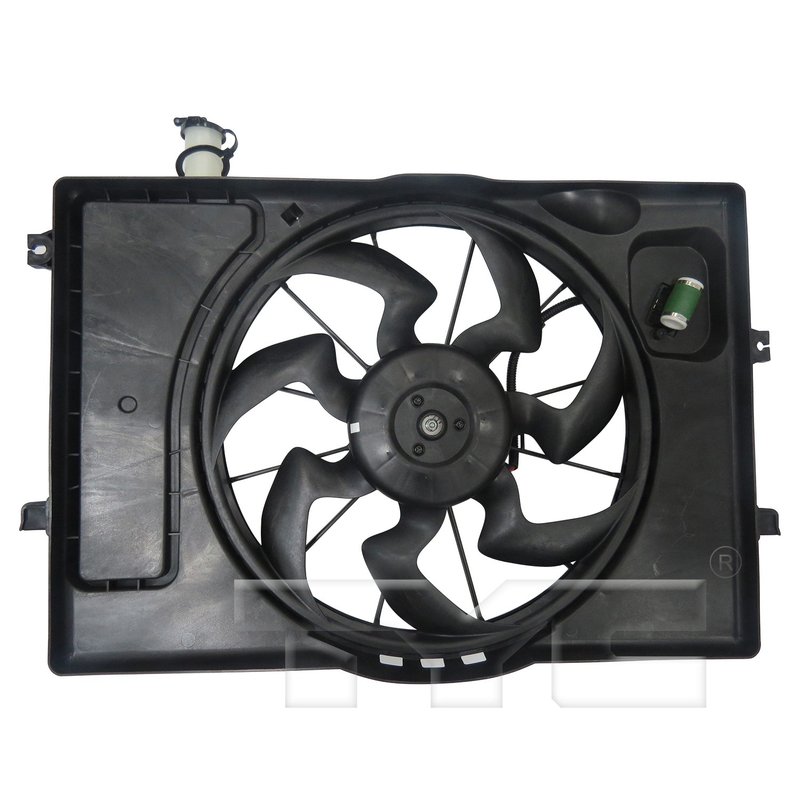

TYC 623820 Dual Radiator and Condenser Fan Assembly - Upper

Overview of TYC Dual Radiator and Condenser Fan Assembly

The TYC 623820 dual radiator and condenser fan assembly is designed to provide efficient cooling performance for select Hyundai and Kia models. This single fan unit includes a durable shroud and is engineered to maintain optimal engine and air conditioning temperatures.

• Configuration: Radiator and condenser cooling fan assembly
• Shroud included for improved airflow management
• Shroud and fan blade material: PA+GF (polyamide with glass fiber reinforcement)
• Single fan type with one male connector
• Connector terminal quantity: 3

Detailed Product Description

The TYC 623820 fan assembly integrates a single fan blade made from PA+GF, a reinforced plastic material that offers strength and heat resistance. The included shroud, also constructed from PA+GF, helps direct airflow efficiently through the radiator and condenser, enhancing cooling system performance. This assembly features a single male connector with three terminals, ensuring proper electrical connection and compatibility with the vehicle's wiring harness.

Specifically compatible with Hyundai Elantra, Elantra GT, Kona, Veloster, and Kia Forte, Seltos, and Soul models, this fan assembly is engineered to meet OEM specifications for fit and function. The part number 623820 identifies this exact assembly, making it easier to source the correct replacement for your vehicle.

Common Applications and Issues Addressed

• Overheating engine due to insufficient radiator cooling
• Air conditioning system inefficiency caused by condenser fan failure
• Fan motor or blade damage leading to reduced airflow
• Electrical connector issues affecting fan operation
• Shroud damage impacting airflow direction and cooling effectiveness

Installation Notes and Tips

• Ensure vehicle compatibility by verifying make, model, and year before installation
• Disconnect the battery before removing the old fan assembly to prevent electrical hazards
• Handle the PA+GF shroud and fan blades carefully to avoid damage during installation
• Check the connector terminals for corrosion or damage and clean if necessary
• Secure all mounting points firmly to prevent vibration and noise

Quality Assurance and Warranty

TYC manufactures this dual radiator and condenser fan assembly to meet or exceed OEM standards for durability and performance. The use of reinforced PA+GF materials ensures resistance to heat and mechanical stress. While specific warranty details may vary, TYC typically offers coverage against defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
