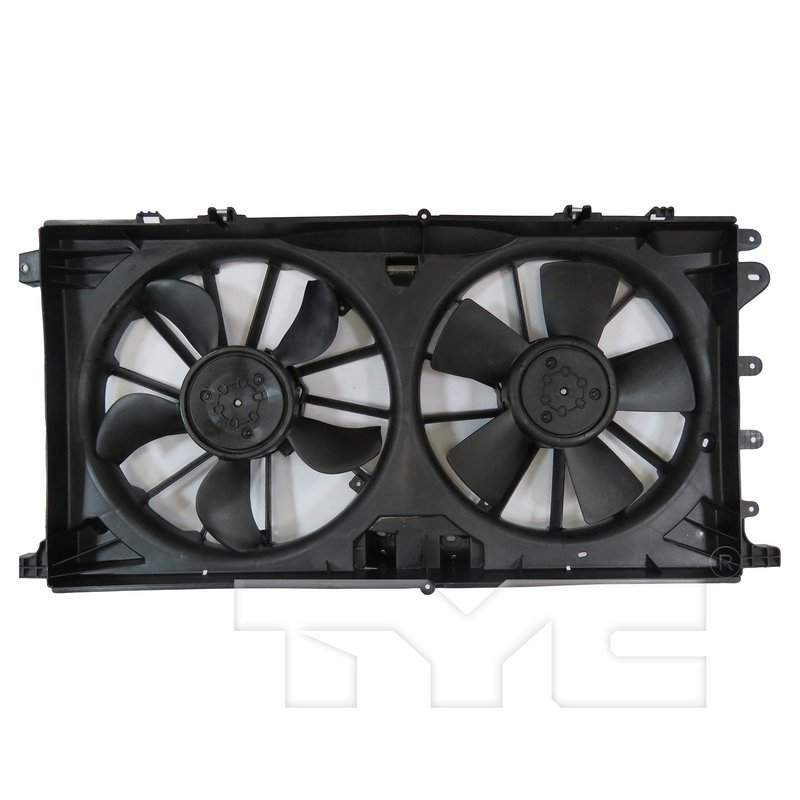

TYC 624570 Dual Radiator and Condenser Fan Assembly
| Brand | TYC 624570 |
|---|---|
| Configuration | Dual radiator and condenser fan assembly |
| Shroud Included | Yes |
| Shroud Material | Pa + gf |
| Fan Type | Dual |
| Connector Quantity | 2 |
| Connector Type | Male |
| Fan Blade Material | Pa + gf |
| Connector Terminal Quantity | 3 |
| Components Included | W/ brush less motor |
| Fits | Ford and Lincoln · 28 vehicles |
Dual fan assembly. Combines radiator and condenser cooling in one unit.
Shroud included. Helps direct airflow for more efficient cooling.
Brushless motor. Built with a brushless motor for smooth operation.
Cross-references Ford HL3Z-8C607-D and Partslink FO3115224 for the same application. See all 2.
Dual Cooling Fan Assembly for Ford Trucks
This TYC dual radiator and condenser fan assembly is built for Ford F-150, Expedition, and Lincoln Navigator applications that require direct cooling system replacement. Part number 624570 includes a shroud and brushless motor components for a clean OE-style fit and dependable airflow management.
- Dual radiator and condenser fan assembly
- Shroud included for integrated mounting
- Shroud material: PA + GF
- Dual fan design for radiator and condenser cooling
- 2 connectors, male type, with 3 terminals
- Fan blade material: PA + GF
- Includes brushless motor components
Fitment and Application Details
Compatible with 2022 Ford F-150, 2021 Ford F-150 from 09/22/2021, 2017-2020 Ford F-150, 2018-2020 Ford F-150 with ambient temp sensor, 2018-2020 Ford F-150 without ambient temp sensor, 2018-2020 Ford F-150 with brushless cooling fan, 2017 Ford F-150 with ambient temp sensor from 4/3/2017, 2017 Ford F-150 without ambient temp sensor with Hvy Duty or Max Duty, 2020-2021 Ford Expedition with Hvy Duty Radiator, 2018-2019 Ford Expedition with Hvy Duty Radiator, 2020-2021 Lincoln Navigator with Hvy Duty Radiator, and 2018-2019 Lincoln Navigator with Hvy Duty Radiator. This part cross-references Ford HL3Z-8C607-D and Partslink FO3115224 for the same application.
What This Assembly Helps Address
- Weak or uneven radiator fan operation
- Reduced condenser airflow during A/C operation
- Overheating caused by a failing fan motor or damaged shroud
- Noisy, worn, or nonresponsive cooling fan assembly
- Cooling system performance loss after fan assembly failure
Installation Notes
Verify vehicle equipment before ordering, especially ambient temperature sensor and heavy-duty radiator requirements on select Ford F-150, Expedition, and Lincoln Navigator models. Confirm connector style, terminal count, and fan configuration against the original assembly before installation. Part number 624570 is a direct replacement-style cooling fan assembly for applications listed above.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fitment focus and application-specific construction. Part number 624570 is built as a dual radiator and condenser fan assembly with a shroud and brushless motor components to match the listed vehicle requirements.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2022 | Ford | F-150 | XL | Crew Cab Pickup | 5.0L | V8 | — | N/A | — |
| 2021 | Ford | Expedition | Max Limited | Sport Utility | 3.5L | V6 | — | N/A | w/ Hvy Duty Radiator |
| 2021 | Ford | F-150 | XL | Crew Cab Pickup | 3.3L | V6 | — | N/A | From 09/22/2021 |
| 2021 | Lincoln | Navigator | L Black Label | Sport Utility | 3.5L | V6 | — | N/A | w/ Hvy Duty Radiator |
| 2020 | Ford | Expedition | King Ranch | Sport Utility | 3.5L | V6 | — | N/A | w/ Hvy Duty Radiator |
| 2020 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/ Ambient Temp Sensor; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2020 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/o Ambient Temp Sensor; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2020 | Ford | F-150 | — | — | 2.7L | V6 | — | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2020 | Ford | F-150 | Raptor | — | — | — | GAS | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2020 | Ford | F-150 | — | — | 5.0L | V8 | — | N/A | w/ Brushless Cooling Fan; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2020 | Lincoln | Navigator | Base | Sport Utility | 3.5L | V6 | — | N/A | w/ Hvy Duty Radiator |
| 2019 | Ford | Expedition | — | — | — | — | GAS | N/A | w/ Hvy Duty Radiator; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2019 | Ford | F-150 | — | — | 2.7L | V6 | — | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2019 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/o Ambient Temp Sensor; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2019 | Ford | F-150 | Raptor | — | — | — | GAS | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2019 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/ Ambient Temp Sensor; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2019 | Ford | F-150 | — | — | 5.0L | V8 | — | N/A | w/ Brushless Cooling Fan; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2019 | Lincoln | Navigator | — | — | — | — | GAS | N/A | w/ Hvy Duty Radiator; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Ford | Expedition | — | — | — | — | GAS | N/A | w/ Hvy Duty Radiator; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/ Ambient Temp Sensor; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Ford | F-150 | — | — | 5.0L | V8 | — | N/A | w/ Brushless Cooling Fan; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/o Ambient Temp Sensor; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Ford | F-150 | — | — | 2.7L | V6 | — | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Ford | F-150 | Raptor | — | — | — | GAS | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2018 | Lincoln | Navigator | — | — | — | — | GAS | N/A | w/ Hvy Duty Radiator; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2017 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/o Ambient Temp Sensor; w/ Hvy Duty or Max Duty; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2017 | Ford | F-150 | Raptor | — | — | — | GAS | N/A | Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
| 2017 | Ford | F-150 | — | — | 3.5L | V6 | — | N/A | w/ Ambient Temp Sensor; Remarks: From 4/3/2017; Fan Type: Dual; Configuration: Dual Radiator and Condenser Fan Assembly; Components Included: w/ Brush less motor |
