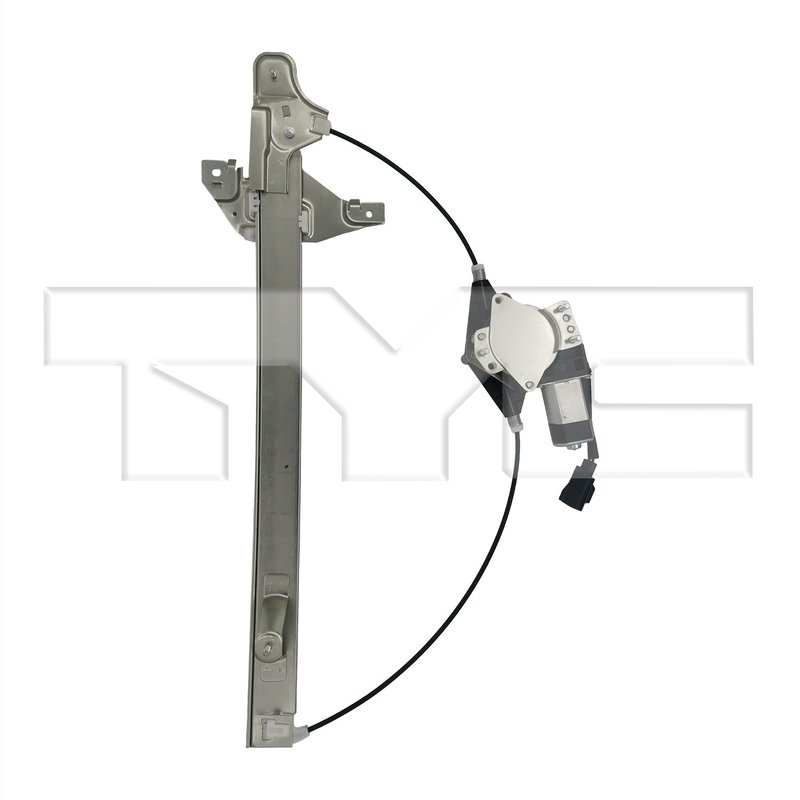

TYC 660764 Window Motor and Regulator Assembly - Rear Left

Rear Left Window Motor and Regulator Assembly

This TYC window motor and regulator assembly is built for the rear left door on select Ford Super Duty trucks with power windows. It is a 12-volt, standard motor assembly with a 2-pin main connector and motor included for a direct replacement approach.

• Brand: TYC
• Part number: 660764
• Voltage: 12V
• Mounting position: Rear left
• Motor included: Yes
• Motor type: Standard
• Anti-pinch motor: No
• One-touch: No
• Main connector: 2 pins
• Other side reference: 660765

Fitment Details

Compatible with 2013-2016 Ford F-250 Super Duty, rear left, power windows. Compatible with 2013-2016 Ford F-350 Super Duty, rear left, power windows. This part cross-references Dorman OE Solutions 751-513 for the same application.

Product Description

TYC 660764 is a rear left window motor and regulator assembly for Ford F-250 Super Duty and Ford F-350 Super Duty models equipped with power windows. The assembly uses a standard motor design, operates on 12 volts, and features a 2-pin main connector for the specified rear left location. If you are replacing a worn or non-functioning rear window regulator on a 2013-2016 Ford F-250 Super Duty or 2013-2016 Ford F-350 Super Duty, this part provides the correct position-specific replacement. Part number 660764 is also identified by OE-style interchange references for the same application.

Common Issues This Part Can Address

• Rear left window does not move up or down
• Window movement is slow, uneven, or intermittent
• Motor runs but the glass does not respond properly
• Regulator wear causes binding or poor window travel
• Electrical failure at the rear left window assembly

Installation Notes and Tips

Verify rear left fitment before installation and confirm the connector style matches the vehicle harness. Check the window glass, tracks, and door hardware for wear or damage before installing the new assembly. Because this unit is specified for power window applications, it should be matched to the correct rear left door configuration on the Ford F-250 Super Duty and Ford F-350 Super Duty.

Quality Assurance

TYC manufactures replacement electrical and body components to meet application-specific fitment requirements. Confirm part number 660764 against the vehicle’s original rear left window assembly and OE interchange references before purchase.
