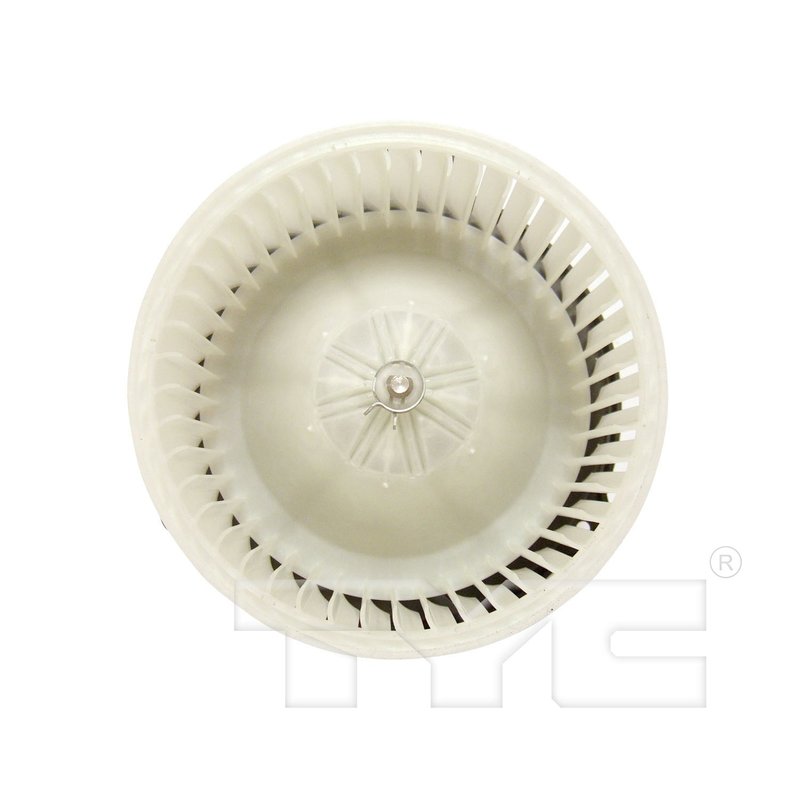

TYC 700056 HVAC Blower Motor - Front

Overview of TYC 700056 HVAC Blower Motor for Toyota Corolla

The TYC 700056 HVAC blower motor is designed specifically for Toyota Corolla models, providing reliable airflow for your vehicle's heating and cooling system. Operating at 13.5 volts with a counterclockwise rotation, this motor ensures consistent performance and compatibility with your Corolla's HVAC system.

• Voltage: 13.5v for optimal electrical compatibility
• Current draw: 16.5 amps ensuring efficient power usage
• Rotation direction: Counterclockwise (CCW) matching OEM specifications
• Stall speed: 3150 RPM for steady airflow
• Connector configuration: Single connector with 2 pins for secure electrical connection

Technical Details and Performance

The TYC 700056 blower motor operates at a stall speed of 3150 RPM, delivering consistent airflow to maintain cabin comfort in your Toyota Corolla. Its 13.5-volt rating aligns with standard automotive electrical systems, while the 16.5-amp current draw balances power consumption and performance. The motor’s counterclockwise rotation direction matches the original equipment manufacturer (OEM) design, ensuring seamless integration without modification. Featuring a single connector with two pins, installation is straightforward and maintains reliable electrical contact.

Compatible Toyota Corolla Models

This HVAC blower motor is compatible with various Toyota Corolla models requiring a 13.5-volt motor with a counterclockwise rotation. Confirm fitment by matching the part number 700056 to your vehicle’s specifications to ensure proper operation and fit.

Common Issues Addressed by the TYC 700056 Blower Motor

• Inconsistent or weak airflow from the HVAC system
• Blower motor failure causing no air circulation
• Unusual noises or vibrations during HVAC operation
• Electrical issues related to connector pin damage or corrosion
• Overheating or stalling of the blower motor

Installation Notes and Tips

When installing the TYC 700056 blower motor, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Verify the connector pins are clean and undamaged before connecting. The motor’s counterclockwise rotation must be matched to the original motor to avoid improper airflow. Follow Toyota Corolla service manual instructions for removal and installation to maintain system integrity.

Quality Assurance and Warranty

TYC manufactures this blower motor to meet or exceed OEM standards for durability and performance. The part number 700056 undergoes quality control testing to ensure reliable operation within Toyota Corolla HVAC systems. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary.
