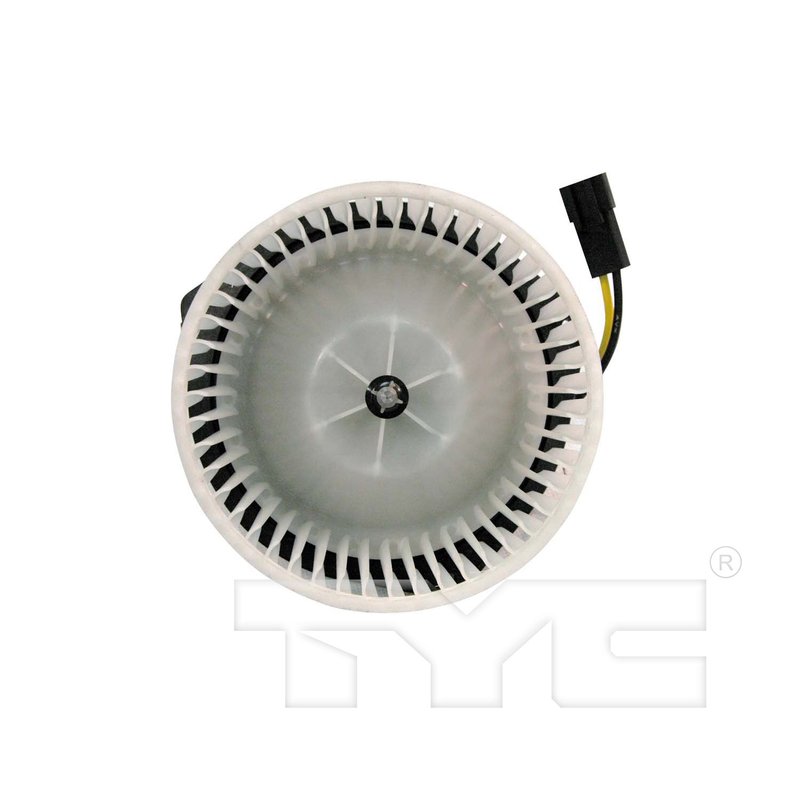

TYC 700102 HVAC Blower Motor - Front

Overview of TYC HVAC Blower Motor 700102

The TYC HVAC Blower Motor 700102 is designed to restore proper airflow in your vehicle's heating and cooling system. Engineered for select Dodge models, this blower motor operates at 13.5 volts and features a counterclockwise rotation to match factory specifications.

• Voltage: 13.5v for consistent electrical performance
• Current draw: 23.0 amps ensuring reliable operation
• Rotation direction: Counterclockwise (CCW) to fit OEM requirements
• Stall speed: 3300 RPM for effective air circulation
• Connector configuration: Single connector with 2 pins

Technical Details and Specifications

This HVAC blower motor, part number 700102, is built to meet the electrical and mechanical demands of Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models. The motor’s 13.5-volt rating aligns with standard automotive electrical systems, while the 23-amp current ensures sufficient power for consistent blower operation. The counterclockwise rotation direction and 3300 RPM stall speed are critical for compatibility and performance within the HVAC system. The motor includes a single main connector with two pins, simplifying installation and ensuring a secure electrical connection.

Compatible Vehicles and Applications

This blower motor is compatible with the following Dodge vehicles:

• Dodge B1500
• Dodge B2500
• Dodge B3500
• Dodge Ram 1500 Van
• Dodge Ram 2500 Van
• Dodge Ram 3500 Van

It is designed to replace faulty or worn blower motors in these models, restoring HVAC system functionality.

Common Issues Addressed by TYC HVAC Blower Motor 700102

• Weak or no airflow from HVAC vents
• Intermittent blower motor operation
• Unusual noises coming from the blower motor area
• HVAC blower motor failure due to electrical issues
• Inconsistent cabin temperature regulation

Installation Notes and Tips

When installing the TYC HVAC Blower Motor 700102, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the rotation direction and connector pin count match the original motor. The single 2-pin connector should fit securely without modification. Proper alignment and secure mounting are essential to avoid vibration and premature wear. Consult the vehicle’s service manual for detailed removal and installation procedures specific to Dodge B1500, B2500, B3500, and Ram Van models.

Quality Assurance and Warranty

TYC manufactures this blower motor to meet or exceed OEM standards for durability and performance. The part number 700102 undergoes rigorous testing to ensure electrical and mechanical reliability. While specific warranty terms may vary, TYC typically offers coverage against defects in materials and workmanship. Refer to the product documentation for detailed warranty information.
