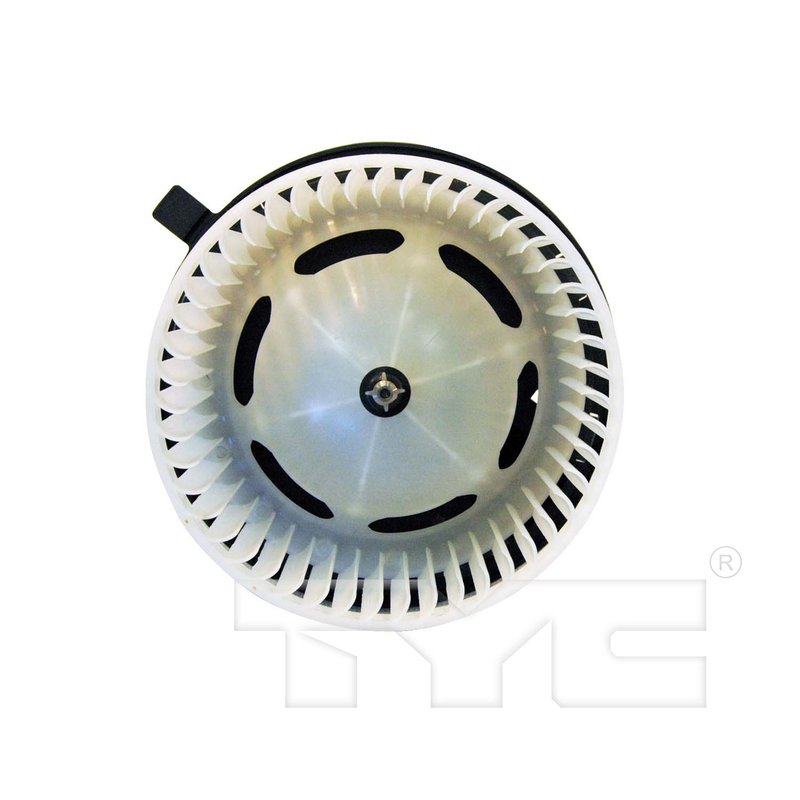

TYC 700154 HVAC Blower Motor - Front

Overview of TYC HVAC Blower Motor 700154 for Jeep Liberty and Wrangler

The TYC HVAC Blower Motor 700154 is designed to restore proper airflow in the heating and cooling system of Jeep Liberty and Wrangler models. Operating at 13.5 volts with a clockwise rotation, this blower motor ensures consistent performance and reliable climate control.

• Voltage: 13.5v for stable electrical operation
• Current draw: 15.0 amps for efficient power consumption
• Rotation direction: Clockwise (Cw) to match OEM specifications
• Stall speed: 3370 RPM for optimal airflow
• Connector configuration: Single connector with 2 pins

Technical Details and Specifications

This HVAC blower motor (part number 700154) is engineered to meet the electrical and mechanical requirements of Jeep Liberty and Wrangler vehicles. The motor runs on a 13.5-volt system and draws 15 amps of current, providing sufficient power to maintain cabin comfort. Its clockwise rotation direction aligns with factory-installed motors, ensuring compatibility and proper function. The stall speed of 3370 RPM supports effective air circulation through the HVAC system. The motor features a single connector with two pins, simplifying installation and electrical connection.

Compatible Vehicles and Applications

This blower motor is compatible with the following Jeep models:

• Jeep Liberty
• Jeep Wrangler

It is intended for use in HVAC systems requiring a blower motor with these specific electrical and mechanical characteristics. The TYC 700154 blower motor replaces faulty or worn-out motors to restore heating and cooling performance.

Common Issues Addressed by This Blower Motor

• Inconsistent or weak airflow from HVAC vents
• Blower motor failure causing no air circulation
• Unusual noises or vibrations from the blower motor area
• HVAC system overheating due to motor stall
• Electrical issues related to connector pin damage or corrosion

Installation Notes and Tips

Installation of the TYC HVAC Blower Motor 700154 requires basic automotive electrical and mechanical skills. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical shorts. Verify the connector pin count and orientation match the existing wiring harness. Properly secure the motor in the HVAC housing to avoid vibrations and noise. After installation, test the blower motor operation at various fan speeds to confirm correct function.

Quality Assurance and Warranty Information

TYC manufactures this blower motor to meet or exceed OEM standards for fit, form, and function. The part number 700154 undergoes quality control testing to ensure reliable performance in Jeep Liberty and Wrangler vehicles. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary by region.
