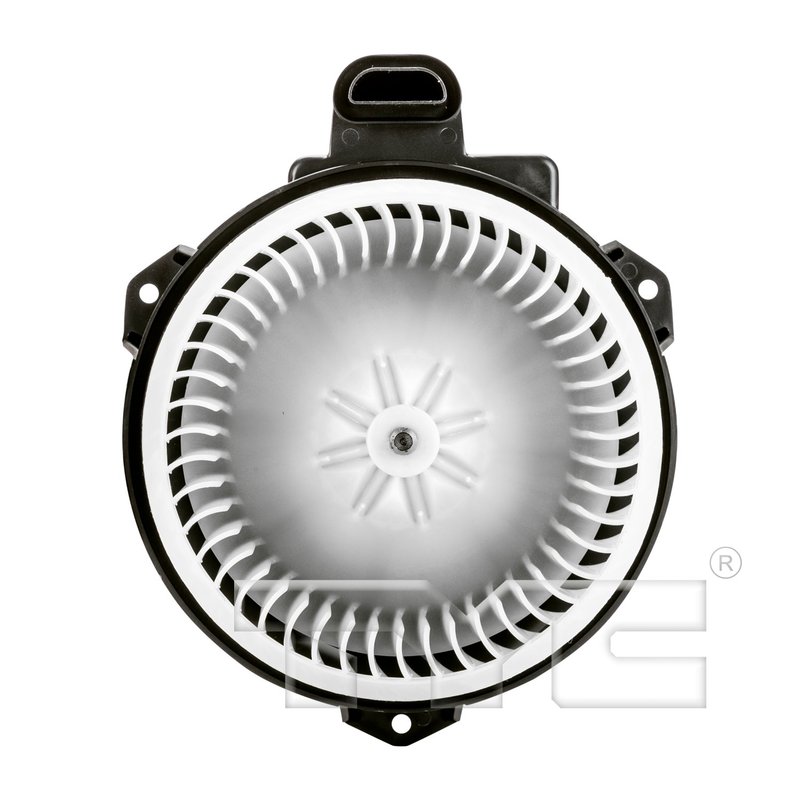

TYC 700249 HVAC Blower Motor - Front

Overview of the TYC 700249 HVAC Blower Motor

The TYC 700249 HVAC blower motor is designed to provide reliable airflow for heating and cooling systems in select Toyota and Scion vehicles. Engineered to operate at 13.5 volts with a clockwise rotation, this motor ensures consistent performance for your vehicle's climate control needs.

• Voltage: 13.5 volts for stable electrical operation
• Current draw: 19.0 amps for efficient power consumption
• Rotation direction: Clockwise (Cw) to match OEM specifications
• Stall speed: 3100 RPM for optimal airflow
• Compatible with multiple Toyota and Scion models

Technical Details and Performance

This HVAC blower motor operates at a nominal voltage of 13.5 volts, which aligns with standard automotive electrical systems. Drawing 19.0 amps, it balances power consumption with effective motor torque. The clockwise rotation direction matches the original equipment manufacturer (OEM) design, ensuring proper fit and function within the HVAC housing. With a stall speed of 3100 RPM, the motor delivers sufficient airflow to maintain cabin comfort in various driving conditions.

Compatible Vehicles and Fitment

The TYC 700249 blower motor is compatible with the following vehicles:

• Toyota Corolla (including Corolla iM)
• Toyota Prius and Prius V
• Toyota RAV4
• Scion iM

When replacing the blower motor in these models, using part number 700249 ensures proper fitment and performance.

Common Applications and Problem Resolution

This blower motor is used to maintain airflow within the HVAC system, supporting heating, ventilation, and air conditioning functions. It addresses issues such as:

• Weak or inconsistent airflow from vents
• Unusual noises or vibrations during blower operation
• Complete failure of the blower motor to operate
• Intermittent blower motor function
• Overheating or electrical faults related to the blower motor

Installation Notes and Tips

Installation of the TYC 700249 blower motor should be performed with the vehicle's battery disconnected to prevent electrical hazards. Verify the rotation direction and electrical connections match the original motor. Ensure the blower motor housing is clean and free of debris before installation to avoid premature wear. Properly secure all mounting points and test the motor operation before reassembling the dashboard components.

Quality Assurance and Warranty

TYC manufactures this blower motor to meet or exceed OEM standards for durability and performance. The part number 700249 undergoes quality control testing to ensure reliable operation. While specific warranty terms may vary, TYC typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for detailed warranty information.
