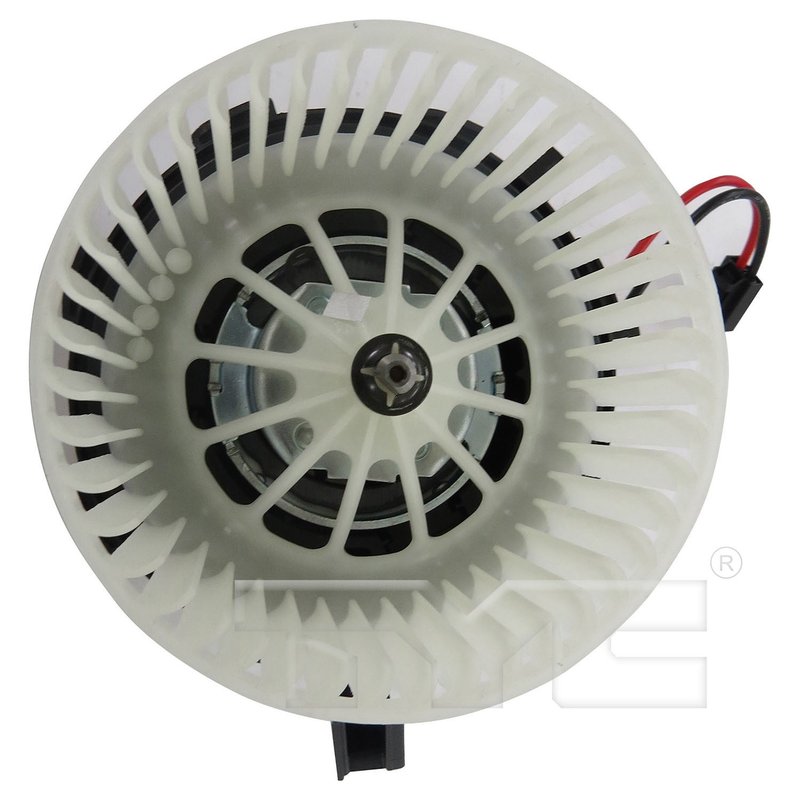

TYC 700301 HVAC Blower Motor - Front

Overview of TYC HVAC Blower Motor 700301 for Audi Models

The TYC HVAC Blower Motor 700301 is designed to restore proper airflow in your Audi's heating and cooling system. Engineered for compatibility with various Audi models, this motor ensures reliable operation and consistent cabin comfort.

• Voltage: 14 volts for optimal electrical performance
• Connector Pins: 2 pins on the main connector for secure connection
• Single connector design for straightforward installation
• Standard motor type with clockwise rotation direction
• Current draw: 12.3 amps plus 1.5 amps for efficient power use
• Noise level rated at 82 dB for typical operational sound
• Stall speed approximately 4120 ±150 RPM for consistent airflow
• Compatible with multiple Audi models including A4, A4 allroad, A4 Quattro, A5, A5 Quattro, Q5, S4, S5, and SQ5

Technical Details and Performance

This TYC blower motor operates at 14 volts and features a standard motor type with a clockwise rotation direction, matching the OEM specifications for the listed Audi vehicles. The motor’s current rating of 12.3 amps plus an additional 1.5 amps ensures it can handle the electrical load required for effective HVAC operation. With a stall speed of approximately 4120 RPM, it maintains consistent airflow through the HVAC system. The noise level of 82 dB is within the expected range for blower motors, providing a balance between performance and cabin noise.

Compatible Audi Models and Applications

This blower motor is compatible with a range of Audi vehicles, including the A4, A4 allroad, A4 Quattro, A5, A5 Quattro, Q5, S4, S5, and SQ5. It is designed to replace the original blower motor in these models, ensuring proper fit and function. The part number 700301 corresponds directly to this application, making it a suitable replacement for HVAC blower motor issues in these vehicles.

Common Issues Addressed by TYC Blower Motor 700301

• Reduced or no airflow from the HVAC vents
• Unusual noise or rattling coming from the blower motor area
• Intermittent blower motor operation or failure to start
• Overheating or electrical issues related to the blower motor
• Inconsistent cabin temperature due to blower motor malfunction

Installation Notes and Tips

Installation of the TYC HVAC Blower Motor 700301 requires basic automotive electrical and mechanical skills. Ensure the vehicle’s battery is disconnected before beginning to avoid electrical hazards. The motor features a single connector with two pins, simplifying the wiring connection. Verify the rotation direction and mounting orientation to match the original motor. It is recommended to inspect the blower motor housing and related components for debris or damage during installation.

Quality Assurance and Warranty

TYC manufactures this blower motor to meet or exceed OEM standards for fit, form, and function. While no specific warranty details are provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or TYC’s official documentation for exact warranty terms.
