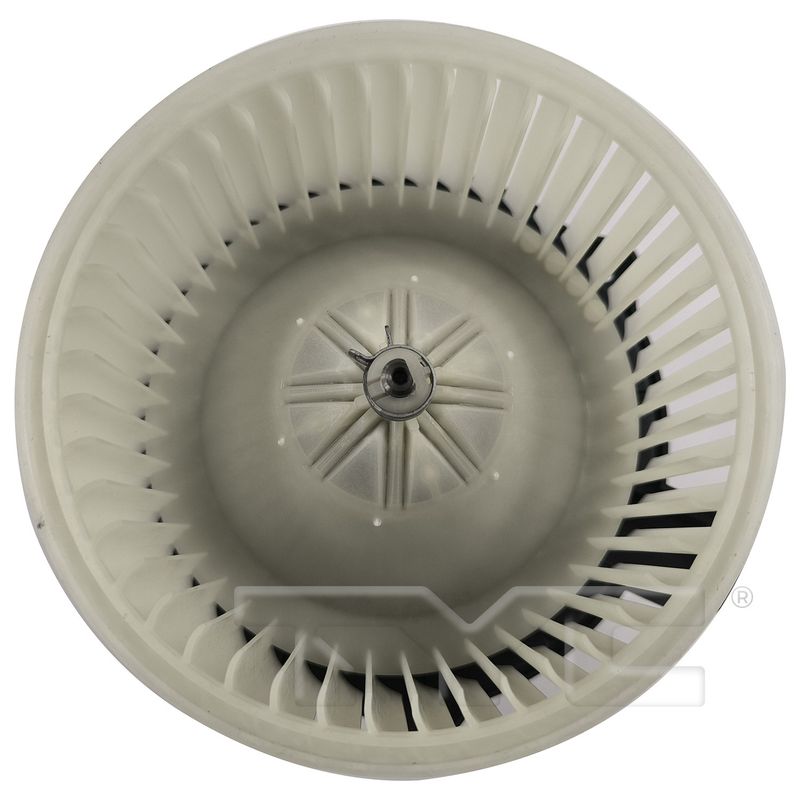

TYC 700381 HVAC Blower Motor
| Brand | TYC 700381 |
|---|---|
| Voltage | 13.5 |
| Connector Pins Qty On Main Connector | 2 |
| Connector Quantity | 1 |
| Control Module | No |
| Current (amps) | 17.9a±1.5a |
| Motor Type | Standard |
| Noise (db) | 106 |
| Rotation Direction | Ccw |
| Stall Speed Rpm | 3170±150 |
| Fits | Chevrolet · 9 vehicles |
Direct replacement. Standard blower motor design for straightforward HVAC service.
Electrical match. 13.5-volt unit with a 2-pin main connector and one interface.
Rotation specified. Counterclockwise operation with 3170 ±150 rpm stall speed.
Cross-references 42341642 and GM3126163 for the same application. See all 2.
Overview
TYC 700381 is an HVAC blower motor built for direct replacement service in compatible Chevrolet cabin air systems. It is specified with a 13.5-volt design, standard motor construction, and counterclockwise rotation for the listed applications.
Compatible with Chevrolet Bolt EV and Chevrolet Bolt EUV applications, this blower motor is identified by part number 700381 and cross-references GM3126163 and 42341642 for the same application.
Key Features
- 13.5-volt blower motor for HVAC air delivery
- Standard motor design for replacement service
- Counterclockwise rotation specification
- 2-pin main connector with one connector interface
- Rated at 17.9A ±1.5A with 3170 ±150 rpm stall speed
- TYC part number 700381 for catalog matching
Detailed Description
TYC 700381 is an HVAC blower motor for vehicles equipped with the listed cabin climate control setup. The motor uses a standard configuration, a 2-pin main connector, and no control module, making it a straightforward replacement for the original blower motor assembly in the specified Chevrolet Bolt EV and Chevrolet Bolt EUV applications. The electrical and rotational specifications help match the factory system requirements, while the 106 dB noise rating and stall speed data provide additional identification points for service selection.
Common Issues It Can Address
- Weak or inconsistent cabin airflow
- Blower motor noise or abnormal operation
- Motor failure that stops HVAC air movement
- Electrical mismatch during blower motor replacement
- Incorrect rotation or connector configuration on replacement parts
Installation Notes
Verify connector style, pin count, voltage, and rotation direction before installation. Confirm the vehicle application against part number 700381 and the listed fitment for Chevrolet Bolt EV and Chevrolet Bolt EUV models. Compare the original unit to the replacement to ensure the electrical connector and motor specification match the factory setup.
Quality Assurance
TYC supplies replacement HVAC components with application-specific specifications for service fitment. Part number 700381 is cataloged for the listed Chevrolet applications and cross-references GM3126163 and 42341642 for the same use.
| Year | Make | Model | Submodel | Body Type | Notes |
|---|---|---|---|---|---|
| 2023 | Chevrolet | Bolt EUV | LT | Sport Utility | — |
| 2023 | Chevrolet | Bolt EV | LT | Hatchback | — |
| 2022 | Chevrolet | Bolt EUV | Premier | Sport Utility | — |
| 2022 | Chevrolet | Bolt EV | LT | Hatchback | — |
| 2021 | Chevrolet | Bolt EV | LT | Hatchback | — |
| 2020 | Chevrolet | Bolt EV | LT | Hatchback | — |
| 2019 | Chevrolet | Bolt EV | Base | Hatchback | — |
| 2018 | Chevrolet | Bolt EV | Premier | Hatchback | — |
| 2017 | Chevrolet | Bolt EV | LT | Hatchback | — |
