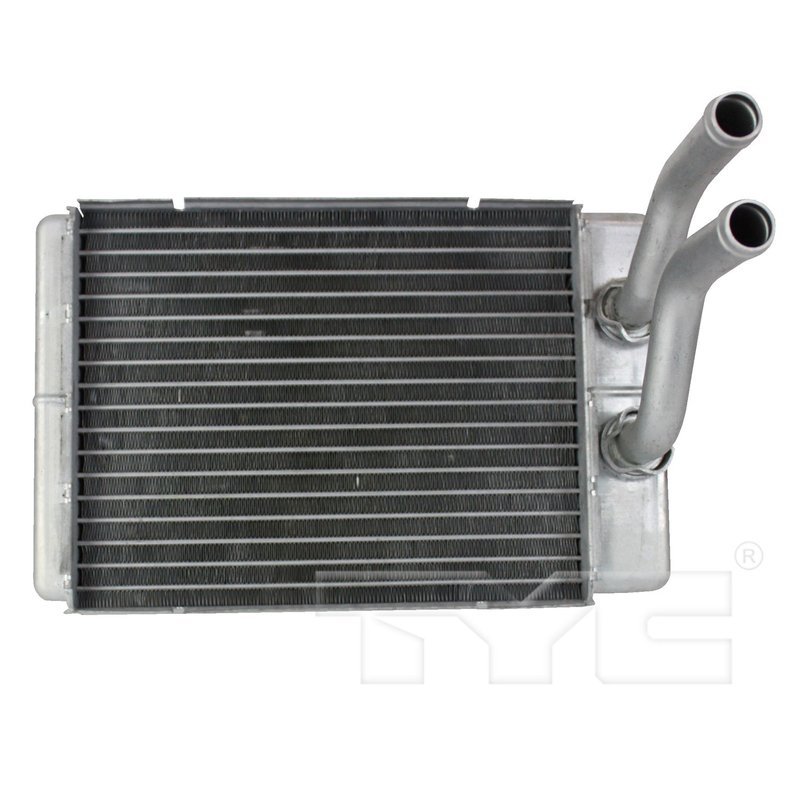

TYC 96017 HVAC Heater Core - view 1
TYC 96017 HVAC Heater Core - view 2
Part #: 96017

TYC 96017 HVAC Heater Core

N/A
⚙️ 171 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$44.84Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford and Mazda, Explorer, Ranger, B2300, B3000, B4000, Navajo, and Bronco II
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all HVAC Heater Core options

Overview of TYC HVAC Heater Core 96017

The TYC HVAC Heater Core 96017 is designed to provide reliable heating performance for select Ford and Mazda vehicles. Engineered with durable aluminum core material, this heater core ensures efficient heat transfer and long-lasting operation in your vehicle's HVAC system.

  • Core Material: Aluminum for enhanced heat conduction and corrosion resistance
  • Core Dimensions: 7.24 inches length, 5.80 inches height, 1.02 inches thickness
  • Top and Bottom Headers: 2.09 x 5.91 inches for secure fitment
  • Inlet and Outlet Connection Type: Hose clamp with 0.63 inch diameter for easy installation
  • Compatible with Ford and Mazda models including B2300, B3000, B4000, Bronco II, Explorer, Navajo, and Ranger

Detailed Product Description

The TYC 96017 heater core features an aluminum core that offers efficient heat transfer while resisting corrosion, which is critical for maintaining HVAC system performance. The core measures 7.24 inches in length, 5.80 inches in height, and 1.02 inches in thickness, fitting precisely within the HVAC housing of compatible vehicles. Both the top and bottom headers measure 2.09 by 5.91 inches, ensuring a secure and stable fit. The inlet and outlet connections use hose clamps with a 0.63 inch diameter, facilitating straightforward installation and reliable coolant flow.

Compatible Vehicles and Applications

  • Ford B2300, B3000, B4000
  • Ford Bronco II, Explorer, Ranger
  • Mazda Navajo

This heater core is specifically designed for these models, providing a direct replacement that meets OEM specifications.

Common Issues Addressed by TYC Heater Core 96017

  • Insufficient cabin heating due to clogged or leaking heater core
  • Coolant leaks inside the vehicle causing foggy windows or damp carpets
  • Overheating engine caused by compromised heater core function
  • Unpleasant odors from coolant leaks within the HVAC system
  • Reduced HVAC system efficiency impacting passenger comfort

Installation Notes and Tips

Installation of the TYC 96017 heater core requires draining the vehicle’s cooling system and removing the dashboard or HVAC housing to access the core. Ensure all hose clamps are securely fastened to prevent leaks. It is recommended to flush the cooling system before installation to remove debris and contaminants. Proper reassembly and coolant refill are essential to restore full HVAC functionality.

Quality Assurance and Warranty

TYC manufactures this heater core to meet or exceed OEM standards, using high-quality aluminum for durability and performance. The part number 96017 is backed by TYC’s quality control processes to ensure fit, form, and function. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary.

BrandTYC
Part Number96017
Bottom Header2.09x5.91
Core Height (in)5.80
Core Length (in)7.24
Core MaterialAluminum
Core Thickness (in)1.02
Inlet Connection TypeHose Clamp
Inlet Diameter (in)0.63
Outlet Connection TypeHose Clamp
Outlet Diameter (in)0.63
Top Header2.09x5.91

This part fits 171 vehicles. Search below:
