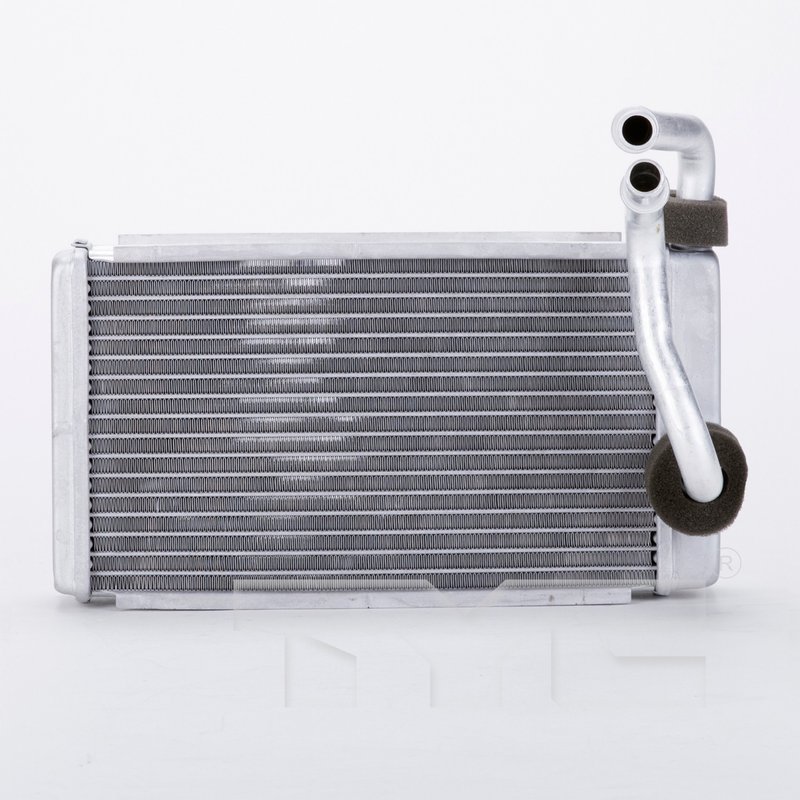

TYC 96114 HVAC Heater Core - Front

Name: TYC 96114 HVAC Heater Core - Front
Brand: TYC
SKU: FQPX-96114
Price: 58.30 USD
Availability: InStock

Front

⚙️ 106 vehicles fit this part

🔍

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$58.30Free Shipping

🚚Free ShippingNo Cost to Continental U.S.

🔄Free Returns*Wrong fit? No cost

🛡️60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

🔥

✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.

✅OE Direct Replacement — Bolt-on fit, no modifications needed

🚗Fitment: Ford and Lincoln, Expedition, F-150, Mark LT, and Navigator

🔄Easy Returns — Return within 60 days for a full refund

🚚Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? Click here for all HVAC Heater Core options

Reliable HVAC Heater Core for Ford and Lincoln Vehicles

The TYC 96114 HVAC heater core is engineered to restore efficient heating performance in your Ford Expedition, F-150, Lincoln Mark LT, or Navigator. Crafted from durable aluminum, this heater core ensures consistent heat transfer and long-lasting operation.

Core material constructed from corrosion-resistant aluminum
Core dimensions: 9.45 inches length, 5.48 inches height, 1.57 inches thickness
Top and bottom headers sized at 2.01 by 5.84 inches for precise fitment
Inlet and outlet connections designed for 0.63 inch hose clamp fittings
Compatible with specific Ford and Lincoln models including Expedition, F-150, Mark LT, and Navigator

Detailed Product Specifications

The TYC 96114 heater core features an aluminum core that provides efficient heat exchange while resisting corrosion over time. Its core measures 9.45 inches in length, 5.48 inches in height, and 1.57 inches in thickness, designed to fit seamlessly within the HVAC system of your vehicle. Both the top and bottom headers measure 2.01 by 5.84 inches, ensuring proper alignment and secure installation. The inlet and outlet connections utilize 0.63 inch hose clamp fittings, facilitating straightforward hose attachment and reliable coolant flow.

Applications and Common Issues Addressed

Restores heating functionality in Ford Expedition and F-150 HVAC systems
Replaces leaking or clogged heater cores in Lincoln Mark LT and Navigator
Eliminates coolant odors inside the cabin caused by faulty heater cores
Prevents engine overheating related to heater core malfunctions
Improves overall climate control performance in compatible vehicles

Installation Notes and Tips

When installing the TYC 96114 heater core, ensure the vehicle’s cooling system is properly drained to avoid spills. Verify hose clamp sizes match the 0.63 inch inlet and outlet diameters for a secure fit. Take care to align the top and bottom headers correctly to prevent leaks. It is recommended to inspect and replace any worn hoses or clamps during installation to maintain system integrity.

Quality Assurance and Warranty

TYC manufactures the 96114 heater core to meet or exceed OEM specifications for fit, form, and function. The aluminum core material offers durability and resistance to corrosion, contributing to reliable HVAC system performance. While specific warranty details are not provided, TYC products typically come with a limited warranty covering defects in materials and workmanship.

Brand	TYC
Part Number	96114
Core Material	Aluminum
Bottom Header	2.01x5.84
Core Height (in)	5.48
Core Length (in)	9.45
Core Thickness (in)	1.57
Inlet Connection Type	Hose clamp
Inlet Diameter (in)	0.63
Outlet Connection Type	Hose clamp
Outlet Diameter (in)	0.63
Top Header	2.01x5.84

This part fits 106 vehicles. Search below:

Year	Make	Model	Submodel	Body Type	Position
2008	Ford	F-150	Lariat	Crew Cab Pickup	N/A
2008	Ford	F-150	THE 60TH ANNIVERSARY EDITION	Extended Cab Pickup	N/A
2008	Ford	F-150	FX2	Extended Cab Pickup	N/A
2008	Ford	F-150	THE 60TH ANNIVERSARY EDITION	Crew Cab Pickup	N/A
2008	Ford	F-150	XL	Extended Cab Pickup	N/A
2008	Ford	F-150	XL	Standard Cab Pickup	N/A
2008	Ford	F-150	THE 60TH ANNIVERSARY EDITION	Standard Cab Pickup	N/A
2008	Ford	F-150	FX4	Crew Cab Pickup	N/A
2008	Ford	F-150	Limited	Crew Cab Pickup	N/A
2008	Ford	F-150	King Ranch	Crew Cab Pickup	N/A
2008	Ford	F-150	STX	Standard Cab Pickup	N/A
2008	Ford	F-150	FX4	Standard Cab Pickup	N/A
2008	Ford	F-150	XLT	Standard Cab Pickup	N/A
2008	Ford	F-150	STX	Extended Cab Pickup	N/A
2008	Ford	F-150	XLT	Crew Cab Pickup	N/A
2008	Ford	F-150	XL	Crew Cab Pickup	N/A
2008	Ford	F-150	FX2	Crew Cab Pickup	N/A
2008	Ford	F-150	Lariat	Extended Cab Pickup	N/A
2008	Ford	F-150	FX4	Extended Cab Pickup	N/A
2008	Ford	F-150	Harley-Davidson Edition	Crew Cab Pickup	N/A
2008	Ford	F-150	FX2	Standard Cab Pickup	N/A
2008	Ford	F-150	XLT	Extended Cab Pickup	N/A
2008	Lincoln	Mark LT		Crew Cab Pickup	N/A
2007	Ford	F-150	FX2	Extended Cab Pickup	N/A
2007	Ford	F-150	FX4	Crew Cab Pickup	N/A
2007	Ford	F-150	King Ranch	Crew Cab Pickup	N/A
2007	Ford	F-150	Lariat	Crew Cab Pickup	N/A
2007	Ford	F-150	XLT	Crew Cab Pickup	N/A
2007	Ford	F-150	STX	Extended Cab Pickup	N/A
2007	Ford	F-150	XL	Extended Cab Pickup	N/A
2007	Ford	F-150	XLT	Extended Cab Pickup	N/A
2007	Ford	F-150	STX	Standard Cab Pickup	N/A
2007	Ford	F-150	XL	Standard Cab Pickup	N/A
2007	Ford	F-150	XLT	Standard Cab Pickup	N/A
2007	Ford	F-150	FX2	Crew Cab Pickup	N/A
2007	Ford	F-150	Lariat	Extended Cab Pickup	N/A
2007	Ford	F-150	FX4	Extended Cab Pickup	N/A
2007	Ford	F-150	FX4	Standard Cab Pickup	N/A
2007	Ford	F-150	Harley-Davidson Edition	Crew Cab Pickup	N/A
2007	Lincoln	Mark LT		Crew Cab Pickup	N/A
2006	Ford	Expedition	XLT	Sport Utility	Front
2006	Ford	Expedition	Limited	Sport Utility	Front
2006	Ford	Expedition	XLS	Sport Utility	Front
2006	Ford	Expedition	XLT Sport	Sport Utility	Front
2006	Ford	Expedition	Eddie Bauer	Sport Utility	Front
2006	Ford	Expedition	King Ranch	Sport Utility	Front
2006	Ford	F-150	FX4	Standard Cab Pickup	N/A
2006	Ford	F-150	Harley-Davidson Edition	Extended Cab Pickup	N/A
2006	Ford	F-150	STX	Extended Cab Pickup	N/A
2006	Ford	F-150	Lariat	Extended Cab Pickup	N/A
2006	Ford	F-150	XL	Standard Cab Pickup	N/A
2006	Ford	F-150	FX4	Crew Cab Pickup	N/A
2006	Ford	F-150	King Ranch	Crew Cab Pickup	N/A
2006	Ford	F-150	XL	Extended Cab Pickup	N/A
2006	Ford	F-150	STX	Standard Cab Pickup	N/A
2006	Ford	F-150	XLT	Extended Cab Pickup	N/A
2006	Ford	F-150	XLT	Standard Cab Pickup	N/A
2006	Ford	F-150	Lariat	Crew Cab Pickup	N/A
2006	Ford	F-150	XLT	Crew Cab Pickup	N/A
2006	Ford	F-150	FX4	Extended Cab Pickup	N/A
2006	Lincoln	Mark LT		Crew Cab Pickup	N/A
2006	Lincoln	Navigator	Ultimate	Sport Utility	Front
2006	Lincoln	Navigator	Luxury	Sport Utility	Front
2005	Ford	Expedition	XLT	Sport Utility	Front
2005	Ford	Expedition	Eddie Bauer	Sport Utility	Front
2005	Ford	Expedition	King Ranch	Sport Utility	Front
2005	Ford	Expedition	Limited	Sport Utility	Front
2005	Ford	Expedition	XLS	Sport Utility	Front
2005	Ford	F-150	FX4	Standard Cab Pickup	N/A
2005	Ford	F-150	XLT	Standard Cab Pickup	N/A
2005	Ford	F-150	XL	Standard Cab Pickup	N/A
2005	Ford	F-150	FX4	Extended Cab Pickup	N/A
2005	Ford	F-150	XL	Extended Cab Pickup	N/A
2005	Ford	F-150	Lariat	Crew Cab Pickup	N/A
2005	Ford	F-150	STX	Extended Cab Pickup	N/A
2005	Ford	F-150	XLT	Extended Cab Pickup	N/A
2005	Ford	F-150	King Ranch	Crew Cab Pickup	N/A
2005	Ford	F-150	STX	Standard Cab Pickup	N/A
2005	Ford	F-150	Lariat	Extended Cab Pickup	N/A
2005	Ford	F-150	STX	Crew Cab Pickup	N/A
2005	Ford	F-150	XLT	Crew Cab Pickup	N/A
2005	Ford	F-150	FX4	Crew Cab Pickup	N/A
2005	Lincoln	Navigator	Base	Sport Utility	Front
2005	Lincoln	Navigator	Ultimate	Sport Utility	Front
2004	Ford	Expedition	XLT	Sport Utility	Front
2004	Ford	Expedition	Eddie Bauer	Sport Utility	Front
2004	Ford	Expedition	NBX	Sport Utility	Front
2004	Ford	Expedition	XLS	Sport Utility	Front
2004	Ford	Expedition	XLT Sport	Sport Utility	Front
2004	Ford	F-150	FX4	Standard Cab Pickup	N/A
2004	Ford	F-150	STX	Extended Cab Pickup	N/A
2004	Ford	F-150	XL	Extended Cab Pickup	N/A
2004	Ford	F-150	FX4	Crew Cab Pickup	N/A
2004	Ford	F-150	Lariat	Crew Cab Pickup	N/A
2004	Ford	F-150	Lariat	Extended Cab Pickup	N/A
2004	Ford	F-150	STX	Standard Cab Pickup	N/A
2004	Ford	F-150	XLT	Extended Cab Pickup	N/A
2004	Ford	F-150	FX4	Extended Cab Pickup	N/A
2004	Ford	F-150	XL	Standard Cab Pickup	N/A
2004	Ford	F-150	XLT	Crew Cab Pickup	N/A
2004	Ford	F-150	XLT	Standard Cab Pickup	N/A
2004	Lincoln	Navigator	Base	Sport Utility	Front
2004	Lincoln	Navigator	Ultimate	Sport Utility	Front
2003	Ford	Expedition	XLT	Sport Utility	Front
2003	Ford	Expedition	Eddie Bauer	Sport Utility	Front
2003	Lincoln	Navigator	Base	Sport Utility	Front

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

9010451

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
