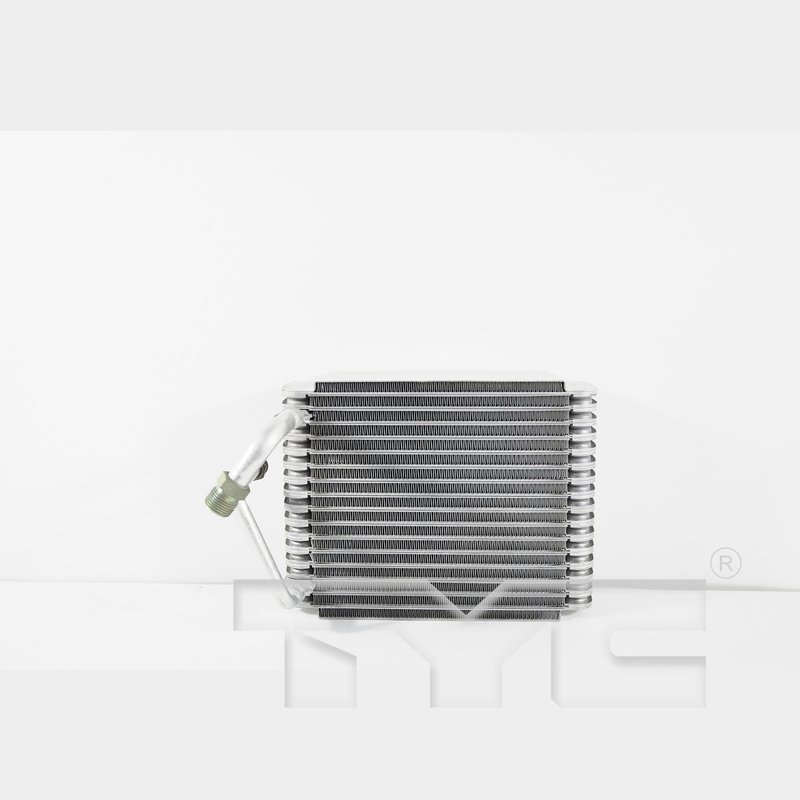

TYC 97123 A/C Evaporator Core - Front

Reliable A/C Evaporator Core for Ford E-Series Vehicles

The TYC 97123 A/C evaporator core is designed specifically for Ford E-150, E-250, and E-350 Econoline models. Engineered with a tube and fin configuration, this evaporator core ensures efficient heat exchange and consistent cabin cooling performance.

• Tube & fin configuration for effective heat dissipation
• Core dimensions: 7.95 inches height, 10.55 inches length, 3.54 inches thickness
• Threaded inlet fitting with 0.46-inch diameter
• Threaded outlet fitting with 0.57-inch diameter
• Compatible with Ford E-150, E-150 Club Wagon, E-150 Econoline, E-250, E-350 Club Wagon, and related Econoline models

Technical Details and Specifications

The TYC 97123 A/C evaporator core features a robust tube and fin design that maximizes airflow and cooling efficiency within the HVAC system. Its core dimensions—7.95 inches in height, 10.55 inches in length, and 3.54 inches in thickness—are tailored to fit the HVAC housing of Ford E-Series vans. The inlet and outlet fittings are threaded, measuring 0.46 inches and 0.57 inches in diameter respectively, ensuring secure connections to the vehicle’s refrigerant lines. This precise fitment supports optimal refrigerant flow and prevents leaks, maintaining the integrity of the air conditioning system.

Compatible Ford E-Series Models

This evaporator core is compatible with a range of Ford Econoline vehicles, including the E-150, E-150 Club Wagon, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, and E-350 Super Duty. The part number 97123 corresponds directly to these models, making it a suitable replacement for maintaining or restoring A/C performance.

Common Issues Addressed by the TYC 97123 Evaporator Core

• Reduced cabin cooling due to clogged or damaged evaporator core
• Refrigerant leaks caused by corroded or cracked core tubes
• Unpleasant odors from mold or debris buildup inside the evaporator
• Inconsistent airflow or temperature fluctuations in the HVAC system
• System inefficiency resulting in increased compressor workload

Installation Notes and Tips

When installing the TYC 97123 evaporator core, ensure the HVAC system is fully evacuated and the refrigerant is properly recovered according to environmental regulations. Verify that the threaded inlet and outlet fittings are clean and free of debris before connecting. Proper sealing and torque specifications should be followed to prevent leaks. It is recommended to inspect related components such as the expansion valve and blower motor during replacement to ensure overall system reliability.

Quality Assurance and Warranty

TYC manufactures the 97123 evaporator core to meet or exceed OEM standards for fit, form, and function. Each unit undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, TYC products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
