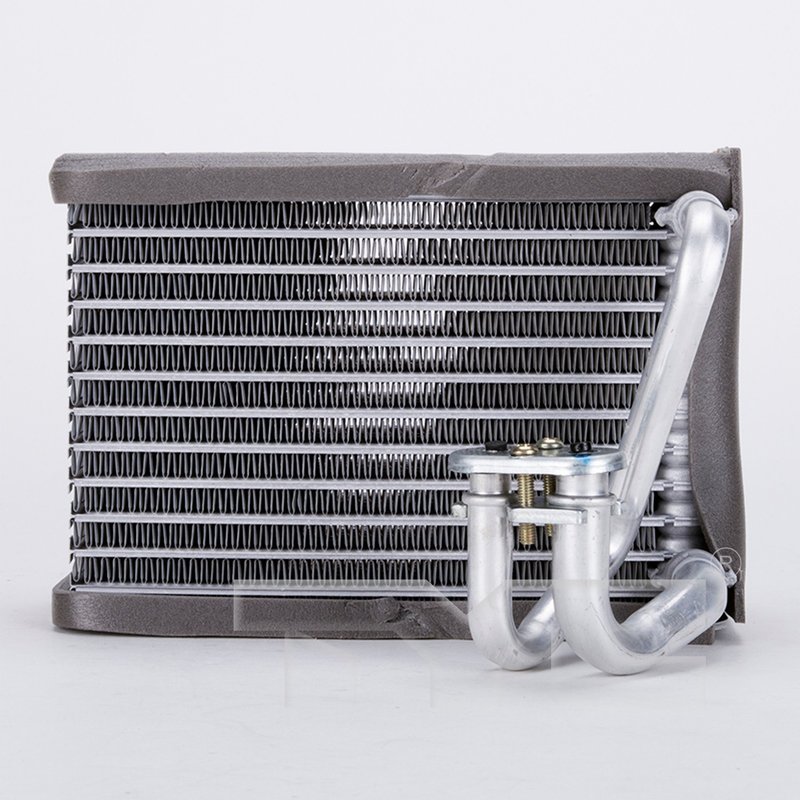

TYC 97147 A/C Evaporator Core - Rear

Brand	TYC 97147
Position	Rear
Configuration	Tube & fin
Core Height	5.75
Core Length	7.87
Core Thickness	2.36
Inlet Diameter	0.46
Inlet Fitting Design	Block
Outlet Diamter	0.57
Outlet Fitting Design	Block
Fits	Volvo · 34 vehicles

Tube & fin design. Promotes efficient heat transfer in the evaporator core.

Block fittings. Provide a secure connection at both refrigerant ports.

A/C evaporator core. Helps cool and dehumidify air in the HVAC system.

Cross-references Four Seasons 54849, UAC EV 939776PFC and Volvo 30767300-4 for the same application. See all 4.

$51.08Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all A/C Evaporator Core options

Rear A/C Evaporator Core for Volvo XC90

Restore rear cabin cooling performance with this TYC A/C evaporator core, part number 97147. It is built for the rear HVAC system in 2003-2014 Volvo XC90 models and uses a tube & fin configuration for direct replacement service.

Key Features

TYC A/C evaporator core, part number 97147
Tube & fin configuration for rear HVAC service
Core height: 5.75 in.
Core length: 7.87 in.
Core thickness: 2.36 in.
Inlet diameter: 0.46 in. with block fitting design
Outlet diameter: 0.57 in. with block fitting design
Compatible with 2003-2014 Volvo XC90 rear applications

Detailed Description

This TYC 97147 A/C evaporator core is specified for the rear position on 2003-2014 Volvo XC90 vehicles. The tube and fin construction, compact core dimensions, and block-style inlet and outlet fittings support a direct-fit replacement for the rear evaporator assembly in Volvo XC90 HVAC systems. This part cross-references Four Seasons 54849 for the same application.

For shoppers searching for a rear A/C evaporator core for Volvo XC90, Volvo XC90 rear evaporator replacement, or TYC 97147 evaporator core for 2003-2014 Volvo XC90, this part matches the listed fitment and dimensional specifications. It also cross-references UAC EV 939776PFC for the same application.

What It Helps Address

Weak or uneven rear cabin cooling
Refrigerant leakage at the evaporator core
Restricted airflow through a damaged core
Loss of A/C performance in the rear HVAC circuit
Replacement needs after corrosion or internal wear

Installation Notes and Tips

Verify rear-position fitment before ordering and compare the inlet and outlet block fittings to the original unit. Confirm core dimensions and line connection style against the removed evaporator core to ensure proper alignment in the Volvo XC90 rear HVAC housing. Professional A/C service practices are recommended, including system evacuation and recharge after component replacement.

Quality Assurance

TYC manufactures replacement HVAC components with application-specific dimensions and fitment data for direct replacement use. This part is listed for 2003-2014 Volvo XC90 rear applications and is supported by interchange references to help confirm selection.

This part fits 34 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Body Type	Liters	Cylinders	Position	Notes
2014	Volvo	XC90	3.2 R-Design	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2014	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2013	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2013	Volvo	XC90	3.2 R-Design	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2012	Volvo	XC90	Base	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2012	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2012	Volvo	XC90	3.2 R-Design	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2011	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2011	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2011	Volvo	XC90	Base	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2010	Volvo	XC90	Base	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2010	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2010	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2009	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2009	Volvo	XC90	3.2 R-Design	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2009	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2008	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2008	Volvo	XC90	V8 Sport	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2008	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2007	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2007	Volvo	XC90	3.2	Sport Utility	3.2L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2007	Volvo	XC90	V8 Sport	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2007	Volvo	XC90	2.5T	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2006	Volvo	XC90	2.5T	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2006	Volvo	XC90	V8 Ocean Race	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2006	Volvo	XC90	T6	Sport Utility	2.9L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2006	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2005	Volvo	XC90	2.5T	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2005	Volvo	XC90	T6	Sport Utility	2.9L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2005	Volvo	XC90	V8	Sport Utility	4.4L	V8	Rear	Tube and fin configuration - A/C Evaporator Core.
2004	Volvo	XC90	2.5T	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2004	Volvo	XC90	T6	Sport Utility	2.9L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
2003	Volvo	XC90	Base	Sport Utility	2.5L	L5	Rear	Tube and fin configuration - A/C Evaporator Core.
2003	Volvo	XC90	T6	Sport Utility	2.9L	L6	Rear	Tube and fin configuration - A/C Evaporator Core.
No rows match your filter.

Directly replaces or cross-references 4 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Four Seasons — 54849UAC — EV 939776PFCVolvo — 30767300-4Volvo — 31267858-4
