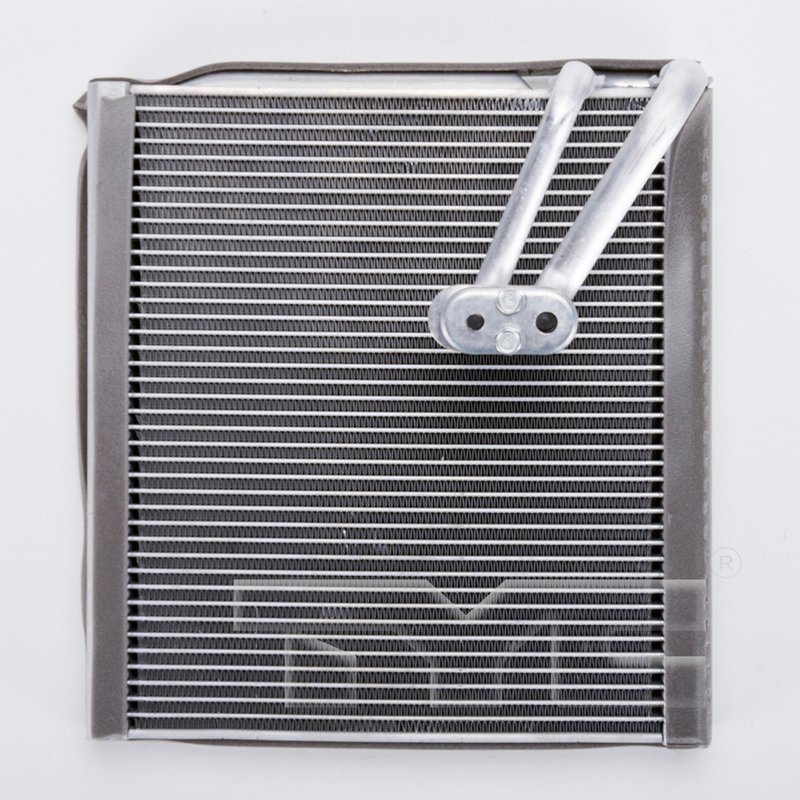

TYC 97186 A/C Evaporator Core

Reliable A/C Evaporator Core for Hyundai and Kia Models

The TYC 97186 A/C evaporator core is designed to restore efficient cooling performance in select Hyundai and Kia vehicles. Engineered with a parallel flow configuration, this evaporator core ensures optimal heat exchange and reliable operation for your vehicle's HVAC system.

• Core dimensions: 11.06 inches height, 10.43 inches length, 1.38 inches thickness
• Parallel flow configuration for effective refrigerant distribution
• Inlet diameter: 0.75 inches with block fitting design
• Outlet diameter: 0.83 inches with block fitting design
• Compatible with Hyundai Elantra, Elantra Coupe, Elantra GT, Kia Forte, Forte5, and Forte Koup

Detailed Product Features and Specifications

The TYC 97186 A/C evaporator core features a parallel flow design that enhances refrigerant flow and heat transfer efficiency. Measuring 11.06 inches in height, 10.43 inches in length, and 1.38 inches in thickness, this core fits precisely within the HVAC housing of compatible Hyundai and Kia models. The inlet and outlet ports utilize a block fitting design, with diameters of 0.75 inches and 0.83 inches respectively, ensuring secure connections to the vehicle’s refrigerant lines. This part is engineered to meet OEM specifications, providing consistent performance and durability.

Compatible Vehicles and Common Applications

This A/C evaporator core is compatible with the following vehicles:

• Hyundai Elantra (including Coupe and GT variants)
• Kia Forte, Forte5, and Forte Koup

It is designed to replace faulty or leaking evaporator cores that cause issues such as reduced cooling efficiency or refrigerant leaks.

Common Issues Addressed by the TYC 97186 Evaporator Core

• Insufficient cabin cooling or warm air blowing from vents
• Refrigerant leaks within the evaporator core
• Unusual odors caused by mold or debris buildup in the evaporator
• HVAC system freezing or inconsistent temperature regulation
• Reduced airflow due to clogged or damaged core fins

Installation Notes and Tips

Installation of the TYC 97186 evaporator core requires disassembly of the vehicle’s dashboard and HVAC housing. It is recommended to have the system evacuated and recharged by a certified technician to ensure proper refrigerant handling. Verify all fittings and connections are secure to prevent leaks. Inspect the surrounding HVAC components for damage or debris during installation.

Quality Assurance and Warranty Information

TYC manufactures this evaporator core to meet or exceed OEM standards for fit, form, and function. The part number 97186 is backed by TYC’s quality control processes to ensure reliable performance. Please refer to TYC’s warranty policy for specific coverage details.
