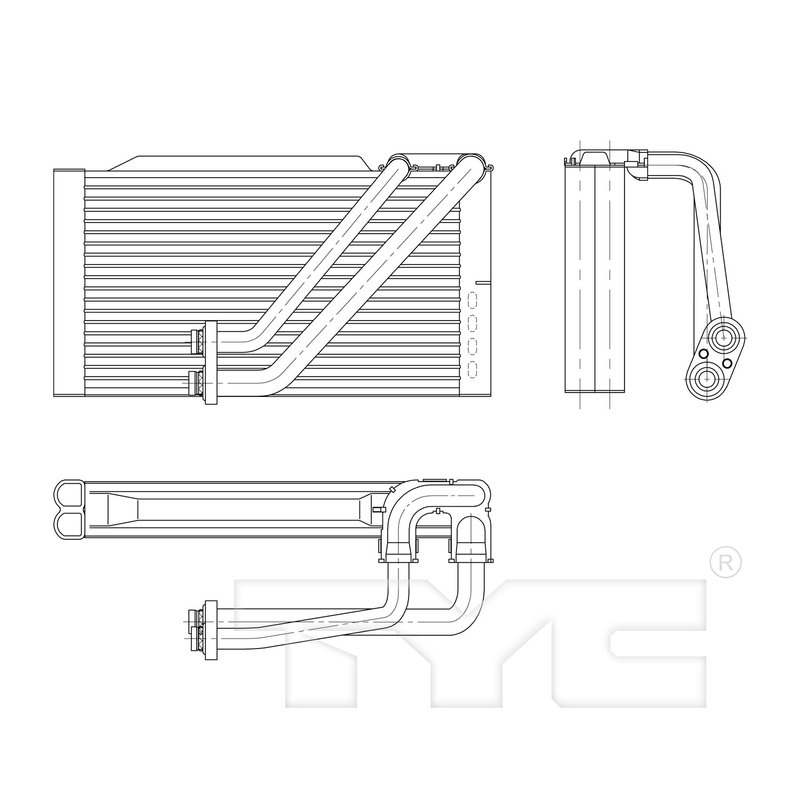

TYC 97187 A/C Evaporator Core - Rear

Overview of TYC A/C Evaporator Core 97187 for Hyundai Santa Fe Models

The TYC A/C Evaporator Core 97187 is designed specifically for Hyundai Santa Fe, Santa Fe Sport, and Santa Fe XL models. This parallel flow evaporator core ensures efficient cooling performance and reliable operation within your vehicle's HVAC system.

• Parallel flow configuration for optimized refrigerant flow
• Core dimensions: 5.28 inches height, 9.84 inches length, 1.38 inches thickness
• Inlet diameter of 0.75 inches with block fitting design
• Outlet diameter of 0.83 inches with block fitting design
• Compatible with Hyundai Santa Fe, Santa Fe Sport, and Santa Fe XL

Detailed Product Description and Specifications

The TYC A/C Evaporator Core 97187 features a parallel flow design that enhances heat exchange efficiency by allowing refrigerant to flow evenly through multiple channels. Measuring 5.28 inches in height, 9.84 inches in length, and 1.38 inches thick, this evaporator core fits precisely within the HVAC housing of Hyundai Santa Fe models. The inlet and outlet ports utilize a block fitting design, with diameters of 0.75 inches and 0.83 inches respectively, ensuring secure and leak-free connections to the vehicle’s refrigerant lines.

Compatible Vehicles and Common Applications

This evaporator core is compatible with the following Hyundai models:

• Hyundai Santa Fe
• Hyundai Santa Fe Sport
• Hyundai Santa Fe XL

It is intended for use in the vehicle’s air conditioning system to facilitate the absorption of heat from the cabin air, contributing to effective climate control.

Common Issues Addressed by Replacing the Evaporator Core

• Reduced cooling performance or warm air blowing from vents
• Refrigerant leaks causing A/C system inefficiency
• Unusual odors or moisture buildup inside the cabin
• Excessive condensation or water leaks under the dashboard
• HVAC system noise related to evaporator core damage

Installation Notes and Tips

• Ensure the vehicle is properly depressurized and refrigerant recovered before removal
• Verify the correct orientation of the evaporator core based on inlet and outlet fitting positions
• Inspect and replace any worn seals or O-rings during installation
• Follow manufacturer torque specifications for fittings to prevent leaks
• Test the A/C system for proper operation after installation

Quality Assurance and Warranty Information

TYC manufactures the 97187 A/C Evaporator Core to meet or exceed OEM specifications for fit, form, and function. This part undergoes rigorous quality control to ensure durability and reliable performance in Hyundai Santa Fe vehicles. Warranty coverage details should be confirmed with the point of purchase or TYC directly.
