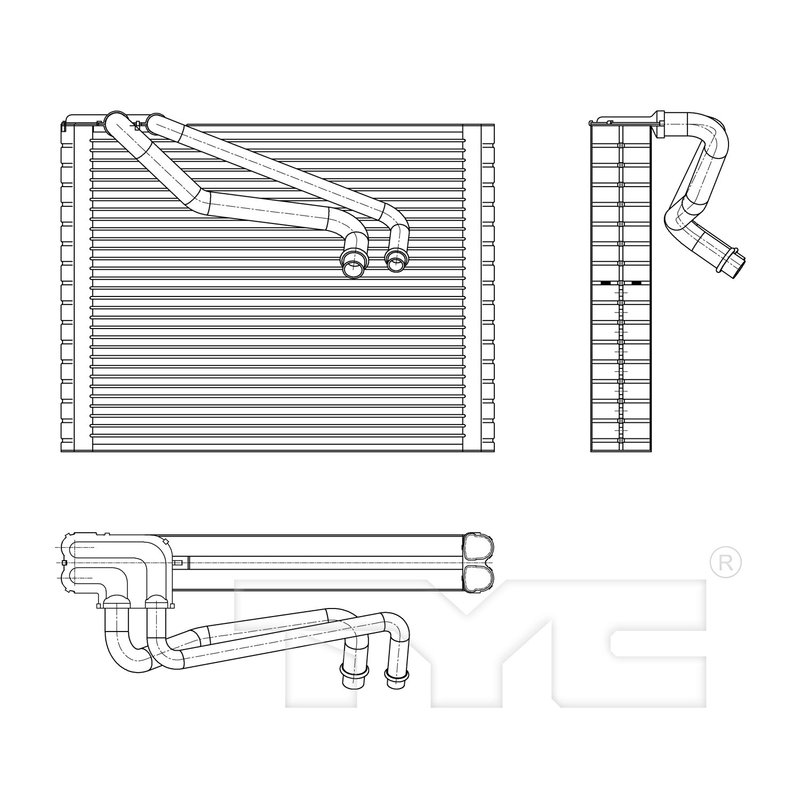

TYC 97190 A/C Evaporator Core

Overview of TYC A/C Evaporator Core 97190 for Fiat 500L and Jeep Compass

The TYC A/C Evaporator Core 97190 is designed specifically for select Fiat and Jeep models, including the Fiat 500L and Jeep Compass. This parallel flow evaporator core ensures efficient cooling performance and reliable operation within your vehicle's HVAC system.

• Core configuration: Parallel flow design for optimized refrigerant flow
• Core dimensions: 8.66 inches height, 11.61 inches length, 1.50 inches thickness
• Inlet diameter: 0.46 inches with block fitting design
• Outlet diameter: 0.57 inches with block fitting design
• Compatible with Fiat 500L and Jeep Compass models

Technical Details and Specifications

The TYC A/C Evaporator Core 97190 features a parallel flow configuration that enhances heat exchange efficiency by allowing refrigerant to flow evenly through multiple channels. The core measures 8.66 inches in height, 11.61 inches in length, and 1.50 inches in thickness, providing a compact yet effective cooling surface. Both the inlet and outlet fittings utilize a block design, with diameters of 0.46 inches and 0.57 inches respectively, ensuring secure and leak-resistant connections within the HVAC system.

Compatible Vehicles and Application

This evaporator core is compatible with the Fiat 500L and Jeep Compass, making it a suitable replacement part for maintaining or restoring the air conditioning system's performance in these vehicles. The part number 97190 corresponds directly to this application, ensuring proper fitment and function.

• Restores efficient cooling in Fiat 500L and Jeep Compass A/C systems
• Addresses issues such as reduced airflow or insufficient cabin cooling
• Replaces damaged or leaking evaporator cores
• Helps resolve refrigerant leaks within the evaporator
• Improves overall HVAC system reliability and comfort

Installation Notes and Tips

Installation of the TYC A/C Evaporator Core 97190 requires disassembly of the vehicle’s dashboard and HVAC housing. It is recommended to have the system evacuated and recharged by a certified technician to ensure proper refrigerant handling. Verify the inlet and outlet fitting sizes and designs before installation to confirm compatibility. Proper sealing and connection of the block fittings are essential to prevent leaks.

Quality Assurance and Warranty

TYC manufactures this evaporator core to meet or exceed OEM specifications for durability and performance. The part number 97190 undergoes quality control testing to ensure reliable operation within the HVAC system. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
