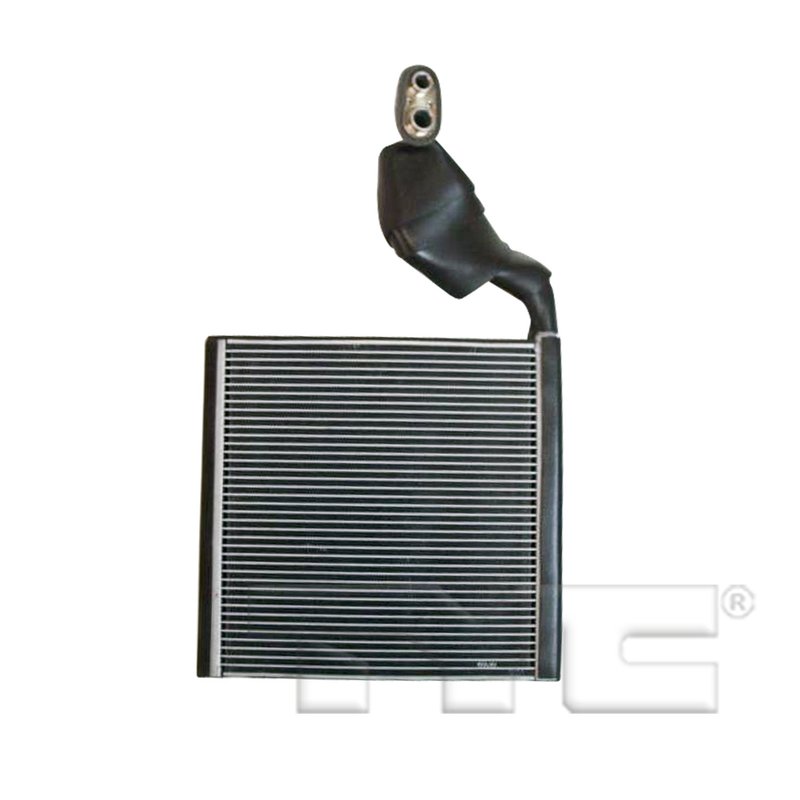

TYC 97209 A/C Evaporator Core

Reliable A/C Evaporator Core for Mazda 3, 6, and CX-5

The TYC 97209 A/C evaporator core is designed to restore efficient cooling performance in select Mazda vehicles. Engineered with a parallel flow configuration, this evaporator core ensures consistent airflow and optimal heat exchange for your Mazda 3, 6, or CX-5 models.

• Parallel flow configuration for improved heat transfer
• Core dimensions: 11.22 inches height and length, 1.77 inches thickness
• Inlet diameter of 0.45 inches with block-style fitting
• Outlet diameter of 0.72 inches with block-style fitting
• Compatible with Mazda 3, Mazda 6, and Mazda CX-5 models

Technical Details and Specifications

This TYC A/C evaporator core (part number 97209) features a parallel flow design that enhances refrigerant distribution and cooling efficiency. The core measures 11.22 inches in both height and length, with a thickness of 1.77 inches, providing a compact yet effective solution for your vehicle’s HVAC system. The inlet and outlet fittings use a block design, with diameters of 0.45 inches and 0.72 inches respectively, ensuring secure connections within the A/C system. These precise dimensions and fittings are engineered to match the OEM specifications for Mazda 3, 6, and CX-5 models, facilitating a proper fit and reliable operation.

Common Applications and Problem Resolution

• Restores cooling efficiency in Mazda 3, 6, and CX-5 A/C systems
• Replaces leaking or clogged evaporator cores causing reduced airflow
• Addresses unpleasant odors caused by mold or debris buildup
• Eliminates moisture accumulation and fogging inside the vehicle
• Resolves inconsistent cabin temperature and poor refrigerant flow

Installation Notes and Tips

When installing the TYC 97209 evaporator core, ensure the HVAC system is fully evacuated and the refrigerant properly recovered before removal. Verify the inlet and outlet block fittings align correctly with the vehicle’s A/C lines to prevent leaks. It is recommended to inspect and replace the cabin air filter and other related components during installation to maintain system integrity. Professional installation is advised to ensure compliance with safety and environmental regulations.

Quality Assurance and Warranty

TYC manufactures this evaporator core to meet or exceed OEM standards for durability and performance. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or TYC’s official documentation for exact warranty terms.
