Home› HVAC > A/C Condenser and Evaporator› TYC 97228 A/C Evaporator Core - Rear
TYC 97228 A/C Evaporator Core - RearOE Quality 60-Day Returns

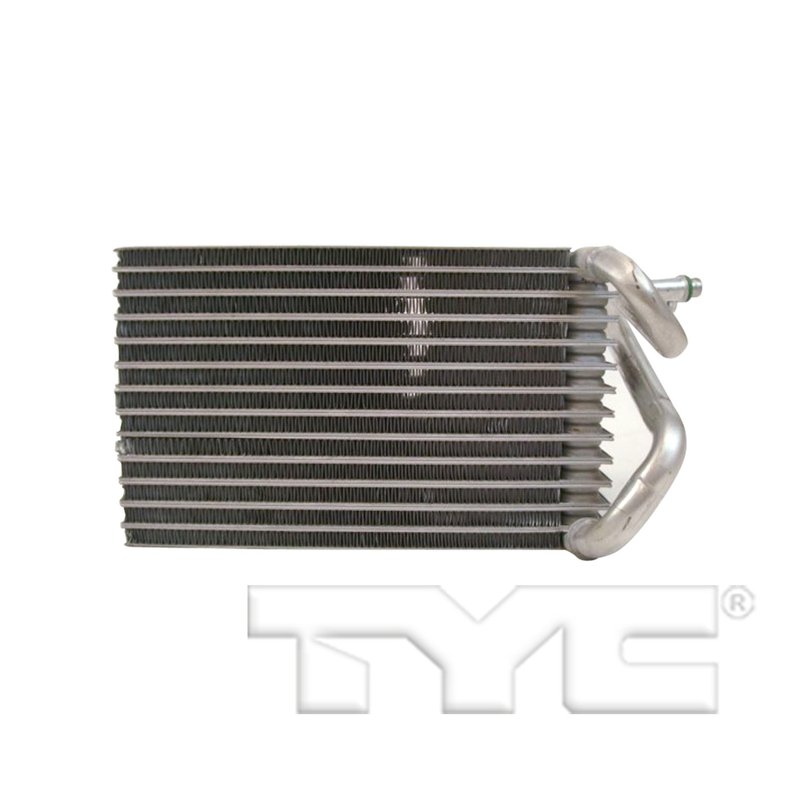

TYC 97228 A/C Evaporator Core - Rear - view 1
TYC 97228 A/C Evaporator Core - Rear - view 2
Part #: 97228

TYC 97228 A/C Evaporator Core - Rear

Rear
⚙️ 26 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$49.75Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chrysler and Dodge, Town & Country, Caravan, and Grand Caravan
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all A/C Evaporator Core options

Overview of TYC A/C Evaporator Core 97228

The TYC A/C Evaporator Core 97228 is designed specifically for Chrysler and Dodge vehicles, including the Caravan, Grand Caravan, and Town & Country models. This tube and fin evaporator core ensures efficient cooling performance and reliable operation within your vehicle's HVAC system.

  • Configuration: Tube & fin design for effective heat exchange
  • Core Dimensions: 5.63 inches height, 9.25 inches length, 2.56 inches thickness
  • Inlet Diameter: 0.46 inches with block fitting design
  • Outlet Diameter: 0.57 inches with block fitting design
  • Compatible with Chrysler Caravan, Dodge Grand Caravan, and Town & Country models

Detailed Product Description

The TYC A/C Evaporator Core 97228 features a tube and fin configuration that maximizes surface area for heat absorption, improving the air conditioning system's efficiency. Measuring 5.63 inches in height, 9.25 inches in length, and 2.56 inches in thickness, this core fits precisely within the HVAC housing of compatible Chrysler and Dodge minivans. The inlet and outlet fittings use a block design, with diameters of 0.46 inches and 0.57 inches respectively, ensuring secure connections to the vehicle’s refrigerant lines. This part number 97228 is engineered to meet OEM specifications, providing a direct replacement for worn or damaged evaporator cores in the specified models.

Common Applications and Issues Addressed

  • Restores proper cooling performance in Chrysler Caravan and Dodge Grand Caravan A/C systems
  • Eliminates refrigerant leaks caused by damaged or corroded evaporator cores
  • Resolves reduced airflow or inconsistent cabin temperature in Town & Country models
  • Prevents moisture buildup and associated odors inside the HVAC system
  • Addresses evaporator core blockages that impair air conditioning efficiency

Installation Notes and Tips

  • Ensure compatibility with Chrysler Caravan, Dodge Grand Caravan, or Town & Country before installation
  • Properly evacuate and recover refrigerant from the A/C system prior to removal
  • Handle the evaporator core carefully to avoid damage to the fins and tubes
  • Inspect and replace any worn seals or O-rings during installation to prevent leaks
  • Test the A/C system for leaks and proper operation after installation

Quality Assurance and Warranty

TYC manufactures the A/C Evaporator Core 97228 to meet or exceed OEM standards for fit, form, and function. This part undergoes rigorous quality control to ensure durability and reliable performance in Chrysler and Dodge vehicles. Warranty coverage details should be confirmed at the point of purchase, but TYC typically offers limited warranties covering defects in materials and workmanship.

BrandTYC
Part Number97228
ConfigurationTube & Fin
Core Height5.63
Core Length9.25
Core Thickness2.56
Inlet Diameter0.46
Inlet Fitting DesignBLOCK
Outlet Diamter0.57
Outlet Fitting DesignBLOCK

This part fits 26 vehicles. Search below:

YearMakeModelSubmodelBody TypeLitersCylindersPositionNotes
2007ChryslerTown & CountryLXMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2007ChryslerTown & CountryLimitedMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2007ChryslerTown & CountryBaseMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007ChryslerTown & CountryTouringMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2007ChryslerTown & CountryLXMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeCaravanBaseMini Cargo Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeCaravanSXTMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeCaravanSEMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeCaravanC/VMini Cargo Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeCaravanSEMini Passenger Van2.4LL4RearTube and fin configuration - A/C Evaporator Core.
2007DodgeGrand CaravanSEMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeGrand CaravanBaseMini Cargo Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2007DodgeGrand CaravanSXTMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2006ChryslerTown & CountryTouringMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2006ChryslerTown & CountryLXMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2006ChryslerTown & CountryLXMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006ChryslerTown & CountryLimitedMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.
2006ChryslerTown & CountryBaseMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeCaravanC/VMini Cargo Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeCaravanSXTMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeCaravanSEMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeCaravanBaseMini Cargo Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeCaravanSEMini Passenger Van2.4LL4RearTube and fin configuration - A/C Evaporator Core.
2006DodgeGrand CaravanBaseMini Cargo Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeGrand CaravanSEMini Passenger Van3.3LV6RearTube and fin configuration - A/C Evaporator Core.
2006DodgeGrand CaravanSXTMini Passenger Van3.8LV6RearTube and fin configuration - A/C Evaporator Core.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

5183207AC

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
