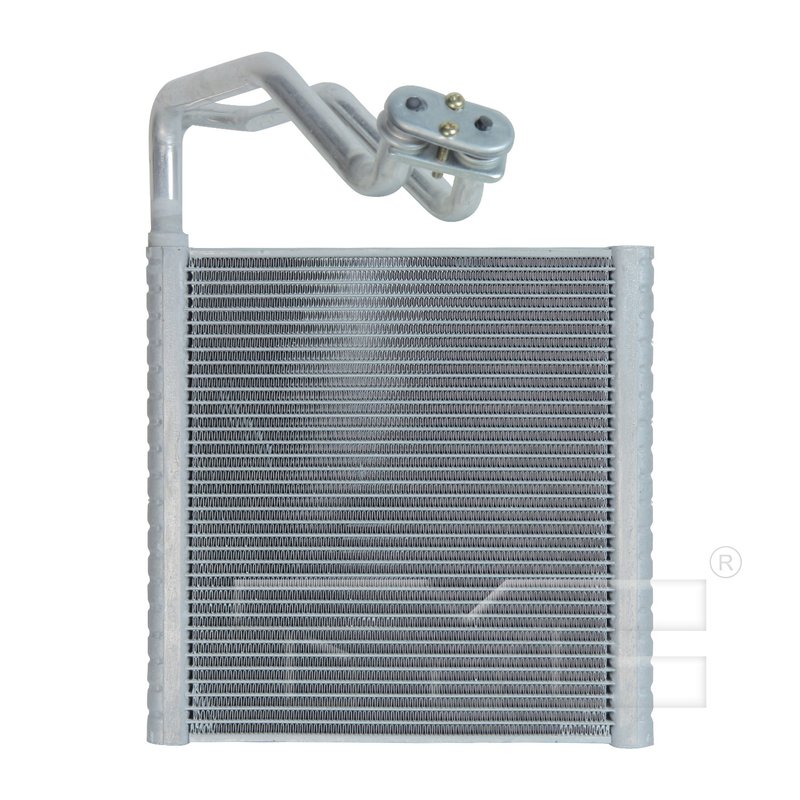

TYC 97232 A/C Evaporator Core

TYC 97232 A/C Evaporator Core

TYC 97232 is an A/C evaporator core built for HVAC service on select Ford Super Duty trucks. It uses a parallel flow configuration and OE-style block inlet and outlet fittings for a direct replacement approach in the climate control system.

Compatible with 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty, this evaporator core is sized for the listed application and supports proper refrigerant flow through the cabin cooling circuit.

Key Features

• Parallel flow evaporator core design
• Core height: 10.12 in.
• Core length: 10.04 in.
• Core thickness: 1.50 in.
• Inlet diameter: 0.46 in. with block fitting design
• Outlet diameter: 0.63 in. with block fitting design
• Direct-fit HVAC service part for select Ford Super Duty applications

Detailed Description

TYC 97232 is an A/C evaporator core engineered for the HVAC system in 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty models with air conditioning. The parallel flow construction supports efficient refrigerant passage through the evaporator assembly, while the block-style inlet and outlet fittings match the listed application requirements. The compact core dimensions help ensure proper fit within the factory HVAC housing. This part cross-references Ford BC3Z 19860 G for the same application.

What It Helps Address

• Weak or inconsistent cabin cooling
• Refrigerant flow restriction in the evaporator circuit
• Leaks or corrosion in the original evaporator core
• HVAC performance loss in Ford F-250 Super Duty and Ford F-350 Super Duty trucks
• Service replacement for a damaged A/C evaporator core

Installation Notes and Tips

Verify the vehicle’s HVAC configuration, inlet and outlet fitting style, and core dimensions before installation. This part is listed for 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty with A/C and parallel flow configuration. Proper evacuation, leak checking, and system recharge are required after evaporator replacement.

Quality Assurance

TYC manufactures replacement HVAC components for OE-style service applications. Cross-reference numbers for this part include Four Seasons 64063 and UAC EV 939932PFXC.
