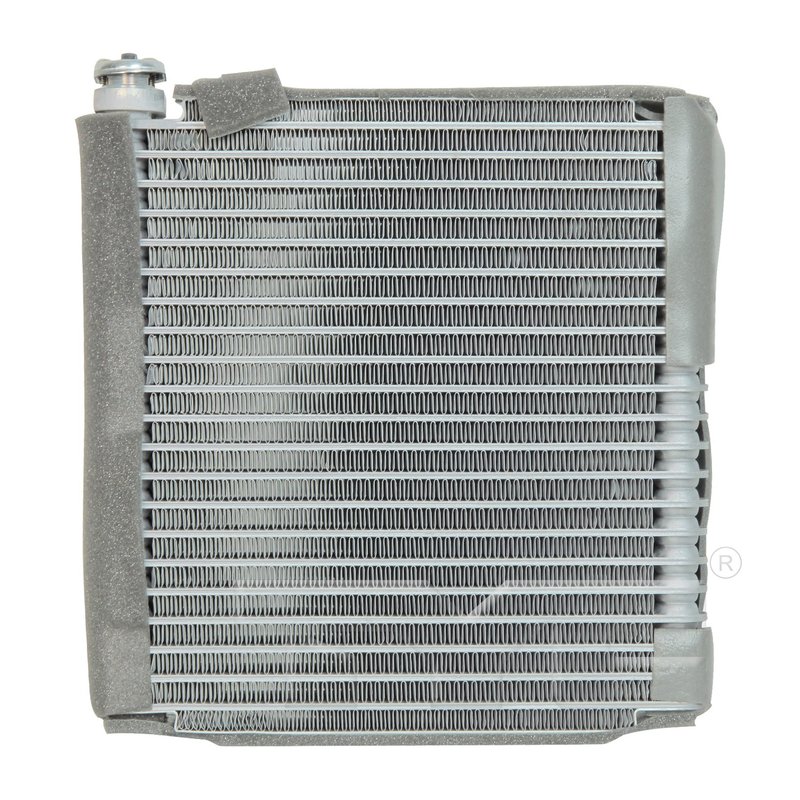

TYC 97294 A/C Evaporator Core

Brand	TYC 97294
Configuration	Tube & fin
Core Height	9.13
Core Length	8.86
Core Thickness	1.97
Inlet Diameter	0.61
Inlet Fitting Design	Block
Outlet Diamter	0.61
Outlet Fitting Design	Block
Fits	Mazda · 49 vehicles

Tube and fin design. Promotes efficient heat transfer in the evaporator core.

Block fittings. Simplify refrigerant line connection at the evaporator core.

Cross-references Mazda BPYK-61-J1Z, Mazda CC43-61-J10 and UAC EV 939758PFC for the same application. See all 3.

$53.44Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all A/C Evaporator Core options

TYC 97294 A/C Evaporator Core for Mazda 3 and Mazda 5

TYC 97294 is an A/C evaporator core built in a tube and fin configuration for select Mazda applications. It is a direct-fit HVAC service part for Mazda 3 and Mazda 5 models, with OE-style block inlet and outlet fittings sized at 0.61 in. for straightforward system integration.

Key Features

Tube and fin A/C evaporator core construction
Core height: 9.13 in.
Core length: 8.86 in.
Core thickness: 1.97 in.
Inlet diameter: 0.61 in. with block fitting design
Outlet diameter: 0.61 in. with block fitting design
Fits 2004-2009 Mazda 3, N/A
Fits 2006-2010 Mazda 5, N/A
Fits 2012-2015 Mazda 5, N/A

Detailed Description

This TYC 97294 evaporator core is engineered for HVAC repair on Mazda 3 and Mazda 5 vehicles that use a tube and fin A/C evaporator core. The compact core dimensions and block-style inlet and outlet fittings support a direct replacement approach for the factory evaporator assembly. This part cross-references Mazda OE numbers BPYK-61-J1Z and CC43-61-J10 for the same application.

Compatible With 2004-2009 Mazda 3, N/A; 2006-2010 Mazda 5, N/A; and 2012-2015 Mazda 5, N/A. TYC 97294 is also cross-referenced to UAC EV 939758PFC for the same application. Use this evaporator core when servicing the air conditioning system on Mazda 3 and Mazda 5 models that require the listed tube and fin configuration.

What It Helps Address

Loss of cabin cooling performance from a leaking or restricted evaporator core
Weak airflow temperature control in the HVAC system
Refrigerant loss caused by internal evaporator damage
Moisture-related HVAC performance issues tied to a failing core
Service replacement needs on Mazda 3 and Mazda 5 A/C systems

Installation Notes and Tips

Verify the vehicle year, model, and HVAC configuration before ordering. Confirm the inlet and outlet fitting style, core dimensions, and tube and fin layout against the original part. Proper A/C service procedures, including evacuation and recharge, are required after evaporator replacement. Inspect related seals, lines, and system components during installation to help prevent repeat leaks.

Quality Assurance

TYC manufactures replacement HVAC components for vehicle-specific applications, and this evaporator core is built to match the listed Mazda fitments and OE-style connection points.

This part fits 49 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Body Type	Liters	Cylinders	Position	Notes
2015	Mazda	5	Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2015	Mazda	5	Grand Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2015	Mazda	5	Sport	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2014	Mazda	5	Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2014	Mazda	5	Sport	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2014	Mazda	5	Grand Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2013	Mazda	5	Sport	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2013	Mazda	5	Grand Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2013	Mazda	5	Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2012	Mazda	5	Grand Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2012	Mazda	5	Sport	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2012	Mazda	5	Touring	Mini Passenger Van	2.5L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2010	Mazda	5	Sport	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2010	Mazda	5	Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2010	Mazda	5	Grand Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	3	i	Sedan	2.0L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	3	S	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	3	Mazdaspeed	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	3	S	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	5	Sport	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	5	Grand Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2009	Mazda	5	Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	3	S	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	3	S	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	3	i	Sedan	2.0L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	3	Mazdaspeed	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	5	Sport	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	5	Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2008	Mazda	5	Grand Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	3	S	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	3	Mazdaspeed	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	3	i	Sedan	2.0L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	3	S	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	5	Grand Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	5	Sport	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2007	Mazda	5	Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2006	Mazda	3	S	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2006	Mazda	3	S	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2006	Mazda	3	i	Sedan	2.0L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2006	Mazda	5	Touring	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2006	Mazda	5	Sport	Mini Passenger Van	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2005	Mazda	3	S	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2005	Mazda	3	S	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2005	Mazda	3	SP23	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2005	Mazda	3	SP23	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2005	Mazda	3	i	Sedan	2.0L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2004	Mazda	3	S	Hatchback	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2004	Mazda	3	S	Sedan	2.3L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
2004	Mazda	3	i	Sedan	2.0L	L4	N/A	Tube and fin configuration - A/C Evaporator Core.
No rows match your filter.

Directly replaces or cross-references 3 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Mazda — BPYK-61-J1ZMazda — CC43-61-J10UAC — EV 939758PFC
