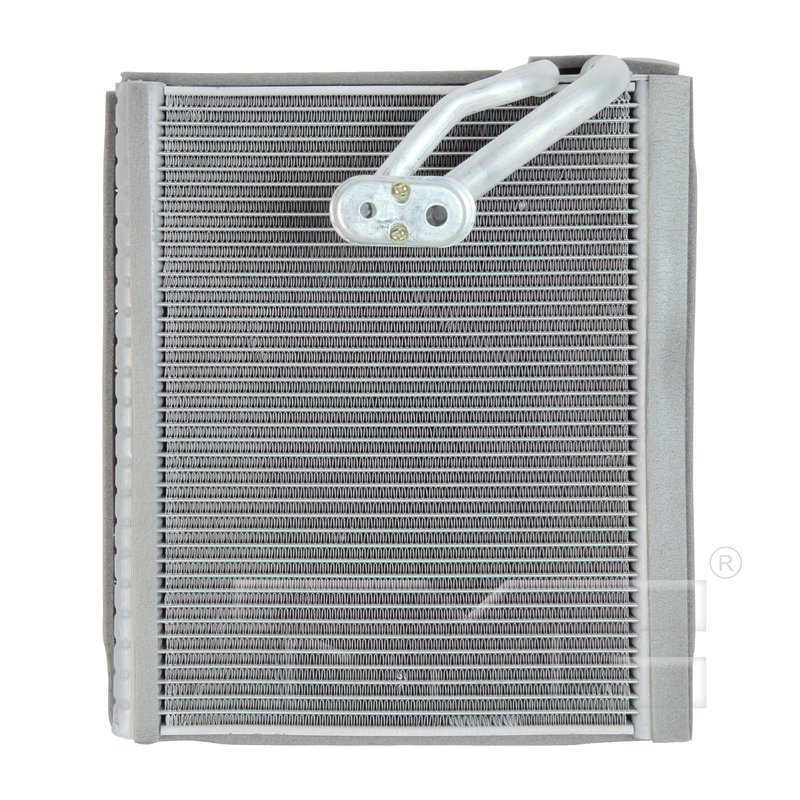

TYC 97296 A/C Evaporator Core - Front

TYC 97296 A/C Evaporator Core

TYC 97296 is a parallel flow A/C evaporator core built for HVAC service on select Ram ProMaster and Dodge Journey applications. It is specified with block-style inlet and outlet fittings and compact core dimensions for direct-fit replacement work.

Key Features

• Parallel flow configuration for efficient refrigerant heat transfer
• Core height: 11.34 in.
• Core length: 10.04 in.
• Core thickness: 1.50 in.
• Inlet diameter: 0.46 in. with block fitting design
• Outlet diameter: 0.63 in. with block fitting design
• TYC part number 97296 for HVAC replacement lookup

Detailed Description

This A/C evaporator core is engineered for vehicles that use a parallel flow evaporator layout, helping restore proper cabin cooling performance when the original unit is leaking, restricted, or no longer transferring heat effectively. Compatible With 2014-2022 Ram ProMaster 1500, 2014-2022 Ram ProMaster 2500, 2014-2022 Ram ProMaster 3500, and 2014-2020 Dodge Journey, front, this TYC 97296 evaporator core matches the listed application details for HVAC repair. This part cross-references Dodge 68153946AA for the same application.

What It Is Used For

• Replacing a leaking evaporator core in the dash HVAC system
• Restoring weak or inconsistent cabin air conditioning output
• Addressing refrigerant loss caused by internal corrosion or damage
• Correcting poor cooling performance in Ram ProMaster and Dodge Journey HVAC systems
• Supporting repair of restricted airflow through the evaporator assembly

Installation Notes and Tips

Verify the parallel flow configuration, inlet and outlet block fittings, and core dimensions before installation. Confirm vehicle application by year, model, and position: Fits 2014-2022 Ram ProMaster 1500, N/A; Fits 2014-2022 Ram ProMaster 2500, N/A; Fits 2014-2022 Ram ProMaster 3500, N/A; Fits 2014-2020 Dodge Journey, Front. Proper evacuation, leak checking, and system recharge are required after evaporator replacement. TYC 97296 should be matched to the existing HVAC layout before disassembly.

Quality Assurance

TYC manufactures replacement HVAC components with application-specific fitment and dimensional specifications to support accurate service replacement. Part number 97296 is listed with OE and aftermarket cross-reference coverage for streamlined lookup during repair planning.
