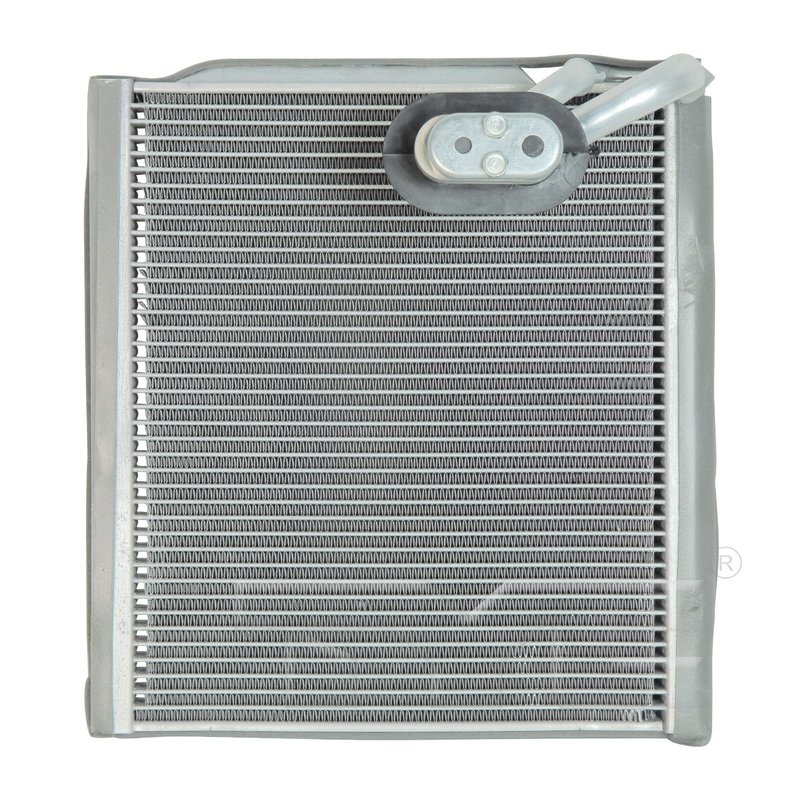

TYC 97306 A/C Evaporator Core

Overview of TYC A/C Evaporator Core 97306 for Hyundai Sonata

The TYC A/C Evaporator Core 97306 is designed specifically for Hyundai Sonata models, providing reliable performance in your vehicle's HVAC system. Featuring a parallel flow configuration, this evaporator core ensures efficient heat exchange and consistent cabin cooling.

• Parallel flow configuration for optimized airflow
• Core dimensions: 11.10 inches height, 10.43 inches length, 1.38 inches thickness
• Inlet diameter of 0.75 inches with block fitting design
• Outlet diameter of 0.83 inches with block fitting design
• Compatible with Hyundai Sonata HVAC systems

Detailed Product Description

The TYC A/C Evaporator Core 97306 is engineered to meet the specific HVAC requirements of Hyundai Sonata vehicles. Its parallel flow design enhances refrigerant distribution, improving heat absorption and overall air conditioning efficiency. The core measures 11.10 inches in height, 10.43 inches in length, and 1.38 inches in thickness, dimensions that align precisely with the OEM specifications for a proper fit and function.

Both the inlet and outlet fittings feature a block design, with diameters of 0.75 inches and 0.83 inches respectively, ensuring secure connections within the HVAC system. This part number 97306 is manufactured to maintain the integrity of your vehicle’s air conditioning system, supporting consistent cabin comfort during operation.

Common Applications and Issues Addressed

• Replacement for malfunctioning or leaking evaporator cores in Hyundai Sonata models
• Resolves insufficient cabin cooling due to evaporator core blockages or damage
• Addresses refrigerant leaks that reduce A/C system efficiency
• Helps restore proper airflow and temperature regulation inside the vehicle
• Prevents moisture buildup and associated odors within the HVAC system

Installation Notes and Tips

When installing the TYC A/C Evaporator Core 97306, ensure the HVAC system is fully evacuated and depressurized before removal of the old core. Verify that the inlet and outlet block fittings align correctly with the vehicle’s existing connections to avoid leaks. It is recommended to inspect and replace the cabin air filter and other related components during installation to maintain optimal system performance.

Quality Assurance and Warranty

TYC manufactures the 97306 A/C Evaporator Core to meet industry standards for durability and performance. While specific warranty details are not provided, TYC parts typically undergo rigorous quality control to ensure compatibility and reliability for Hyundai Sonata vehicles. Always consult product documentation or the manufacturer for warranty information.
