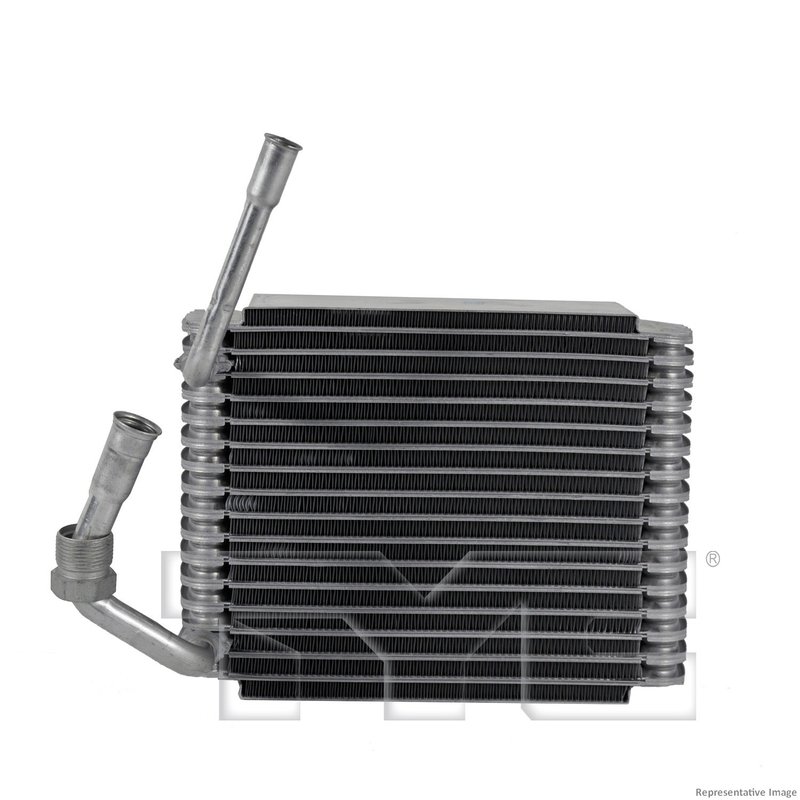

TYC 97343 A/C Evaporator Core - Front

Overview of TYC A/C Evaporator Core 97343

The TYC A/C Evaporator Core 97343 is designed for efficient climate control in select BMW models. Featuring a parallel flow configuration, this evaporator core ensures optimal cooling performance and reliable operation without auto start/stop functionality.

• Parallel flow configuration for improved refrigerant flow
• Core dimensions: 11.85 inches height, 9.65 inches length, 1.89 inches thickness
• Inlet diameter of 0.46 inches with block fitting design
• Outlet diameter of 0.69 inches with block fitting design
• Compatible with multiple BMW models including 528i, 535i, 550i, 640i, 740Li, M5, and M6

Technical Specifications and Features

This TYC A/C Evaporator Core 97343 is engineered with a parallel flow design that enhances refrigerant distribution and heat exchange efficiency. The core measures 11.85 inches in height, 9.65 inches in length, and 1.89 inches in thickness, providing a precise fit for the HVAC system. Both the inlet and outlet fittings utilize a block design, with diameters of 0.46 inches and 0.69 inches respectively, ensuring secure connections and compatibility with the vehicle’s existing A/C lines. This unit is specified without auto start/stop capability, aligning with the HVAC requirements of the compatible BMW models.

Compatible BMW Models

This evaporator core is compatible with a wide range of BMW vehicles, including but not limited to the 528i, 528i xDrive, 530i, 535d, 535i, 550i, 640i, 650i, 740i, 750i, 760Li, ActiveHybrid 5, M5, and M6 series. It supports various body styles such as Gran Coupe and xDrive variants, making it suitable for owners seeking a direct replacement part for their factory HVAC system.

Common Applications and Problem Resolution

• Restores proper cooling performance in BMW HVAC systems
• Resolves issues related to insufficient cabin cooling or warm air circulation
• Addresses refrigerant flow blockages caused by damaged or clogged evaporator cores
• Eliminates moisture buildup and associated odors within the HVAC system
• Prevents compressor strain due to inefficient heat exchange

Installation Notes and Tips

Installation of the TYC A/C Evaporator Core 97343 requires disassembly of the vehicle’s dashboard and HVAC housing. It is recommended to have professional service experience or consult a certified technician for proper removal and replacement. Ensure all refrigerant is properly evacuated before beginning work. Verify that the inlet and outlet block fittings align correctly with the vehicle’s A/C lines to avoid leaks. After installation, perform a system pressure test and recharge the refrigerant to manufacturer specifications.

Quality Assurance and Warranty

TYC manufactures this evaporator core to meet or exceed OEM standards for fit, form, and function. The part number 97343 undergoes rigorous quality control to ensure durability and reliable performance in BMW HVAC systems. While specific warranty details may vary, TYC typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
