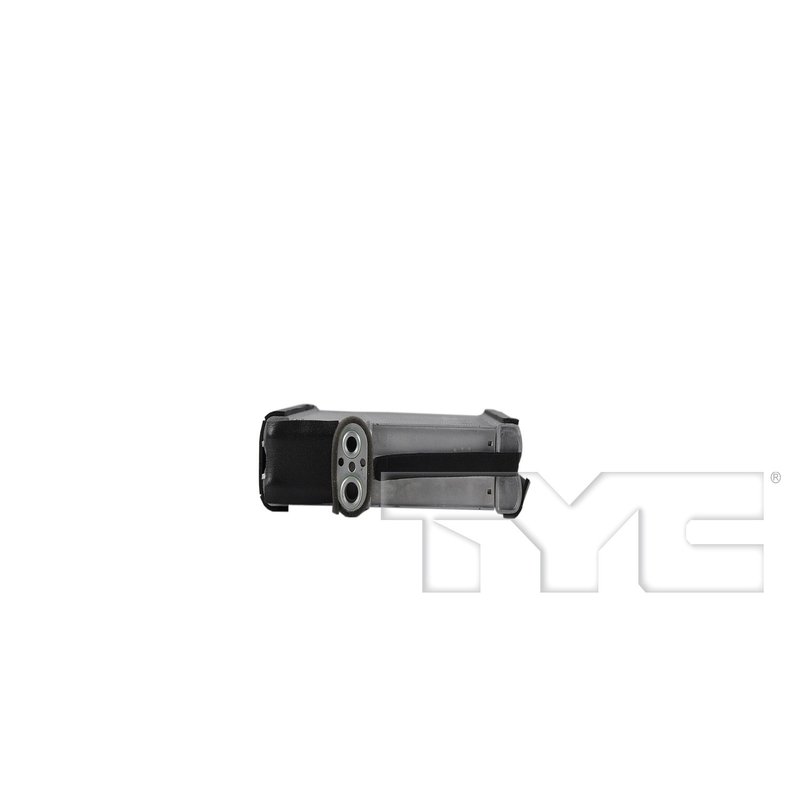

TYC 97384 A/C Evaporator Core

TYC 97384 A/C Evaporator Core

TYC 97384 is an A/C evaporator core for Ram truck HVAC systems that use a cross flow layout and block fitting connections. It is built to match the listed core dimensions and connection sizes for a direct replacement in select Ram 1500, Ram 1500 Classic, Ram 2500, and Ram 3500 applications.

Key Features

• Core height: 9.80 in.
• Core length: 8.86 in.
• Core thickness: 1.89 in.
• Cross flow configuration for the specified HVAC layout
• Block fitting inlet and outlet connections
• Inlet diameter: 15.45 mm
• Outlet diameter: 18.25 mm
• TYC part number 97384 for catalog and interchange lookup

Detailed Description

This evaporator core is specified for Ram HVAC service where the original unit uses the same cross flow design and block fitting connection style. The compact core dimensions and matched inlet and outlet sizes help support proper fitment in the dash HVAC assembly. TYC 97384 also cross-references Four Seasons 64065 and UAC EV939965PFC for the same application.

Compatible With 2012-2018 Ram 1500, 2012-2018 Ram 2500, 2012-2018 Ram 3500, and 2019-2022 Ram 1500 Classic. The part number 97384 is useful when verifying the correct evaporator core for Ram 1500 and Ram 2500/3500 HVAC repair work.

What It Helps Resolve

• Weak or inconsistent cabin cooling
• Refrigerant leaks at the evaporator core
• Restricted airflow through a damaged core
• HVAC performance loss from corrosion or internal blockage
• Fitment issues when replacing the original Ram evaporator core

Installation Notes and Tips

Confirm the vehicle’s HVAC connection style, core dimensions, and inlet/outlet diameters before installation. This evaporator core is listed with block fitting connections, so matching the original configuration is important for proper assembly in Ram 1500, Ram 2500, Ram 3500, and Ram 1500 Classic models. Always evacuate and recharge the A/C system according to service procedures after evaporator replacement.

Quality Assurance

TYC supplies replacement HVAC components built to match listed application data and dimensional specifications. Use the vehicle fitment details and part number 97384 to verify the correct replacement before service.
