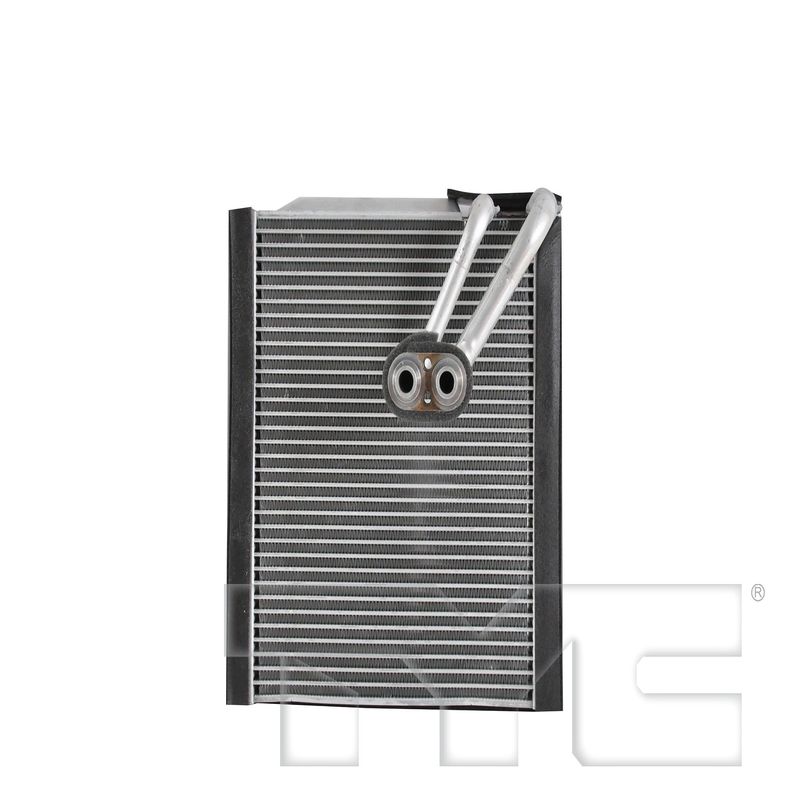

TYC 97417 A/C Evaporator Core
| Brand | TYC 97417 |
|---|---|
| Configuration | Cross flow |
| Core Height (in) | 9.61 |
| Core Length (in) | 9.65 |
| Core Thickness (in) | 1.77 |
| Inlet Connection Type | Block fitting |
| Inlet Diameter | 14.4mm |
| Outlet Connection Type | Block fitting |
| Outlet Diamter | 14.4mm |
| Fits | Hyundai and Kia · 11 vehicles |
Cross-flow design. Built with a compact core layout for HVAC replacement service.
Block fittings. Uses matching inlet and outlet connections for specification-based fitment.
Catalog match. TYC 97417 helps identify the correct evaporator core application.
Cross-references 97139-H9100 and EV 9409275PFC for the same application. See all 2.
Product Overview
TYC 97417 is an A/C evaporator core built for HVAC service on select compact cars. It is a direct-fit replacement for applications that use a cross-flow core with block fittings and 14.4 mm inlet and outlet connections.
Compatible With Kia Rio and Hyundai Accent applications, this evaporator core is specified for vehicles that match the listed fitment and connection layout. The compact core dimensions support a precise HVAC replacement where the original unit uses the same configuration.
Key Features
- Cross-flow evaporator core design for HVAC service
- Block fitting inlet and outlet connections
- 14.4 mm inlet and outlet diameters
- Compact core size for select small-car HVAC systems
- TYC part number 97417 for catalog matching
Detailed Description
TYC 97417 is an A/C evaporator core intended for vehicles with the listed HVAC configuration. The cross-flow layout, block fitting connections, and matching 14.4 mm inlet and outlet diameters make it a practical replacement when servicing the evaporator side of the air conditioning system. Use this part when the original core matches the same dimensions and connection style. This part cross-references 97139-H9100 and EV 9409275PFC for the same application.
Fits 2018-2023 Kia Rio, N/A. Fits 2018-2022 Hyundai Accent, N/A. TYC 97417 is cataloged for these applications, including Kia Rio and Hyundai Accent fitments across the listed model years.
Common Uses
- Restoring cabin cooling performance after evaporator core failure
- Replacing a leaking or corroded HVAC evaporator core
- Addressing restricted refrigerant flow through the evaporator
- Correcting poor air conditioning output caused by a damaged core
Installation Notes
Verify the original core dimensions, inlet and outlet connection type, and diameter before installation. This evaporator core is specified for applications with block fittings and a cross-flow configuration, so matching the factory layout is important for proper HVAC service. Confirm fitment against the vehicle’s build details before beginning the repair.
Quality Assurance
TYC supplies replacement HVAC components for service applications that require accurate fit and specification matching. Part number 97417 should be selected only when the vehicle’s evaporator core configuration matches the listed dimensions and connections.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Kia | Rio | S | Hatchback | 1.6L | L4 | — |
| 2022 | Hyundai | Accent | SE | Sedan | 1.6L | L4 | — |
| 2022 | Kia | Rio | L | Sedan | 1.6L | L4 | — |
| 2021 | Hyundai | Accent | GLS | Sedan | 1.6L | L4 | — |
| 2021 | Kia | Rio | LX Premium | Hatchback | 1.6L | L4 | — |
| 2020 | Hyundai | Accent | Essential | Hatchback | 1.6L | L4 | — |
| 2020 | Kia | Rio | LX | Sedan | 1.6L | L4 | — |
| 2019 | Hyundai | Accent | GLS | Hatchback | 1.6L | L4 | — |
| 2019 | Kia | Rio | LX | Sedan | 1.6L | L4 | — |
| 2018 | Hyundai | Accent | Mid | Sedan | 1.6L | L4 | — |
| 2018 | Kia | Rio | EX | Hatchback | 1.6L | L4 | — |
