URO 06B109477A Engine Timing Belt Tensioner
OE Quality 60-Day Returns
URO

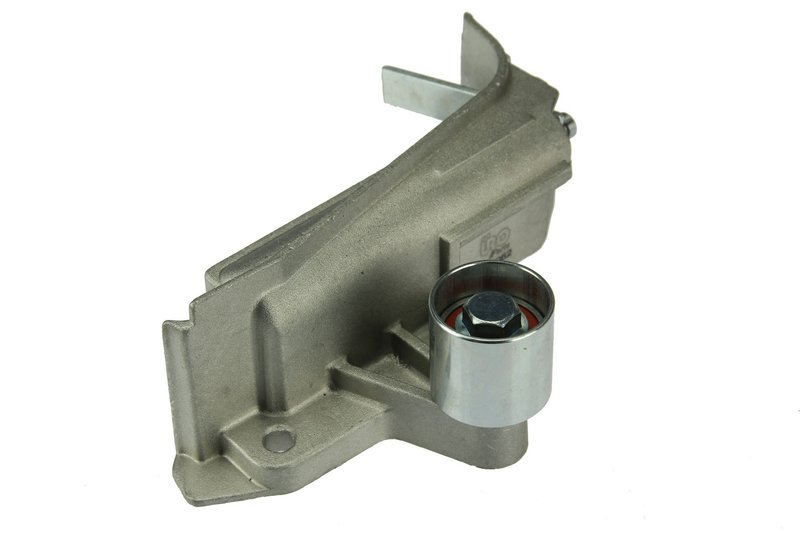

URO 06B109477A Engine Timing Belt Tensioner

Brand URO 06B109477A
Adjustable No
Contact Surface Smooth
Height 1.98
Height 50.3
Inside Diameter NA
Length 5.51
Length 140
Material Aluminum
Mounting Bracket Included Yes
Number of Mounting Holes 2
Outside Diameter NA
Pulley Included Yes
Pulley Outside Diameter 1.13
Pulley Outside Diameter 28.6
Pulley Quantity 1
Pulley Width 1.06
Pulley Width 27
Width 4.52
Width 82
Fits Audi and Volkswagen · 16 vehicles

OE dimensions. Manufactured for proper clearances and timing belt alignment.

Smooth aluminum construction. Built with a sealed bearing for low-friction, long-life operation.

Complete tensioner assembly. Includes a mounting bracket and pulley for easier installation.

Cross-references Dorman - OE Solutions 420-116, Gates T43028 and GMB 480-3317 for the same application. See all 11.

$54.64Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $54.64
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt Tensioner options

Engine Timing Belt Tensioner for Audi and Volkswagen

This URO engine timing belt tensioner, part number 06B109477A, is built for direct-fit service on select Audi A4, Audi A4 Quattro, and Volkswagen Passat applications. It is engineered around OE dimensions to support proper belt alignment and consistent tension in hydraulic tensioner systems with a roller.

  • Fits 2001-2006 Audi A4, hydraulic tensioner with roller
  • Fits 2001-2005 Audi A4 Quattro, hydraulic tensioner with roller
  • Fits 2001-2005 Volkswagen Passat, hydraulic tensioner with roller
  • Aluminum construction for strength and heat resistance
  • Mounted with a smooth-contact pulley and included mounting bracket
  • Sealed bearing for low-friction operation and contamination resistance
  • OE-style dimensions for proper clearances and timing belt tracking
  • High-quality NTN/NSK bearing for smooth rotation and long service life
  • 24 Month Unlimited Mileage Warranty

Fitment and Application Details

Part number 06B109477A is a hydraulic timing belt tensioner assembly with roller for 2001-2006 Audi A4, 2001-2005 Audi A4 Quattro, and 2001-2005 Volkswagen Passat models listed above. The aluminum housing, smooth pulley contact surface, and sealed bearing design support stable timing belt operation at engine speeds up to redline. This part cross-references Gates T43028 for the same application.

Common Problems This Part Can Help Address

  • Timing belt slack caused by a worn hydraulic tensioner
  • Belt tracking issues from incorrect pulley alignment
  • Noisy operation from a worn or contaminated bearing
  • Premature timing belt wear related to inconsistent tension
  • Heat- and vibration-related tensioner fatigue in high-mileage engines

Installation Notes and Tips

Verify engine code and existing tensioner style before installation. This part is specified for hydraulic tensioner applications with a roller, so confirm the mounting points and belt path match the original setup on your Audi A4, Audi A4 Quattro, or Volkswagen Passat. Inspect the timing belt, roller, and related wear components during service to maintain correct belt tension and alignment.

Quality Assurance

URO manufactures this tensioner to OE dimensions and equips it with a high-quality Japanese NTN/NSK bearing for smooth operation. The sealed bearing design helps resist lubricant contamination, and the part is backed by a 24 Month Unlimited Mileage Warranty.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2006AudiA4Cabriolet1.8LL4N/AHydraulic tensioner with roller.
2005AudiA4—1.8LL4N/AHydraulic tensioner with roller.
2005AudiA4 Quattro—1.8LL4N/AHydraulic tensioner with roller.
2005VolkswagenPassat—1.8LL4N/AHydraulic tensioner with roller.
2004AudiA4—1.8LL4N/AHydraulic tensioner with roller.
2004AudiA4 Quattro—1.8LL4N/AHydraulic tensioner with roller.
2004VolkswagenPassat—1.8LL4N/AHydraulic tensioner with roller.
2003AudiA4—1.8LL4N/AHydraulic tensioner with roller.
2003AudiA4 Quattro—1.8LL4N/AHydraulic tensioner with roller.
2003VolkswagenPassat—1.8LL4N/AHydraulic tensioner with roller.
2002AudiA4—1.8LL4N/AHydraulic tensioner with roller.
2002AudiA4 Quattro—1.8LL4N/AHydraulic tensioner with roller.
2002VolkswagenPassat—1.8LL4N/AHydraulic tensioner with roller.
2001AudiA4—1.8LL4N/AHydraulic tensioner with roller.
2001AudiA4 Quattro—1.8LL4N/AHydraulic tensioner with roller.
2001VolkswagenPassat—1.8LL4N/AHydraulic tensioner with roller.
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 420-116Gates — T43028GMB — 480-3317URO — 06B109477AVAICO — V10-0564024-1366079 54064 340079 54064 5001000200009BTVG501URO-012487
