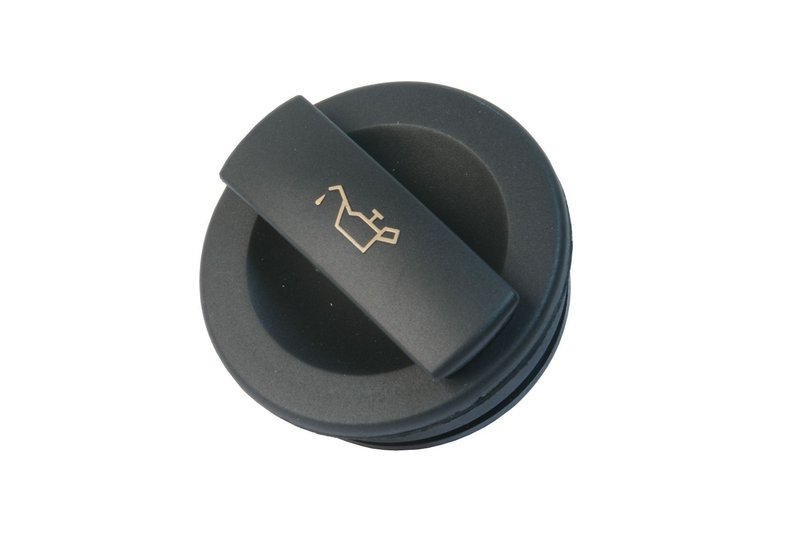

URO 06C103485N Engine Oil Filler Cap
| Brand | URO 06C103485N |
|---|---|
| Material | Pa66-gf30 |
| Attachment Method | Push on |
| Color/Finish | Black |
| Dipstick Included | No |
| Height (In) | 1.69 |
| Height (mm) | 42.82 |
| Neck Depth (In) | 0.97 |
| Neck Diameter (In) | 2.37 |
| Neck Diameter (mm) | 60.31 |
| Outside Diameter (In) | 2.68 |
| Outside Diameter (mm) | 67.98 |
| Fits | Audi and Volkswagen · 185 vehicles |
OE dimensions. Easy installation and an original engine compartment appearance.
Heat-resistant material. PA66-GF30 stands up to intense engine heat and oil vapor.
Push-on fit. Replaces cracked or broken factory oil filler caps.
Cross-references Rein CPL0019P, URO 06C103485N and VAICO V10-4238 for the same application. See all 19.
Engine Oil Filler Cap for Audi and Volkswagen
This URO engine oil filler cap is a direct OE-style replacement for vehicles that use part number 06C103485N. It is built for a secure push-on fit and restores a proper seal on Audi A4, A6, Q5, and Volkswagen Passat, Tiguan, and Touareg applications.
- OE dimensions for straightforward installation and factory-style appearance
- PA66-GF30 construction for heat and oil-vapor resistance
- Push-on attachment method for a secure fit
- Black finish to match the original engine bay look
- Replaces cracked, broken, or missing oil filler caps
- Helps stop oil leakage caused by a damaged cap seal
Product Details
The 06C103485N oil filler cap is manufactured to OE dimensions and uses PA66-GF30 material for durability in high-heat engine environments. Its 2.37-inch neck diameter, 2.68-inch outside diameter, and 1.69-inch height support a precise fit on the intended engine cover opening. This part number 06C103485N is commonly used on Audi A4, A6, A5, Q5, S4, S5, and Volkswagen CC, Eos, Tiguan, Touareg, Passat, Jetta, GTI, Beetle, and Golf R models with the listed fitments.
This part cross-references VAICO V10-4238 and Rein CPL0019P for the same application.
What It Helps Fix
- Oil seepage from a missing or damaged filler cap
- Cracked cap bodies from heat cycling
- Loose cap fitment that can allow vapor escape
- Loss of original engine bay appearance after cap failure
- Improper sealing at the oil fill opening
Installation Notes and Fitment
Compatible With 2002-2009 Audi A4, 2013-2016 Audi A4, 2002-2009 Audi A4 Quattro, 2013-2016 Audi A4 Quattro, 2008-2016 Audi A5 Quattro, 2010-2014 Audi A5, 2013-2016 Audi allroad, 2006-2014 Audi A6, 2002-2004 Audi A6, 2002-2015 Audi A6 Quattro, 2004-2012 Audi S4, 2010-2012 Audi S5, 2011-2016 Audi Q5, 2004-2006 Audi A8 Quattro, 2004-2005 Audi Allroad Quattro, 2003 Audi A8 Quattro, 2009-2016 Volkswagen CC, 2007-2016 Volkswagen Eos, 2009-2016 Volkswagen Tiguan, 2011-2016 Volkswagen Touareg, 2004-2007 Volkswagen Touareg, 2012-2014 Volkswagen Beetle, 2006 Volkswagen Beetle, 2012-2014 Volkswagen Passat, 2006-2010 Volkswagen Passat, 2012-2013 Volkswagen Golf R, 2005-2010 Volkswagen Jetta, and 2006-2008 Volkswagen GTI.
Before installation, confirm the neck diameter and OE part number match your original cap. The push-on design should seat fully without forcing; inspect the filler neck for debris or damage before installing. For 2006 Volkswagen Beetle applications, verify production date through 05/2006. For 2003 Audi A8 Quattro applications, verify chassis range from 4E-3-000001.
Quality Assurance
URO manufactures this cap to OE dimensions for a factory-style fit and original engine compartment appearance. It is backed by a 24 Month Unlimited Mileage Warranty.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Audi | A4 | — | — | — | N/A | — |
| 2016 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2016 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2016 | Audi | allroad | — | — | — | N/A | — |
| 2016 | Audi | Q5 | Hybrid Prestige | — | — | N/A | — |
| 2016 | Audi | Q5 | TDI Premium Plus | — | — | N/A | — |
| 2016 | Audi | Q5 | TDI Premium Plus S-Line | — | — | N/A | — |
| 2016 | Audi | Q5 | TDI Prestige | — | — | N/A | — |
| 2016 | Audi | Q5 | TDI Prestige S-Line | — | — | N/A | — |
| 2016 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2016 | Volkswagen | Eos | — | — | — | N/A | — |
| 2016 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2016 | Volkswagen | Touareg | — | 3.0L | V6 | N/A | — |
| 2015 | Audi | A4 | — | — | — | N/A | — |
| 2015 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2015 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2015 | Audi | A6 Quattro | — | 2.0L | L4 | N/A | — |
| 2015 | Audi | allroad | — | — | — | N/A | — |
| 2015 | Audi | Q5 | Hybrid Prestige | — | — | N/A | — |
| 2015 | Audi | Q5 | TDI Premium Plus | — | — | N/A | — |
| 2015 | Audi | Q5 | TDI Prestige | — | — | N/A | — |
| 2015 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2015 | Volkswagen | Eos | — | — | — | N/A | — |
| 2015 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2015 | Volkswagen | Touareg | — | 3.0L | V6 | N/A | — |
| 2014 | Audi | A4 | — | — | — | N/A | — |
| 2014 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2014 | Audi | A5 | — | — | — | N/A | — |
| 2014 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2014 | Audi | A6 | — | — | — | N/A | — |
| 2014 | Audi | A6 Quattro | — | 3.0L | V6 | N/A | — |
| 2014 | Audi | A6 Quattro | — | 2.0L | L4 | N/A | — |
| 2014 | Audi | allroad | — | — | — | N/A | — |
| 2014 | Audi | Q5 | Hybrid Prestige | — | — | N/A | — |
| 2014 | Audi | Q5 | TDI Premium Plus | — | — | N/A | — |
| 2014 | Audi | Q5 | TDI Prestige | — | — | N/A | — |
| 2014 | Volkswagen | Beetle | TDI | — | — | N/A | — |
| 2014 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2014 | Volkswagen | Eos | — | — | — | N/A | — |
| 2014 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2014 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2014 | Volkswagen | Touareg | — | — | — | N/A | — |
| 2013 | Audi | A4 | — | — | — | N/A | — |
| 2013 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2013 | Audi | A5 | — | — | — | N/A | — |
| 2013 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2013 | Audi | A6 | — | — | — | N/A | — |
| 2013 | Audi | A6 Quattro | — | 3.0L | V6 | N/A | — |
| 2013 | Audi | A6 Quattro | — | 2.0L | L4 | N/A | — |
| 2013 | Audi | allroad | — | — | — | N/A | — |
| 2013 | Audi | Q5 | — | 2.0L | L4 | N/A | — |
| 2013 | Volkswagen | Beetle | TDI | — | — | N/A | — |
| 2013 | Volkswagen | Beetle | Turbo | — | — | N/A | — |
| 2013 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2013 | Volkswagen | Eos | — | — | — | N/A | — |
| 2013 | Volkswagen | Golf R | — | — | — | N/A | — |
| 2013 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2013 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2013 | Volkswagen | Touareg | Hybrid | — | — | N/A | — |
| 2012 | Audi | A5 | — | — | — | N/A | — |
| 2012 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2012 | Audi | A6 | — | — | — | N/A | — |
| 2012 | Audi | A6 Quattro | — | 3.0L | V6 | N/A | — |
| 2012 | Audi | Q5 | — | 2.0L | L4 | N/A | — |
| 2012 | Audi | S4 | — | — | — | N/A | — |
| 2012 | Audi | S5 | — | 3.0L | V6 | N/A | — |
| 2012 | Volkswagen | Beetle | Turbo | — | — | N/A | — |
| 2012 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2012 | Volkswagen | Eos | — | — | — | N/A | — |
| 2012 | Volkswagen | Golf R | — | — | — | N/A | — |
| 2012 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2012 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2012 | Volkswagen | Touareg | Hybrid | — | — | N/A | — |
| 2011 | Audi | A5 | — | — | — | N/A | — |
| 2011 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2011 | Audi | A6 | — | — | — | N/A | — |
| 2011 | Audi | A6 Quattro | — | 3.0L | V6 | N/A | — |
| 2011 | Audi | Q5 | — | 2.0L | L4 | N/A | — |
| 2011 | Audi | S4 | — | — | — | N/A | — |
| 2011 | Audi | S5 | — | 3.0L | V6 | N/A | — |
| 2011 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2011 | Volkswagen | Eos | — | — | — | N/A | — |
| 2011 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2011 | Volkswagen | Touareg | Hybrid | — | — | N/A | — |
| 2010 | Audi | A5 | — | — | — | N/A | — |
| 2010 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2010 | Audi | A6 | — | — | — | N/A | — |
| 2010 | Audi | A6 Quattro | — | 3.0L | V6 | N/A | — |
| 2010 | Audi | S4 | — | — | — | N/A | — |
| 2010 | Audi | S5 | — | 3.0L | V6 | N/A | — |
| 2010 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2010 | Volkswagen | Eos | — | — | — | N/A | — |
| 2010 | Volkswagen | Jetta | TDI | — | — | N/A | — |
| 2010 | Volkswagen | Jetta | TDI Cup Edition | — | — | N/A | — |
| 2010 | Volkswagen | Jetta | Wolfsburg Edition | — | — | N/A | — |
| 2010 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2010 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2009 | Audi | A4 | Cabriolet | — | — | N/A | — |
| 2009 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2009 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2009 | Audi | A6 | — | — | — | N/A | — |
| 2009 | Audi | A6 Quattro | — | 3.0L | V6 | N/A | — |
| 2009 | Audi | S4 | — | — | — | N/A | — |
| 2009 | Volkswagen | CC | — | 2.0L | L4 | N/A | — |
| 2009 | Volkswagen | Eos | — | — | — | N/A | — |
| 2009 | Volkswagen | Jetta | GLI | — | — | N/A | — |
| 2009 | Volkswagen | Jetta | SEL | 2.0L | L4 | N/A | — |
| 2009 | Volkswagen | Jetta | TDI | — | — | N/A | — |
| 2009 | Volkswagen | Jetta | Wolfsburg Edition | — | — | N/A | — |
| 2009 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2009 | Volkswagen | Tiguan | — | — | — | N/A | — |
| 2008 | Audi | A4 | — | — | — | N/A | — |
| 2008 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2008 | Audi | A5 Quattro | — | — | — | N/A | — |
| 2008 | Audi | A6 | — | — | — | N/A | — |
| 2008 | Audi | A6 Quattro | — | 3.2L | V6 | N/A | — |
| 2008 | Audi | S4 | — | — | — | N/A | — |
| 2008 | Volkswagen | Eos | — | 2.0L | L4 | N/A | — |
| 2008 | Volkswagen | GTI | — | — | — | N/A | — |
| 2008 | Volkswagen | Jetta | — | 2.0L | L4 | N/A | — |
| 2008 | Volkswagen | Passat | — | — | — | N/A | — |
| 2007 | Audi | A4 | — | — | — | N/A | — |
| 2007 | Audi | A4 Quattro | — | — | — | N/A | — |
| 2007 | Audi | A6 | — | — | — | N/A | — |
| 2007 | Audi | A6 Quattro | — | 3.2L | V6 | N/A | — |
| 2007 | Audi | S4 | — | — | — | N/A | — |
| 2007 | Volkswagen | Eos | — | 2.0L | L4 | N/A | — |
| 2007 | Volkswagen | GTI | — | — | — | N/A | — |
| 2007 | Volkswagen | Jetta | — | 2.5L | L5 | N/A | — |
| 2007 | Volkswagen | Jetta | — | 2.0L | L4 | N/A | — |
| 2007 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2007 | Volkswagen | Touareg | — | 4.2L | V8 | N/A | — |
| 2006 | Audi | A4 | Base | — | — | N/A | — |
| 2006 | Audi | A4 Quattro | Avant | — | — | N/A | — |
| 2006 | Audi | A4 Quattro | Base | — | — | N/A | — |
| 2006 | Audi | A4 Quattro | Cabriolet | — | — | N/A | — |
| 2006 | Audi | A6 | — | — | — | N/A | — |
| 2006 | Audi | A6 Quattro | — | — | — | N/A | — |
| 2006 | Audi | A8 Quattro | Base | — | — | N/A | — |
| 2006 | Audi | A8 Quattro | L | 4.2L | V8 | N/A | — |
| 2006 | Audi | S4 | — | — | — | N/A | — |
| 2006 | Volkswagen | Beetle | — | 2.5L | L5 | N/A | Production Date Range: Through 05/2006 |
| 2006 | Volkswagen | GTI | — | — | — | N/A | — |
| 2006 | Volkswagen | Jetta | — | 2.5L | L5 | N/A | — |
| 2006 | Volkswagen | Jetta | — | 2.0L | L4 | N/A | — |
| 2006 | Volkswagen | Jetta | TDI | — | — | N/A | — |
| 2006 | Volkswagen | Passat | — | 2.0L | L4 | N/A | — |
| 2006 | Volkswagen | Touareg | — | 4.2L | V8 | N/A | — |
| 2005 | Audi | A4 | — | 3.0L | V6 | N/A | — |
| 2005 | Audi | A4 | — | 2.0L | L4 | N/A | — |
| 2005 | Audi | A4 Quattro | Avant | 3.0L | V6 | N/A | — |
| 2005 | Audi | A4 Quattro | Avant | 3.2L | V6 | N/A | — |
| 2005 | Audi | A4 Quattro | Avant | 2.0L | L4 | N/A | — |
| 2005 | Audi | A4 Quattro | Base | 3.0L | V6 | N/A | — |
| 2005 | Audi | A4 Quattro | Base | 3.2L | V6 | N/A | — |
| 2005 | Audi | A4 Quattro | Base | 2.0L | L4 | N/A | — |
| 2005 | Audi | A4 Quattro | Cabriolet | — | — | N/A | — |
| 2005 | Audi | A6 Quattro | — | — | — | N/A | — |
| 2005 | Audi | A8 Quattro | Base | — | — | N/A | — |
| 2005 | Audi | A8 Quattro | L | 4.2L | V8 | N/A | — |
| 2005 | Audi | Allroad Quattro | — | 4.2L | V8 | N/A | — |
| 2005 | Audi | S4 | — | — | — | N/A | — |
| 2005 | Volkswagen | Jetta | — | 2.5L | L5 | N/A | — |
| 2005 | Volkswagen | Jetta | TDI | — | — | N/A | — |
| 2005 | Volkswagen | Touareg | — | 4.2L | V8 | N/A | — |
| 2004 | Audi | A4 | — | 3.0L | V6 | N/A | — |
| 2004 | Audi | A4 Quattro | — | 3.0L | V6 | N/A | — |
| 2004 | Audi | A6 | — | — | — | N/A | — |
| 2004 | Audi | A6 Quattro | Avant | — | — | N/A | — |
| 2004 | Audi | A6 Quattro | Base | 3.0L | V6 | N/A | — |
| 2004 | Audi | A8 Quattro | — | — | — | N/A | — |
| 2004 | Audi | Allroad Quattro | — | 4.2L | V8 | N/A | — |
| 2004 | Audi | S4 | — | — | — | N/A | — |
| 2004 | Volkswagen | Touareg | — | 4.2L | V8 | N/A | — |
| 2003 | Audi | A4 | — | 3.0L | V6 | N/A | — |
| 2003 | Audi | A4 Quattro | — | 3.0L | V6 | N/A | — |
| 2003 | Audi | A6 | — | — | — | N/A | — |
| 2003 | Audi | A6 Quattro | Avant | — | — | N/A | — |
| 2003 | Audi | A6 Quattro | Base | 3.0L | V6 | N/A | — |
| 2003 | Audi | A8 Quattro | — | — | — | N/A | Chassis Range: From 4E-3-000001 |
| 2002 | Audi | A4 | — | 3.0L | V6 | N/A | — |
| 2002 | Audi | A4 Quattro | — | 3.0L | V6 | N/A | — |
| 2002 | Audi | A6 | — | — | — | N/A | — |
| 2002 | Audi | A6 Quattro | Avant | — | — | N/A | — |
| 2002 | Audi | A6 Quattro | Base | 3.0L | V6 | N/A | — |
| No rows match your filter. | |||||||
